Proaim P-OHCP-02 Manual
Read below 📖 the manual in Italian for Proaim P-OHCP-02 (11 pages) in the Tripod category. This guide has been helpful for 2 people and has been rated 4.5 stars on average by 2 users
Page 1/11

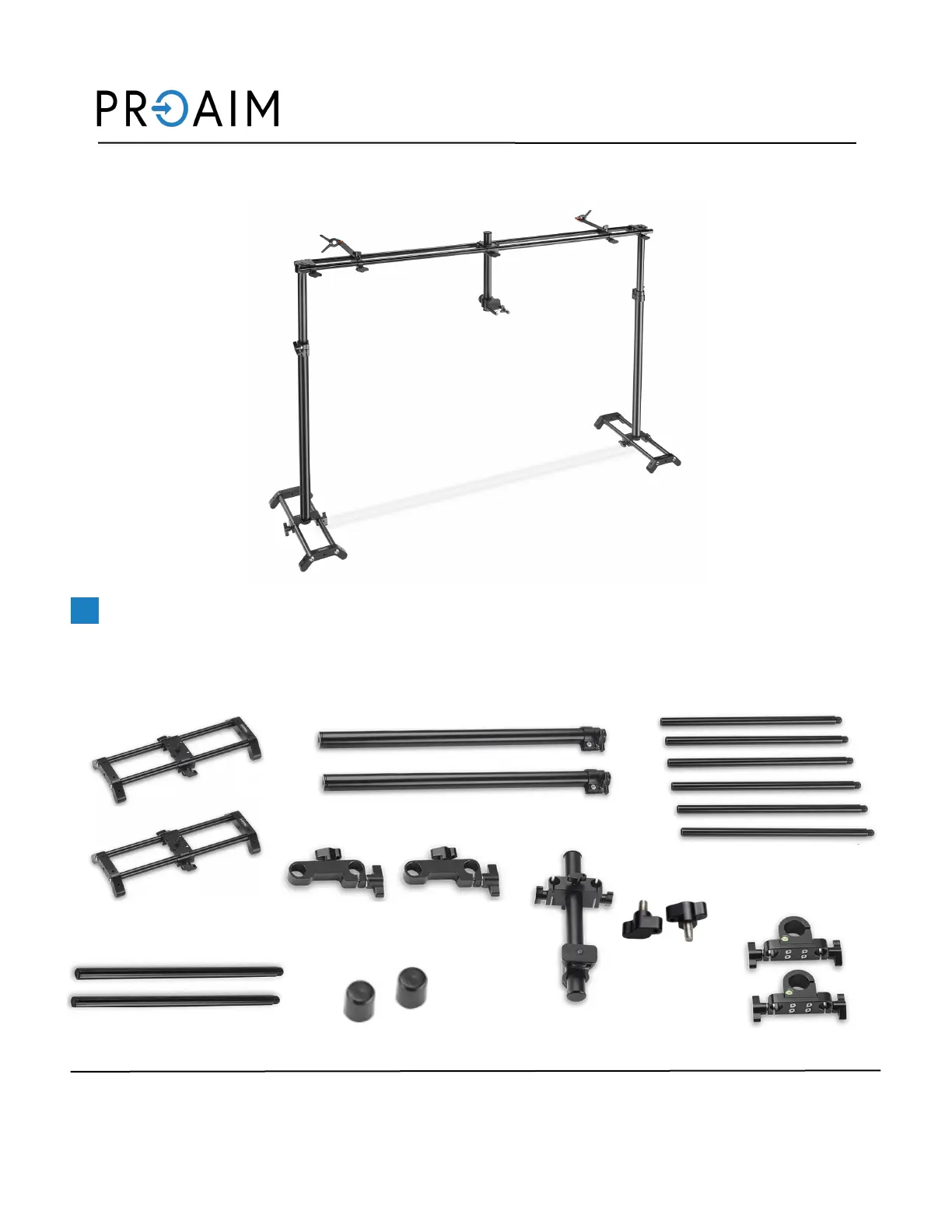

Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
4 Versale Overhead Camera Plaorm System ( ) P OHCP- -02
A s s e m bl y M a n ua l
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,
electronic, mechanical, photo copying, recording, or otherwise, except as may be expressly permied by the applicable copyright -
statutes or in wring by the Publisher.
2 x Pole Stands
What s In The Box’
2 x Telescopic Poles
6 x 300mm Male Rods
2 x 300mm Female Rods
2 x Accessory Clamps
2 x Pole Connectors
2 x Female Caps
Center Bar with adjustable
camera mount
2 x Knobs
2

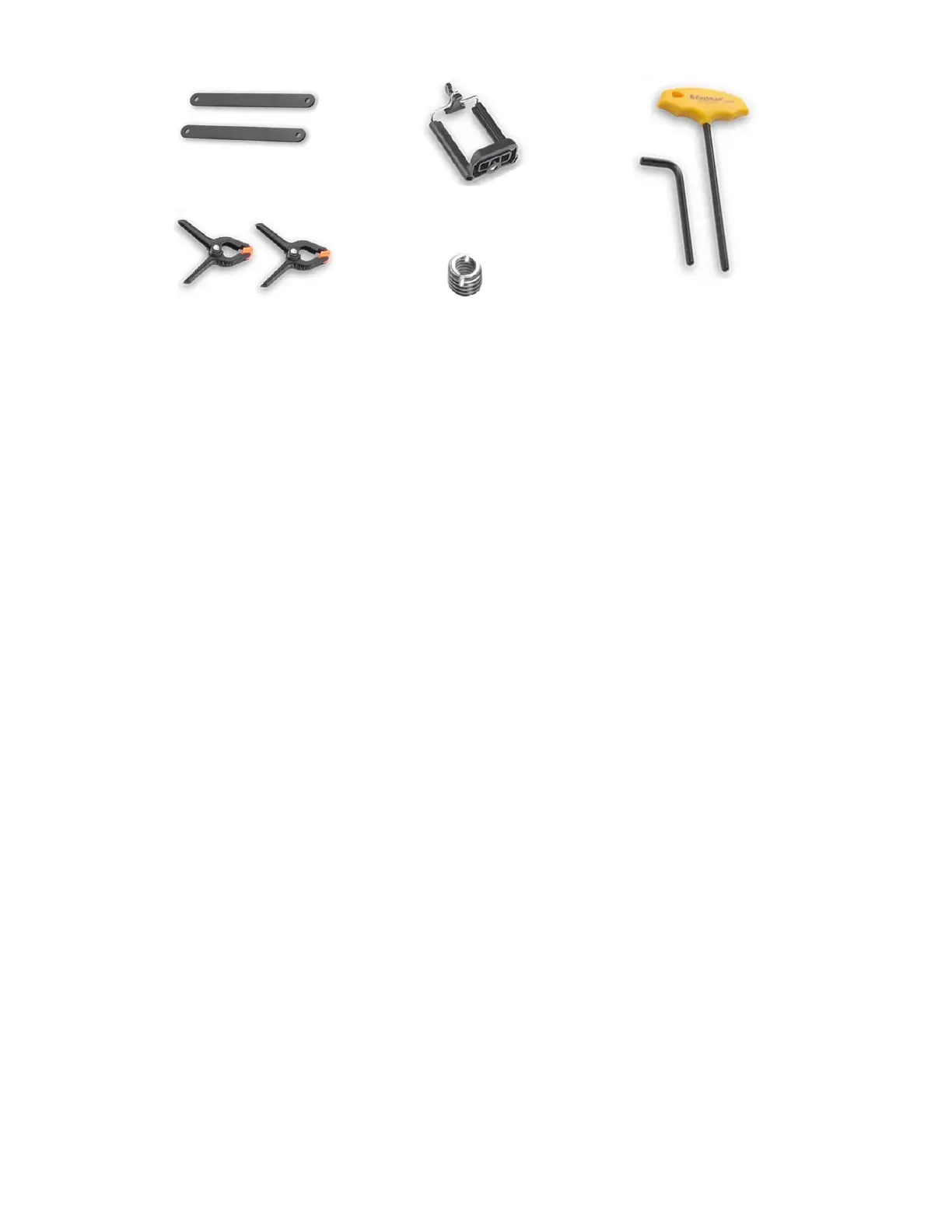

2 x Backdrop Brackets
iPhone Adapter
2 x Plasc Clips BS100
1 x L Type Allen key 3/16” -
1 x 4mm T Type Allen key-
3
INDEX
Sr. No Particulars Page No.
1. 4 Versale Overhead Camera Setup 4
2. Telescopic Poles & Pole Stand Assembly 4
3. - Height Adjustment 4 5
4. Pole Connector Assembly 5
5.
Male & Female Rods Assembly 5
6. Center Bar Assembly 6
7. - Accessory Clamps Assembly 6 7
8. - Backdrop Brackets Assembly 7 8
9. Center Bar Posioning 8
10. Center Bar Height Adjustment 8
11. Camera Setup 9
12. 10 -iPhone Adapter Assembly 9
13. 10 BS100 Mounng
14. 11 Final Setup
Product Specifications
| Brand: | Proaim |
| Category: | Tripod |
| Model: | P-OHCP-02 |
