Page 1/6
1
What s In The Box’
Please inspect the contents of your shipped package to ensure you have received everything that
is listed below.
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmiîž©ed by any form or by any means,
electronic, mechanical, photo copying, recording, or otherwise, except as may be expressly permiîž©ed by the applicable copyright -
statutes or in wring by the Publisher.
A s s e m b l y M a n u a l
Flowline Edge V1 Stabilizaon Arm
Flowline Edge V1 Stabilizaon Arm for Flowline Rigs,
Cameras & Gimbals (FLCM- -EDGE V1)
2 x Screws
(Size: 4 x 12)
Height Riser
2mm Allen Key
2 x Screws CSK
(Size: 3 x 8)
2

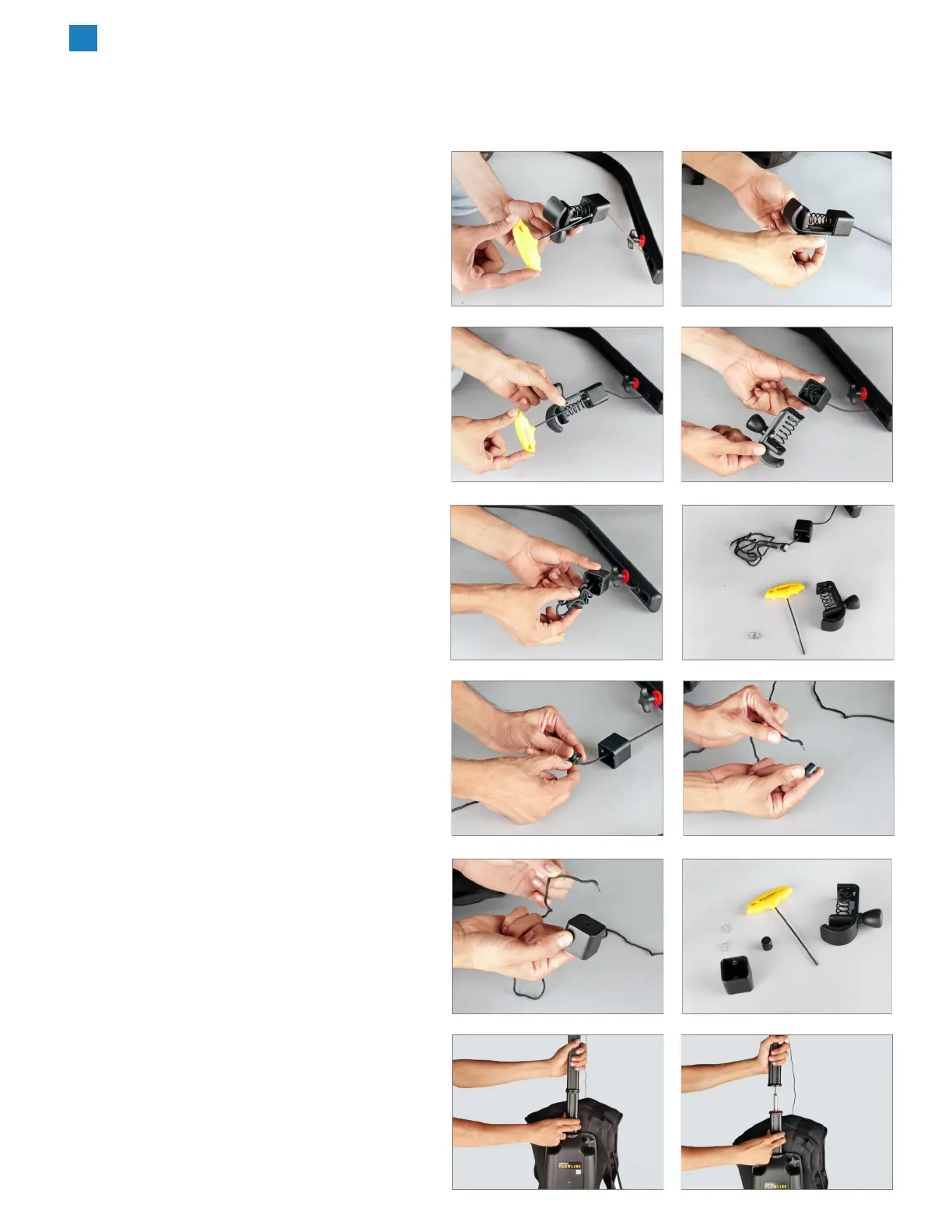

• Similarly, remove the second screw.
• Now, remove the Hook from the Flowline
Support Arm (Not Included).
• As shown in the image, take the Cord
bundle out from the Cup and pull the Cord
unl a Cord lock comes out.
• Separate the Cord and the Cord lock.
• Keep the lock aside to re aach it later.-
• To detach the Flowline Support Rod
(Not Included), pull it upwards.
Flowline Edge Setup
• Loosen the screw of the Camera Hook
aîž©ached to the Flowline Support Arm
(Not Included) using the Allen key.
• Similarly, separate the Cord from the Cup to
mount it back later.
NOTE: It is recommended to aîž©ach the minimum required (weight 3kg / 6lb) for pulling down the
balancing rope to ensure proper operaon of your Flycam Flowline system.
3

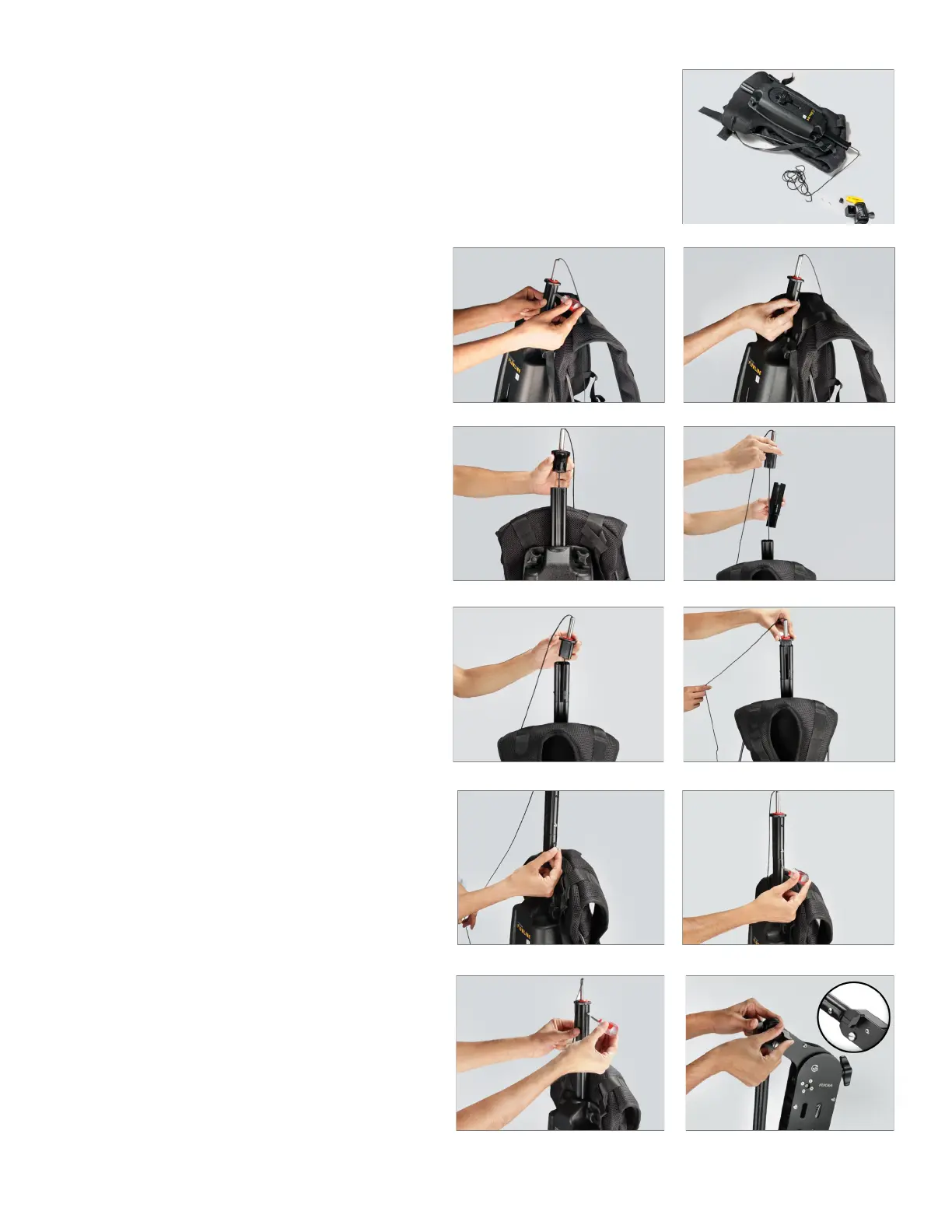

• To detach the extension from the Support
Rod of the Vest, remove its screw using a
screwdriver.
• Detach the extension from the Support Rod
(Not Included) and align the cord with the
height riser, as shown in the image.
• Aach the extension with the height riser
and push it inside.
• Similarly, ghten the top screw using the
screwdriver.
• Loosen the knob of the Flowline Edge.
• Dissemble the Camera Hook and the
Support Rod from the Vest.
• Insert a screw in the Support rod and
ghten it using the screwdriver.
Product Specifications
| Brand: | Flycam |
| Category: | Tripod |
| Model: | Flowline Edge V1 |
