WDM Bi-Directional

Ethernet Media

Converter Instructions

Models 510530, 510547, 545068 & 545075

INT-510530_510547_5 45068_545075-UM-1015 _REV-5.01

Important: Read before use. • Importante: Leer antes de usar.

intellinetnetwork.com

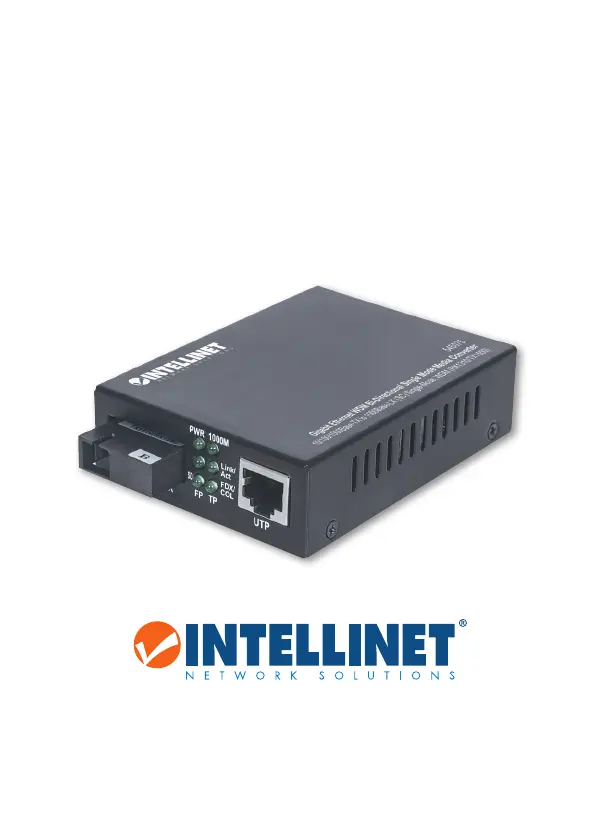

Shown: Model 545075

ENGLISH

WDM Bi-Directional Ethernet Media Converter English

Thank you for purchasing the Intellinet WDM Bi-Directional

Single Mode Media Converter. Media converters connect two

Ethernet networks over a longer distance using ber optic cable.

WDM Bi-Directional versus stanDarD MeDia converter

Standard Media Converter

To create a connection between two media converters you need

two ber cables, referred to as a ber duplex cable.

WDM Bi-Directional Converter

One ber cable between both media converters is sucient in

order to create a connection. The signal travels both ways.

ENGLISH 3

MoDels

• Fast Ethernet WDM Bi-Directional Single Mode

Media Converter (510547)

10/100Base-TX to 100Base-FX (SC) Single-Mode,

20 km (12.4 mi.), WDM (RX1550/TX1310)

• Fast Ethernet WDM Bi-Directional Single Mode

Media Converter (510530)

10/100Base-TX to 100Base-FX (SC) Single-Mode,

20 km (12.4 mi.), WDM (RX1310/TX1550)

• Gigabit Ethernet WDM Bi-Directional Single Mode

Media Converter (545068)

10/100/1000Base-TX to 1000Base-LX (SC) Single-Mode,

20 km (12.4 mi.), WDM (RX1550/TX1310)

• Gigabit Ethernet WDM Bi-Directional Single Mode

Media Converter (545075)

10/100/1000Base-TX to 1000Base-LX (SC) Single-Mode,

20 km (12.4 mi.), WDM (RX1310/TX1550)

connections

Twisted Pair – RJ45

Connect the UTP port of the media converter to an RJ45 port on

the network; e.g., to an Ethernet switch. Cat5e or better cabling is

recommended.

Fiber Optic

As shown above, one ber optic cable needs to be connected

between two WDM media converters. As a rule, these media

converters must be used in pairs. Model 510547 connects to

model 510530 (Fast Ethernet), and model 545068 connects

to 545075 (Gigabit Ethernet).
