GIGABIT ETHERNET

MEDIA CONVERTER

INSTRUCTIONS

MODELS 506533, 507349

INT-506533/507349-UM-ML1-1015-02

Important: Read before use. • Importante: Leer antes de usar.

intellinetnetwork.com

ENGLISH

Gigabit Ethernet Media Converter English

Thank you for purchasing the Intellinet Gigabit Ethernet Media

Converter. Media converters connect two Ethernet networks over

a longer distance using ﬁber optic cable.

MODELS

• 506533:

Gigabit Ethernet Media Converter

1000Base-T to 1000Base-SX (SC) Multi-Mode, 550 m (1800 ft.)

•507349:

Gigabit Ethernet Single Mode Media Converter

10/100/1000Base-T to 1000Base-LX (SC) Single-Mode, 20 km

(12.4 mi)

CONNECTIONS

TwistedPair–RJ45

Connect the UTP port of the media converter to an RJ45 port on

the network; e.g., to an Ethernet switch. Cat5e or better cabling is

recommended.

Fiber Optic

As shown above, two ﬁber optic cables need to be connected

between two ideally identical media converters. Make a

connection from Media Converter 1 TX to Media Converter 2 RX,

and from Media Converter 1 RX to Media Converter 2 TX.

Media Converter 1

Media Converter 2

RJ45

TX RX

OPTICAL FIBER

ETHERNET 1 ETHERNET 2

Twisted Pair

ENGLISH 3

Maximum length and ﬁber cable speciﬁcation depend on the

model. (See Models.)

POWER

Plug the power adapter into the 5 V DC input jack on the media

converter, then connect it to a regular power outlet. Only use

the included power adapter or one with matching speciﬁcations

(output of 5 V DC, at least 1 A).

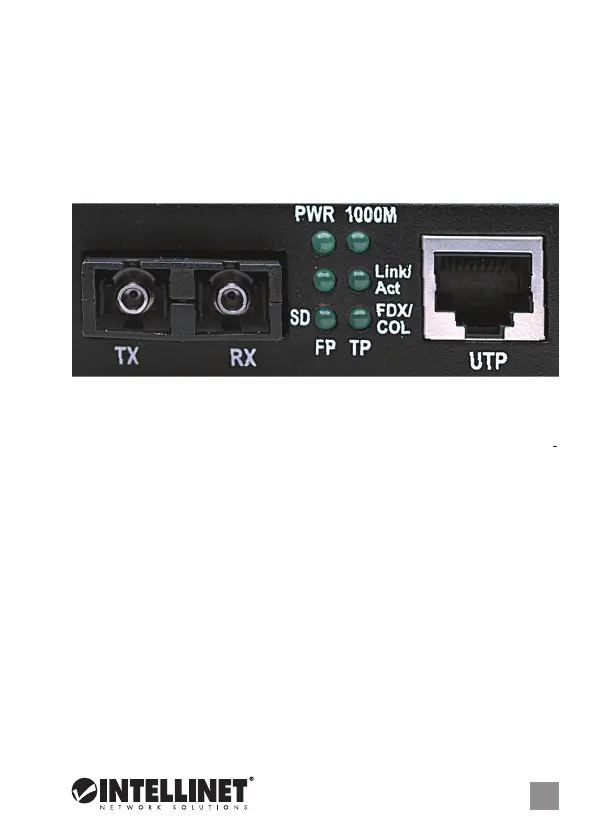

LEDS

PWR – The power adapter is connected when lit.

1000M – 1000 Mbps link on the twisted pair connection when lit.

Link/Act(TP=RJ45;FP=Fiber) – Active link when lit; data traﬃc

when ﬂashing; no active network link when unlit.

FDX/COL(forTP/RJ45) – Full duplex connection when lit; data

collisions when ﬂashing; half duplex when unlit.

SD(forFP/Fiber) – Fiber optic signal is detected when lit; no

signal when unlit.

For speciﬁcations, go to intellinetnetwork.com.
