Page 1/16

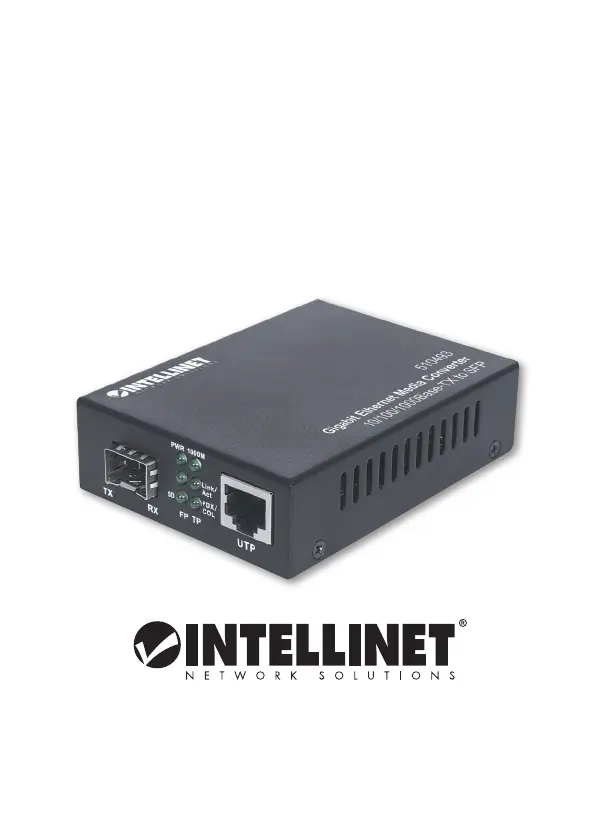

Gigabit Ethernet to

SFP Media Converter

Instructions

Model 510493

INT-510493-UM-ML1-1015- 02

Important: Read before use. • Importante: Leer antes de usar.

intellinetnetwork.com

ENGLISH

Gigabit Ethernet to SFP Media Converter English

Thank you for purchasing the Intellinet Gigabit Ethernet

Media Converter. Media converters connect two Ethernet

networks over a longer distance using ber optic cable.

MODEL

Gigabit Ethernet Multi Mode Media Converter (510493)

10/100/1000Base-TX to 1000Base-SX Multi-

Mode/1000Base-LX Single-Mode (SFP slot, empty)

COnnECtiOns

Twisted Pair – RJ45

Connect the UTP port of the media converter to an RJ45

port on the network; e.g., to an Ethernet switch. Cat5e or

better cabling is recommended.

SFP Slot

This media converter does not come with integrated ber

ports, instead it takes an SFP transceiver module (1.25

Gbps), which provides the ber optic ports. As shown

above, two ber optic cables need to be connected

between two ideally identical media converters. Make a

connection from Media Converter 1 TX to Media Converter

Media Converter 1

Media Converter 2

RJ45

TX RX

OPTICAL FIBER

ETHERNET 1 ETHERNET 2

Twisted Pair

ENGLISH 3

2 RX, and from Media Converter 1 RX to Media Converter

2 TX. Maximum length and ber cable specication

depend on the model. (See Specications.)

POwEr

Plug the power adapter into the 5 V DC input jack on

the media converter, then connect it to a regular power

outlet. Only use the included power adapter or one with

matching specications (output of 5 V DC, at least 1 A).

LEDs

PWR – The power adapter is connected when lit.

1000M – 1000 Mbps link on the twisted pair connection

when lit.

Link/Act (TP = RJ45; FP = Fiber) – Active link when lit; data

trac when ashing; no active network link when unlit.

FDX/COL (for TP/RJ45) – Full duplex connection when lit;

data collisions when ashing; half duplex when unlit.

SD (for FP/Fiber) – Fiber optic signal is detected when lit;

no signal when unlit.

For specications, go to intellinetnetwork.com.
