Page 1/16
Gigabit
PoE+ Media
Converter
Instructions Model 508209
Important: Read before use. • Importante: Leer antes de usar.
For additional benets:
or go to: register.intellinet-network.com/r/508209
Scan to
register your
product warranty
2

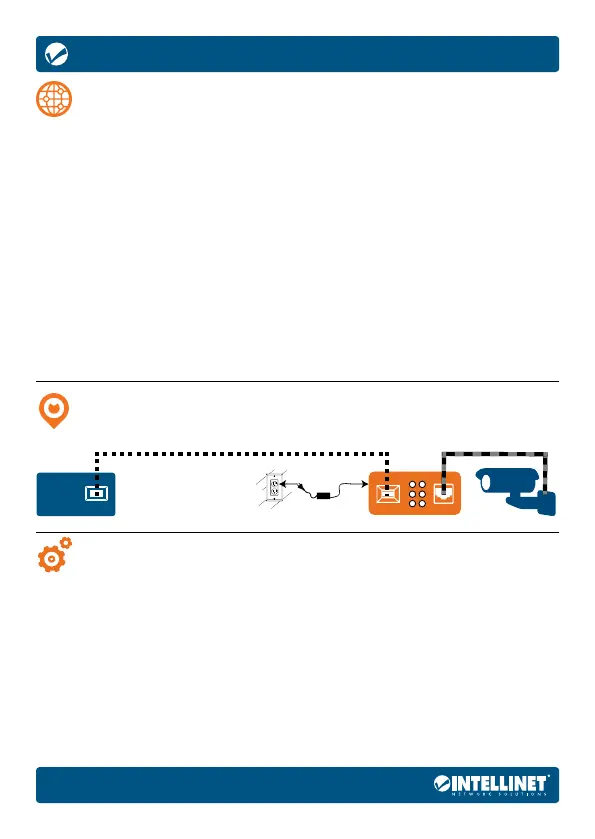

Connections
This product features a pre-installed SC connector that is not removable.
1 Connect the fiber optic cable to the pre-installed SC connector.
2 Install the other end of the fiber optic cable into an
appropriate port in your fiber network.
Maximum length and fiber cable specification depend on the model.
RJ45
Connect the UTP port of the media converter to powered RJ45 device;
e.g., to a network camera. Cat5e or better cabling is recommended.
Power
Plug the power adapter into the input jack on the media converter.
Then connect it to a regular power outlet. Only use the included
power adapter or one with matching specifications.
Setup
Features
The DIP switches on the Intellinet Gigabit PoE+ Media Converter present
helpful options for easily detecting link faults when they occur.
Enabling Link Fault Pass-through (LFP) by switching the LFP DIP switch to “ON”
forces the devices on a link to acknowledge that they are online before data can
be transmitted. When one of the devices doesn’t respond, data cannot be sent.
If a copper connection breaks when the LFP function is enabled, the converter’s
Link Loss Carry Forward (LLCF) feature stops data transmission and generates
a trap to a management station. Likewise, if a fiber connection breaks when
TX RX
Gigabit
Fiber
Network
Gb Fiber (20 km/12.4 mi.) Gb RJ45 (100 m/300 .)ft
TX RX
47 V – 57 V
English
Instructions
3
the LFP function is enabled, the converter’s (LLR) function will Link Loss Return
return a no-link condition to its link partner and cease data transmission.
Power over Ethernet+
The Intellinet Gigabit PoE+ Media Converter complies with IEEE 802.3at / 802.3af
standards. When the included power adapter is connected to the converter, the
device can supply up to 30 watts of power to a PoE-compliant powered device.
LED Status
LED STATUS STATUS DESCRIPTION
PWR
Off Power Off
On Power On
1000M
On Gigabit connection
Off Less than Gigabit connection
FP Link/ACT
On Active fiber connection
Flashing Fiber data transfer
Off Port link is down.
TP Link/ACT
On Active copper connection
Flashing Copper data transfer
Off Port link is down.
PoE
On PoE is being supplied to a connected PD.
Off No power is being supplied to a connected PD.
SD
On Valid optical signal
Off No valid optical signal
For specifications, visit . Register your product at intellinetnetwork.com register.
intellinet-network.com/r/508209 or scan the QR code on the cover.
English
Instructions
Product Specifications
