Page 1/16

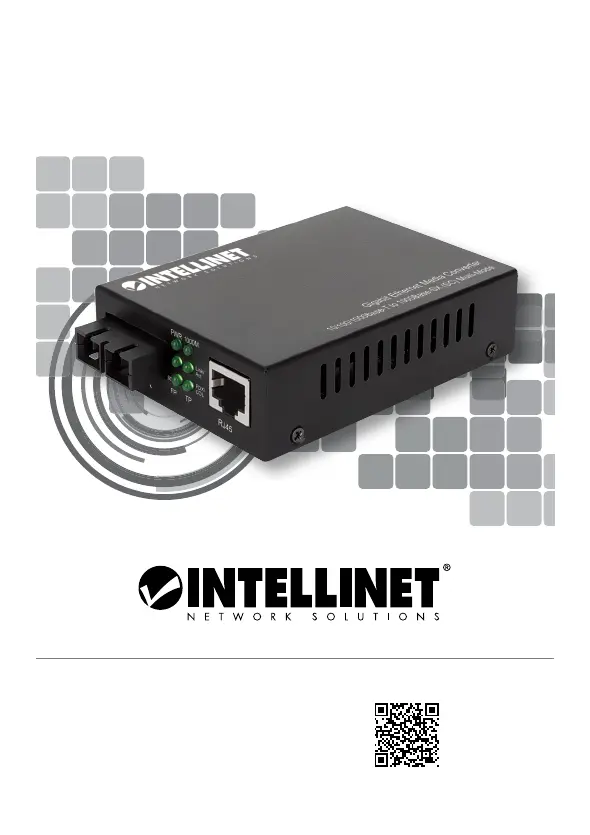

Important: Read before use. • Importante: Leer antes de usar.

For additional benets:

Gigabit Ethernet Media

Converter

Instructions

Models 508544 (IMC-MMSCG550M)

or go to: register.intellinet-network.com/r/508544

Scan to

product warranty

Instructions Gigabit Ethernet Media Converter

English

Media converters connect two Ethernet networks over

a longer distance using fiber optic cable.

For specifications, visit . Register your product at intellinetnetwork.com

Features

• One 10/100/1000 RJ45 port supporting a maximum distance of 100 m (300 ft.)

• One 1000Base-SX fiber SC multi-mode port supporting

a maximum distance of 550 m (1,800 ft.)

• Supports full-duplex and half-duplex modes with autonegotiation

Twisted Pair – RJ45

Connect the UTP port of the media converter to an RJ45 port on the network

(e.g., to an Ethernet switch). Cat5e or better cabling is recommended.

Fiber Optic

As shown above, two fiber optic cables need to be connected between two ideally

identical media converters. Make a connection from Media Converter 1 TX to

Media Converter 2 RX Media Converter 1 RX Media Converter 2 TX, and from to .

Maximum length and fiber cable specification depend on the model. (See Models.)

Connections

MEDIA CON 1VERTER

MEDIA CONVERTER 2

RJ45

TX RX

OPTICAL FIBER

ET ETHERN 1 E 2THERNET

TWISTED PAIR

InstructionsGigabit Ethernet Media Converter

English

Power

Plug the power adapter into the 5 V DC input jack on the media converter,

then connect it to a regular power outlet. Only use the included power adapter

or one with matching specifications (output of 5 V DC, at least 1 A).

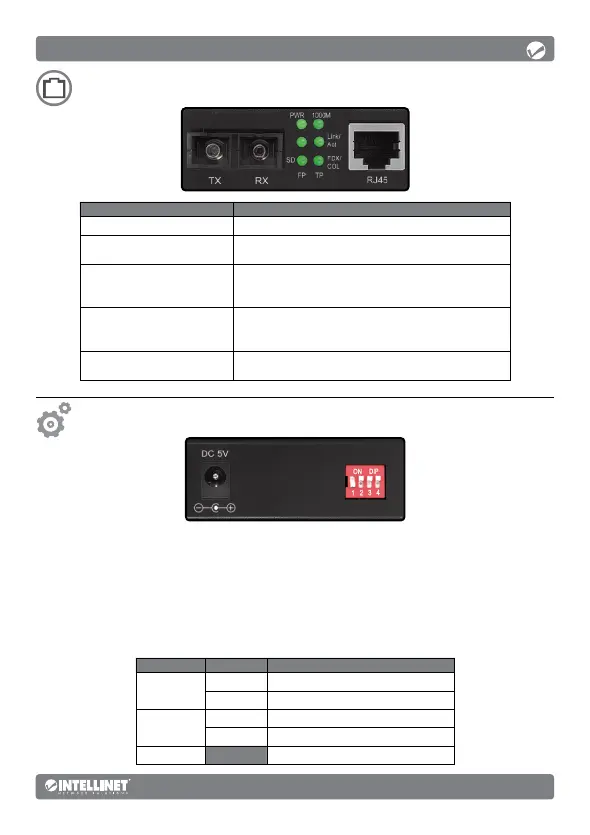

DIP Switch

Front panel

LED Description

PWR The power adapter is connected when lit.

1000M 1000 Mbps link on the twisted

pair connection when lit.

LINK/ACT

(TP = RJ45; FP = FIBER)

– Active link when lit;

– Data traffic when flashing;

– No active network link when unlit.

FDX/COL (FOR TP/RJ45)

– Full duplex connection when lit;

– Data collisions when flashing;

– Half duplex when unlit.

SD (FOR FP/FIBER) – Fiber optic signal is detected when lit;

– No signal when unlit.

Rear Panel

Switch Position Description

1On Link Fault Pass-through (LFP) on

Off LFP off

2On Cut-through switching

Off Store-and-forward switching

3 & 4 Blank
