10GBase-T to 10GBase-R
Media Converter
Instructions
Model 508193 (IMC-SFP10G)
For additional beneîts:
or go to: register.intellinet-network.com/r/508193
2 English
Instructions
For specifications, visit intellinet-network.com. Register
your product at register.intellinet-network.com/r/508193
or scan the QR code on the cover.
Connections
Twisted Pair â RJ45
Connect the UTP port of the media converter to an
RJ45 port on the network; e.g., to an Ethernet switch.
Cat5e or better cabling is recommended.
SFP+ Slot
This media converter requires an SFP+ transceiver
module that provides fiber optic connections.
1 Insert the transceiver into the media converter. Next,
install the fiber optic cable into the transceiver.
2 Install the other end of the fiber optic cable into
an appropriate port in your fiber network.
Maximum length and fiber cable specification depend on the model.
TX RX
10 Gb SFP+ 10 Gb RJ45
10G
Bas R e-
Fiber
Net work
TX RX
12 V / 1 A
3English
Instructions

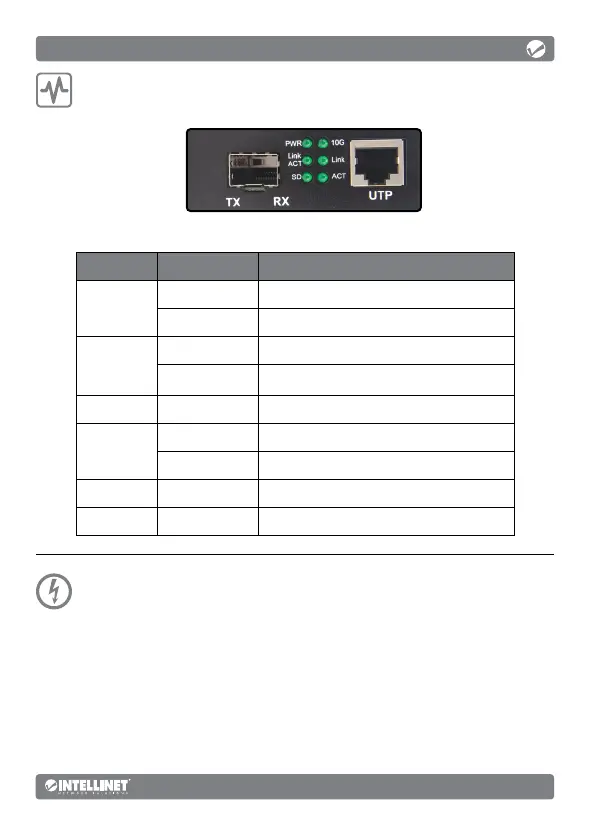

LED Status
LED STATUS STATUS DESCRIPTION
Power Off Power Off
On Power On
LNK/ACT
On Active fiber connection
Flashing Fiber data transfer
SD On Fiber signal detected.
10G On 10 Gbps connection
Off Less than 10 Gbps connection
TX Link On Active copper connection
TX Act Flashing Copper data transfer
Power
Plug the 12 VDC power adapter into the input jack on
the media converter. Then connect it to a regular power
outlet. Only use the included power adapter or one with
matching specifications (output of 12 VDC, 1 A).
