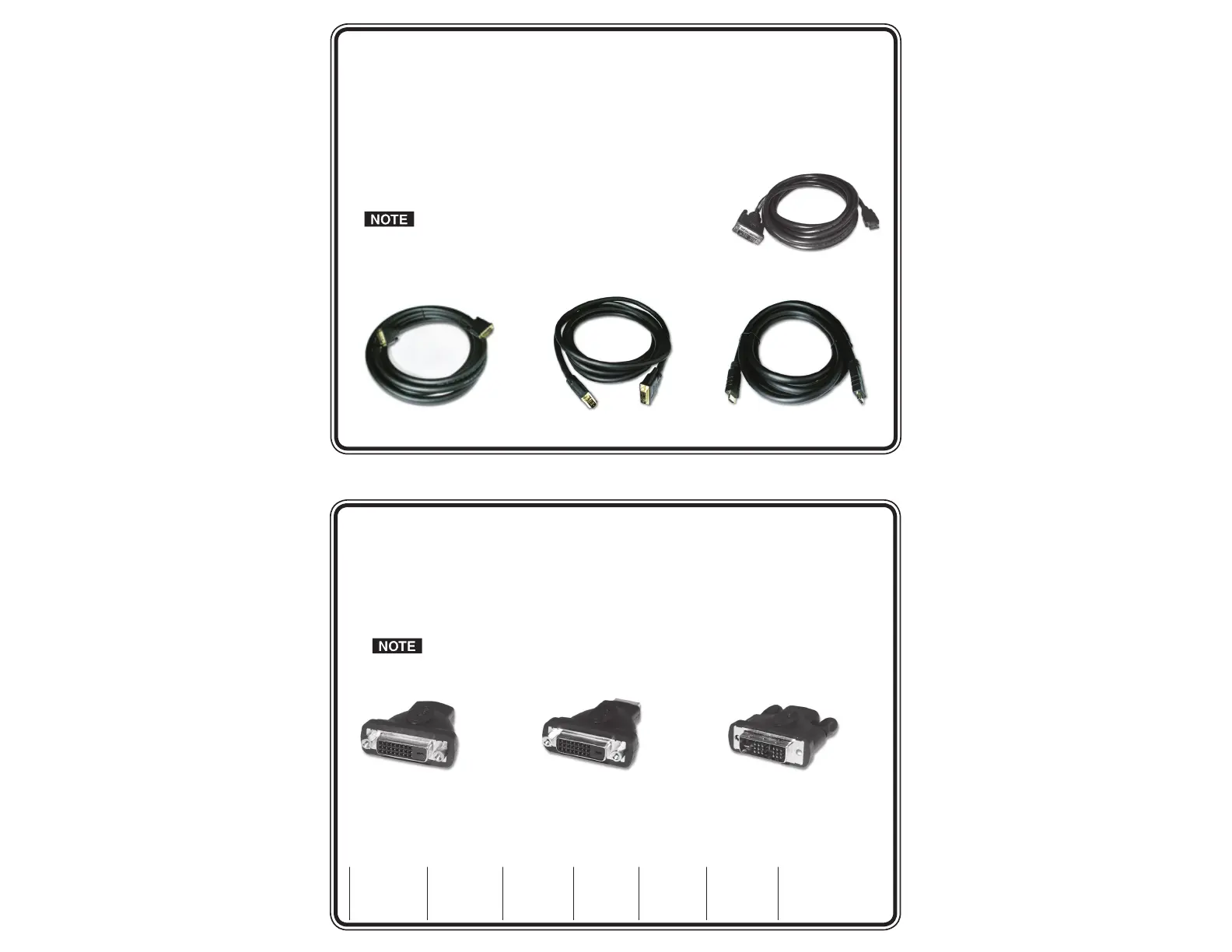

The Extron HDMI to DVI adapters offer interconnection between HDMI and DVI cables and
devices. They pass through all the HDTV and computer signals of a single link HDMI and
DVI, including digital video, digital audio, EDID (DDC), HPD, CEC, and HDCP. All the contact
pins are gold plated for high performance and reliability; the male side has thumb screws,
and the female side has hex nuts for attachment.
Pin 13 of the HDMI connector and pin 8 of the DVI connector
are connected for passing CEC signals.
68-1570-01 Rev. F
09 09
The Extron HDMI and DVI cables offer interconnection between HDMI and DVI devices.
They are available in four styles: HDMI to DVI,HDMI male to HDMI male,DVI male
to DVI male (single link) DVI male to DVI male (dual link) , and , in various lengths from
3 feet up to 200 feet (0.9 m up to 61 m) [HDMI to DVI cables are from 3 feet to 50 feet (0.9 m
up to 15.2 m)]. They carry uncompressed HDTV high definition digital video as well as a control
signal on a single cable. The HDMI male to HDMI male cable fully supports HDMI 1.3 Category 2
performance for cable lengths of 3 feet, 6 feet, and 12 feet. HDMI and DVI cables longer than
75 feet should be used with the Extron DVI DL 101, DVI 101, or HDMI 101 Cable Equalizer.
26-614-xx
HDMI to DVI
26-650-xx
HDMI to HDMI male
26-649-xx
Single Link DVI M-M
26-651-xx
Dual Link DVI M-M
26-618-01
HDMIF-DVIDF
HDMI female to DVI-D female
26-617-01
HDMIM-DVIDF
HDMI male to DVI-D female
26-616-01
HDMIF-DVIDM
HDMI female to DVI-D male
• Cables 12 feet or less in length are constructed
with 24 AWG wire. Cables longer than 12 feet
are constructed with 22 AWG wire.
• Pin 13 of the HDMI and pin 8 of the DVI
are connected for passing CEC signals.
HDMI and DVI Cables
HDMI to DVI Adapters
• Single link DVI cable supports up to 1920 x 1200 at 60 Hz.
• Dual link DVI cable supports up to 2560 x 1600 at 60 Hz.
