Read below 📖 the manual in Italian for Extron DP-HDMIF/6 (2 pages) in the Cables for PCs and peripherals category. This guide has been helpful for 5 people and has been rated 4.5 stars on average by 2 users
Page 1/2

This powered cable must be used directly at the DisplayPort source. It is not intended
to be used at a DisplayPort video display. Do not use additional cables or adapters
between the source output and the DP end of the cable.
The cable is unidirectional and is not intended to convert a VGA source to output a
DisplayPort signal.

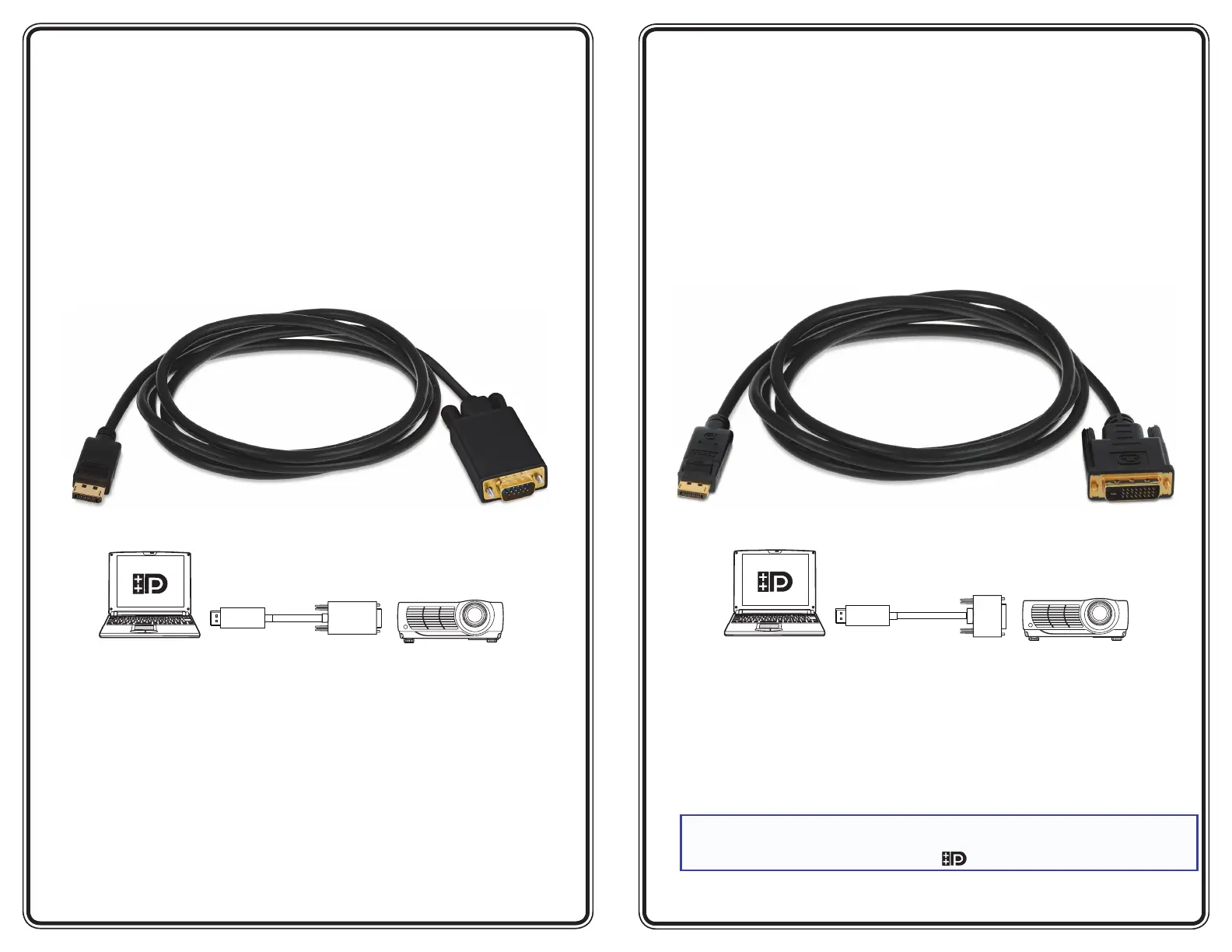

DisplayPort Male to VGA Male Cable
The Extron® is a six-foot long cable with a male DP connector on one end DP-VGA/6
and a male VGA cable connector on the other end.
The DP to VGA cable offers interconnectability between DisplayPort sources and all VGA
devices. In addition, it offers the following features:
• DisplayPort 1.1 compliance
• Supports resolutions up to 1920 x 1200 at 60 Hz
• Passes EDID from a VGA display to a DP source
• Gold plating on all contact surfaces for high performance and reliability
This powered cable must be used directly at the DisplayPort source. It is not intended
to be used at a DisplayPort video display. Do not use additional cables or adapters
between the source output and the DP end of the cable.
The cable is unidirectional and is not intended to convert a DVI source to output a
DisplayPort signal.
NOTE: In order for this adapter to operate in the system, the DisplayPort source
(laptop or desktop PC) must be a dual mode DisplayPort device. Dual mode
DisplayPort devices are marked with the logo.
DisplayPort Male to DVI Male Cable
The Extron® is a six-foot long cable with a male DP connector on one end DP-DVID/6
and a male DVI cable connector on the other end.
The DP to DVI cable offers interconnectability between DisplayPort sources and all DVI
devices. In addition, it offers the following features:
• DisplayPort 1.1 compliance
• High-bandwidth Digital Content Protection (HDCP) compliance
• Supports resolutions up to 1920 x 1200 at 60 Hz
• Passes EDID from a DVI display to a DP source
• Gold plating on all contact surfaces for high performance and reliability
6' DP A e to VG Cabl
Projector w/VGA tInpu
Sink
Source
Laptop with
D t isplayPor Output
6' DP I eto DV Cabl
Projector w/DVI tInpu
Sink
Source
Laptop with
D t isplayPor Output
26-682-06
DP-VGA/6
26-681-06
DP-DVID/6

DisplayPort Male to HDMIF Cable
with HDMI Male to Male Coupler
The Extron® is a six-foot long cable with a male DP connector on one end DP-HDMIF/6
and a female HDMI connector on the other end.
The DP Male to HDMI Female cable, along with the HDMI male to male coupler, offers
interconnectability between DisplayPort sources and all HDMI devices. In addition, it
offers the following features:
•DisplayPort 1.1 compliance
•High-bandwidth Digital Content Protection (HDCP) compliance
•Supports resolutions up to 1920 x 1200 at 60 Hz or 1080p at 60 Hz with audio
•Supports Standard HDMI speed and passes EDID from a sink device
•Gold plating on all contact surfaces for high performance and reliability
This powered cable must be used directly at the DisplayPort source. It is not intended
to be used at a DisplayPort video display. Do not use additional cables or adapters
between the source output and the DP end of the cable.
The cable is unidirectional and it is not intended to convert an HDMI source to output a
DisplayPort signal.
NOTE: In order for this adapter to operate in the system, the DisplayPort source
(laptop or desktop PC) must be a dual mode DisplayPort device. Dual mode
DisplayPort devices are marked with the logo.
NOTE: A LockIt® cable lacing bracket is provided with the HDMI Male to Male coupler.
Use this bracket to secure the HDMI end of the cable to the HDMI input. This will
reduce stress on the HDMI input and prevent signal loss due to a loose cable
connection. See the instructions for attaching the LockIt brackets, on the next page. 05-0432-86
Rev. B
10 14
Extron USA Headquarters
+1.800.633.9876 (Inside USA/Canada Only)
Extron USA - West Extron USA - East
+1.714.491.1500 +1.919.850.1000
+1.714.491.1517 FAX +1.919.850.1001 FAX
Extron Europe
+800.3987.6673 (Inside Europe Only)
+31.33.453.4040
+31.33.453.4050 FAX
Extron India
1800.3070.3777 (Inside India Only)
+91.80.3055.3777
+91.80.3055.3737 FAX
Extron Japan
+81.3.3511.7655
+81.3.3511.7656 FAX
Extron China
+4000.EXTRON
+4000.398766 (Inside China Only)
+86.21.3760.1568
+86.21.3760.1566 FAX
Extron Asia
+800.7339.8766 (Inside Asia Only)
+65.6383.4400
+65.6383.4664 FAX
Extron Middle East
+971.4.2991800
+971.4.2991880 FAX
Extron Korea
+82.2.3444.1571
+82.2.3444.1575 FAX
© 2014 Extron Electronics — All rights reserved. All trademarks mentioned are the property of their respective owners. www.extron.com
6' DP to IF leHDM Cab Projector w/ I utHDM Inp
Sink
Source
La p w hpto it
Dis ayPort Ou tpl tpu
HDMI M-M
A erdapt
26-680-06
DP-HDMIF/6 with HDMI M-M coupler
Optional Accessory Part number
LockIt Adapter Tether; Package of 10 101-021-10
1. Plug the HDMI cable into the panel connection.
2. Loosen the HDMI connection mounting screw
from the panel enough to allow the LockIt lacing
bracket to be placed over it. The screw does not
have to be removed.
3. Place the LockIt lacing bracket on the screw and
against the HDMI connector, then tighten the
screw to secure the bracket.
ATTENTION: Do not overtighten the HDMI
connector mounting screw. The shield it
fastens to is very thin and can easily be
stripped.
4. Loosely place the included tie wrap around the
HDMI connector and the LockIt lacing bracket as
shown in the image at right.
5. While holding the connector securely against the
lacing bracket, use pliers or similar tools to tighten
the tie wrap, then remove any excess length.
3
1
2
3
4
5
below:
LockIt HDMI Cable Lacing Bracket
Use the included LockIt Lacing Bracket to securely fasten an HDMI cable to a device as
follows.
