ASA Audio Summing Adapters
(ASA 111, ASA 121, ASA 131, ASA 141)
The Extron ASA audio summing adapters sum left and right stereo audio signals into
mono signals for distributed sound and other applications that require mono sound.
The ASA 111 and ASA 121 output an unbalanced audio signal only. The ASA 131
outputs a balanced audio signal. The ASA 141 outputs a balanced or unbalanced audio
signal.
ASA 131
ASA 121, ASA 141
This connector
is slightly smaller
on the ASA 121.
NOTE
ASA 111
NC
NC
4
4
1
3
2
4
Model Input
connector
Input
signal
Output
connector
Output
signal
ASA 141
ASA 111
ASA 121
ASA 131
2 RCAs 3-pin captive
screw
Balanced/
unbalanced
mono
3.5 mm
mini
plug
3-pin captive
screw
Unbalanced
mono (only)
3-pin captive
screw
Unbalanced
mono (only)
5-pin
captive
screw
Unbalanced
stereo
Unbalanced
stereo
Unbalanced
stereo
Balanced
stereo
3-pin
captive
screw
Balanced
mono (only)
2 4a 4b
4a
4a
4b3
1
2 RCAs
2
(2 pins
are used)
(2 pins
are used)
ASA 141 unbalanced output — Do not short the negative (-) terminal to
ground (Gnd).
The ASA 131 supports the wiring scheme used by Extron products that output
audio on 5-pole captive screw connectors.
68-1150-01
Rev. C
11 06
ASA 111,
ASA 121,
ASA 141
Unbalanced
Output
ASA 131,
ASA 141
Balanced
Output
ASA 131
Balanced
Input
Sleeve
Ring
Tip
No connection
NC
Sleeve
Tip
Ring
Tip
Sleeve(s)
Ring
Tip
4a
2
4b
Maximum level
ASA 111, 121, 131 ................... +24 dBu (12.3 V)
ASA 141 ...................................
+15 dBu (5.6 V)
0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV 2 dBu
Audio output
Number/signal type
ASA 111, ASA 121 .................. 1 unbalanced mono
ASA 131 ................................... 1 balanced mono
ASA 141 ................................... 1 transformer balanced/unbalanced mono
Connectors ................................... (1) 3.5 mm direct insertion captive screw connector, 3 pole
Impedance (with 50 ohm input impedance)
ASA 101 ................................... 75 ohms unbalanced, 150 ohms balanced
ASA 111, 121 ........................... 1k ohm unbalanced
ASA 131 ................................... 2k ohms balanced
ASA 141 ................................... 3.3k ohms balanced (typical)
Nominal level
ASA 111, 121 ........................... -10 dBV (316 mV)
ASA 131 ................................... +4 dBu (1.23 V)
ASA 141 ................................... +15 dBu (5.6 V)
Maximum level
ASA 111, 121, 131 ................... +24 dBu (12.3 V)
ASA 141 ................................... +15 dBu (5.6 V)
General
Power ............................................ Not powered
Temperature/humidity .............. Storage: -40 to +158 °F (-40 to +70 °C) /
10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) /
10% to 90%, noncondensing
Rack mount .................................. Can be attached to any flat surface with supplied Velcro®
Enclosure type ............................. Molded plastic
Enclosure dimensions
ASA 111, 121, 131 ................... 0.7" H x 0.7" W x 1.3" D
1.8 cm H x 1.7 cm W x 3.4 cm D
(Depth excludes the 24 inch long pigtail for ASA 121, and the
24 inch long single cable for the ASA 111 and ASA 131.)
ASA 141 ................................... 1.1" H x 1.1" W x 1.6" D
2.8 cm H x 2.8 cm W x 4.0 cm D
(Depth excludes the 24 inch long pigtail)
Product weight ............................ 0.2 lbs (0.1 kg)
Shipping weight .......................... 1 lb (1 kg)
Vibration ....................................... ISTA 1A in carton (International Safe Transit Association)
Listings .......................................... UL, CUL
Compliances ................................. CE, FCC Class A, VCCI, AS/NZS, ICES
MTBF ............................................. 30,000 hours
Warranty ....................................... 3 years parts and labor
All nominal levels are at ±10%.
Specifications are subject to change without notice.

Specifications
Audio
Gain
ASA 111, ASA 121 .................. See the table below. Tested with an unbalanced output and a
20k ohm load.
ASA 131 ................................... See the table below. Tested with a 20k ohm output load.
Input Channel Output
Left Right
signal signal -1 dB
signal ——* -7 dB
——* signal -7 dB
* Tested with this input remaining connected.
ASA 141 ................................... See the table below. Tested with an unbalanced output and a
20k ohm load. Gain numbers are ±2 dB.
Input Channel Output Wiring
Left Right Unbalanced Balanced
0 dB 0 dB +3 dB -3 dB
0 dB open +3 dB -3 dB
0 dB 50 ohms -3 dB -9 dB
Frequency response
ASA 111, 121, 131 ................... 20 Hz to 20 kHz, ±0.05 dB
ASA 141 with -10 dBV, +4 dBu, or +15 dBV
20 Hz to 20 kHz, -3 dB to +1 dB
THD + Noise
ASA 111, 121, 131 ................... 0.03%, 20 Hz to 20 kHz at nominal level
ASA 141
-10 dBV input ................ 0.05%, 1 kHz, 1% from 40 Hz to 20 kHz
+4 dBu input .................. 0.05%, 1 kHz, 1% from 50 Hz to 20 kHz
+15 dBV input ............... 0.05%, 1 kHz, 1% from 80 Hz to 20 kHz
S/N ................................................ 130 dB at maximum output
Audio input
Number/signal type
ASA 111, 121, 141 ................... 1 stereo, unbalanced
ASA 131 ................................... 1 stereo, balanced
Connectors
ASA 111 ................................... (1) 3.5 mm male stereo mini jack (tip-ring-sleeve)
ASA 121, 141 ........................... 1 pair of male RCA (tip-ring)
ASA 131 ................................... (1) 3.5 mm captive screw connector, 5-pole
Impedance
ASA 111, ASA 121 ..................
22k ohms (one input terminated);
4k ohms (both inputs terminated)
ASA 131 ................................... 24k ohms (one input terminated);
7k ohms (both inputs terminated)
ASA 141 ...................................
5.4k ohms (both inputs terminated)
Nominal level
ASA 111, 121 ........................... -10 dBV (316 mVrms)
ASA 131 ................................... +4 dBu (1.23 Vrms)
ASA 141 ................................... +10 dBV (316 mVrms) or +4 dBu (1.23 Vrms)

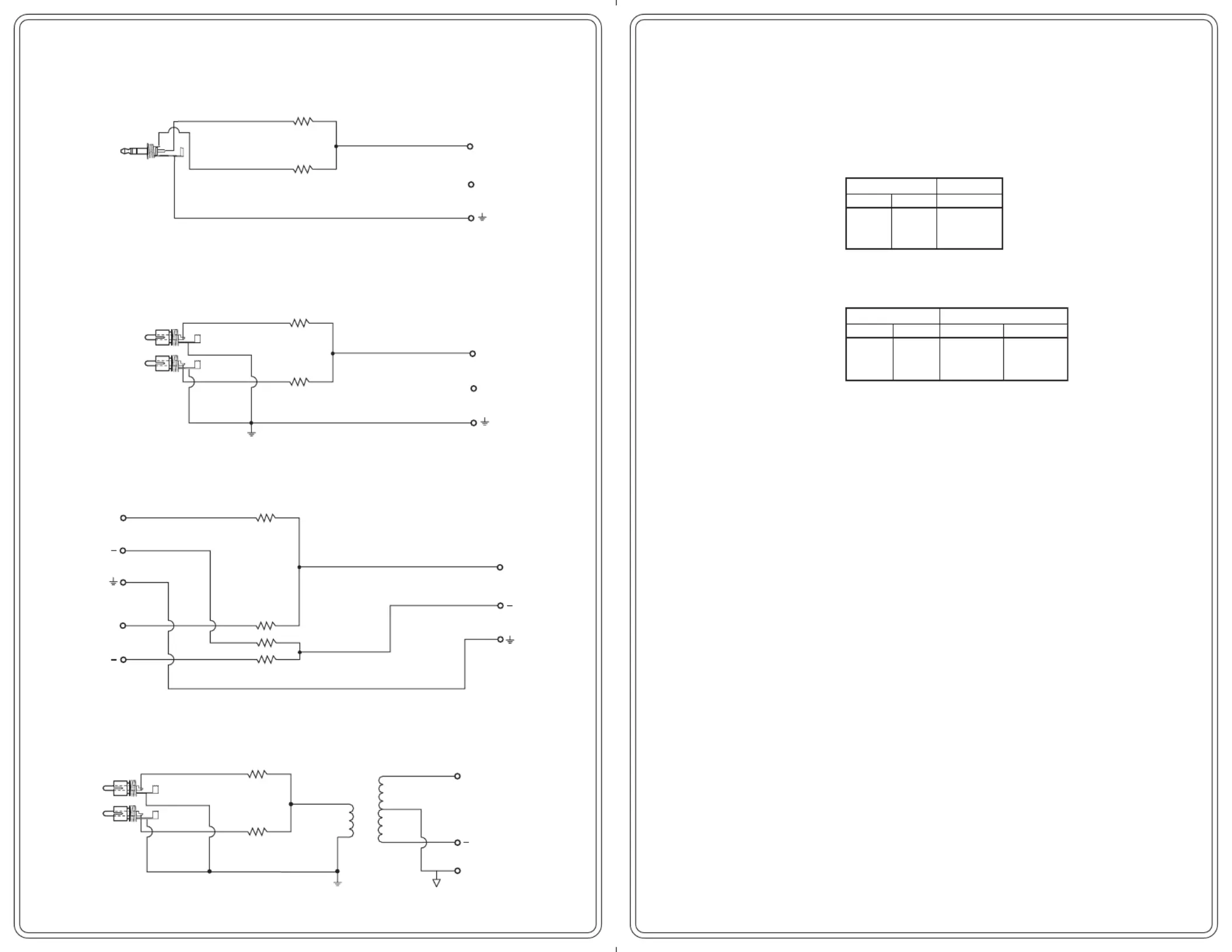

Drawings
ASA 111 (part #60-738-01)
+
Input Tip (L)
Ring (R)
NC
Output
Input ground
ASA 121 (part #60-739-01)
+
Inputs
L
R
NC
Output
ASA 131 (part #60-740-01)
+
+
Inputs
L
R
+
Output
ASA 141 (part #60-804-01)
+
Output
Input ground Output ground
Inputs
L
R
