The Extron CSR 6 (PN 26-575-01) is a high quality, captive screw plug to an RCA female
audio adapter, with 6" (15 cm) cable length.
It converts a 5 pole captive screw connection to RCA female audio connectors for quick and
convenient balanced (captive screw) to unbalanced (RCA) audio connections.
The captive screw plug works with input or ouput connectors of many Extron products.
CSR 6
Captive screw plug to RCA female audio adapter
1
2
3
4
5
+
−
+
−
L
R
Captive Screw
L
Center Ground
RCA Jack
(white)
R
Center Ground
Unbalanced

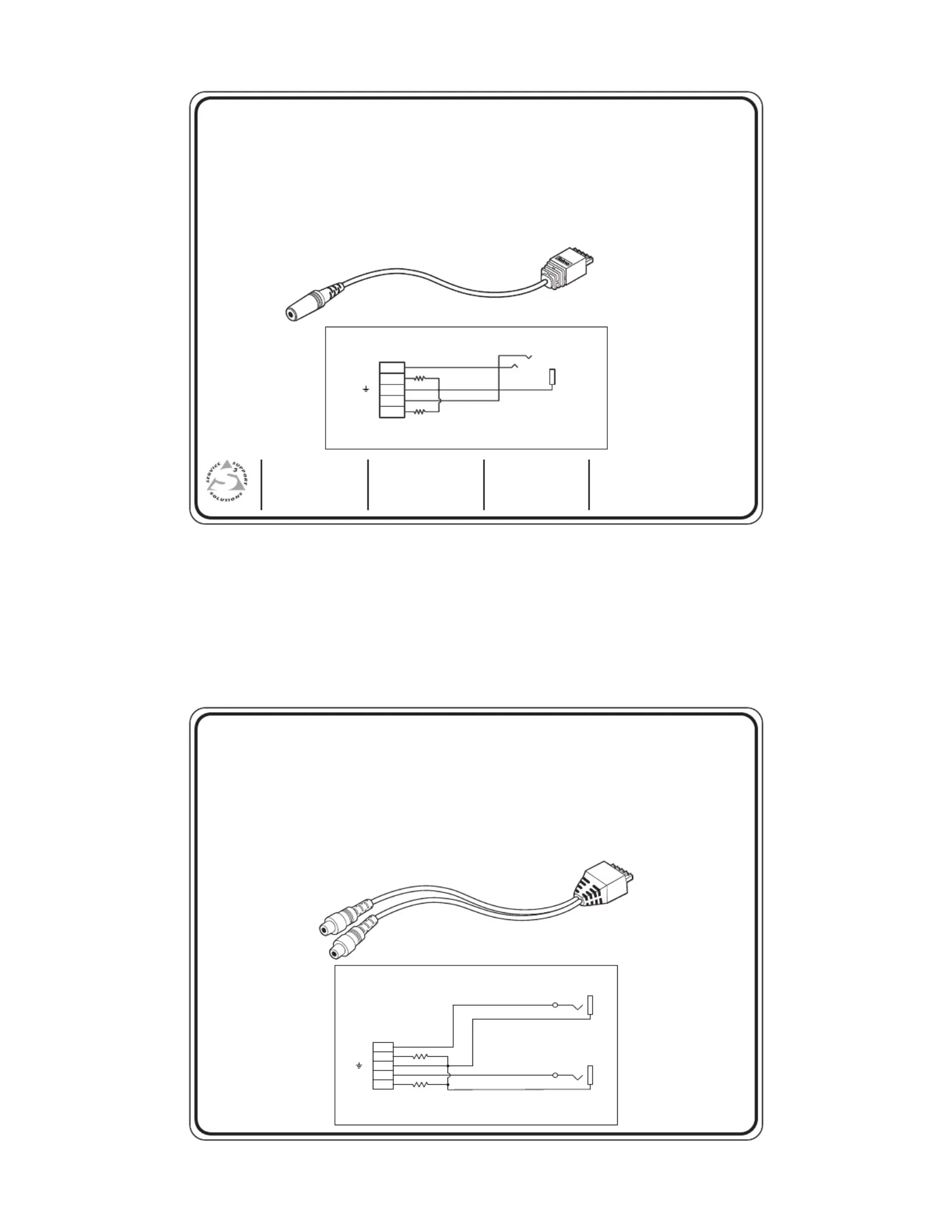

Wiring Diagram for CSR 6
RCA Jack
(red)
Captive Screw
Connector
RCA female
audio connectors
Extron Electronics, USA
1230 South Lewis Street
Anaheim, CA 92805
USA
714.491.1500
Fax 714.491.1517
Extron Electronics, Europe
Beeldschermweg 6C
3821 AH Amersfoort
The Netherlands
+31.33.453.4040
Fax +31.33.453.4050
Extron Electronics, Asia
135 Joo Seng Road, #04-01
PM Industrial Building
Singapore 368363
+65.6383.4400
Fax +65.6383.4664
Extron Electronics, Japan
Kyodo Building
16 Ichibancho
Chiyoda-ku, Tokyo 102-0082 Japan
+81.3.3511.7655
Fax +81.3.3511.7656www.extron.com
68-1174-01
Rev. C
11 07
The Extron CSM 6 (PN 26-620-01) is a high quality, captive screw plug to a 3.5 mm mini jack
adapter, with 6" (15 cm) cable length.
It converts a 5 pole captive screw connection to a female mini jack, so that an Extron
3.5 mm mini plug to mini plug audio cable can be used for quick and convenient connection.
The captive screw end can plug into input or ouput connectors of an Extron product.
CSM 6
Captive screw plug to 3.5 mm mini jack adapter
Captive Screw
Connector
3.5 mm Mini
Stereo
Wiring diagram for CSM 6
+1
L
R
2
3
4
5
Unbalanced
Captive Screw Mini Jack
Ground
(sleeve)
L (tip)
R (ring)
+
-
-
Product Specifications
Brand: | Extron |
Category: | Cables for PCs and peripherals |
Model: | CSR 6 |
