Page 1/9

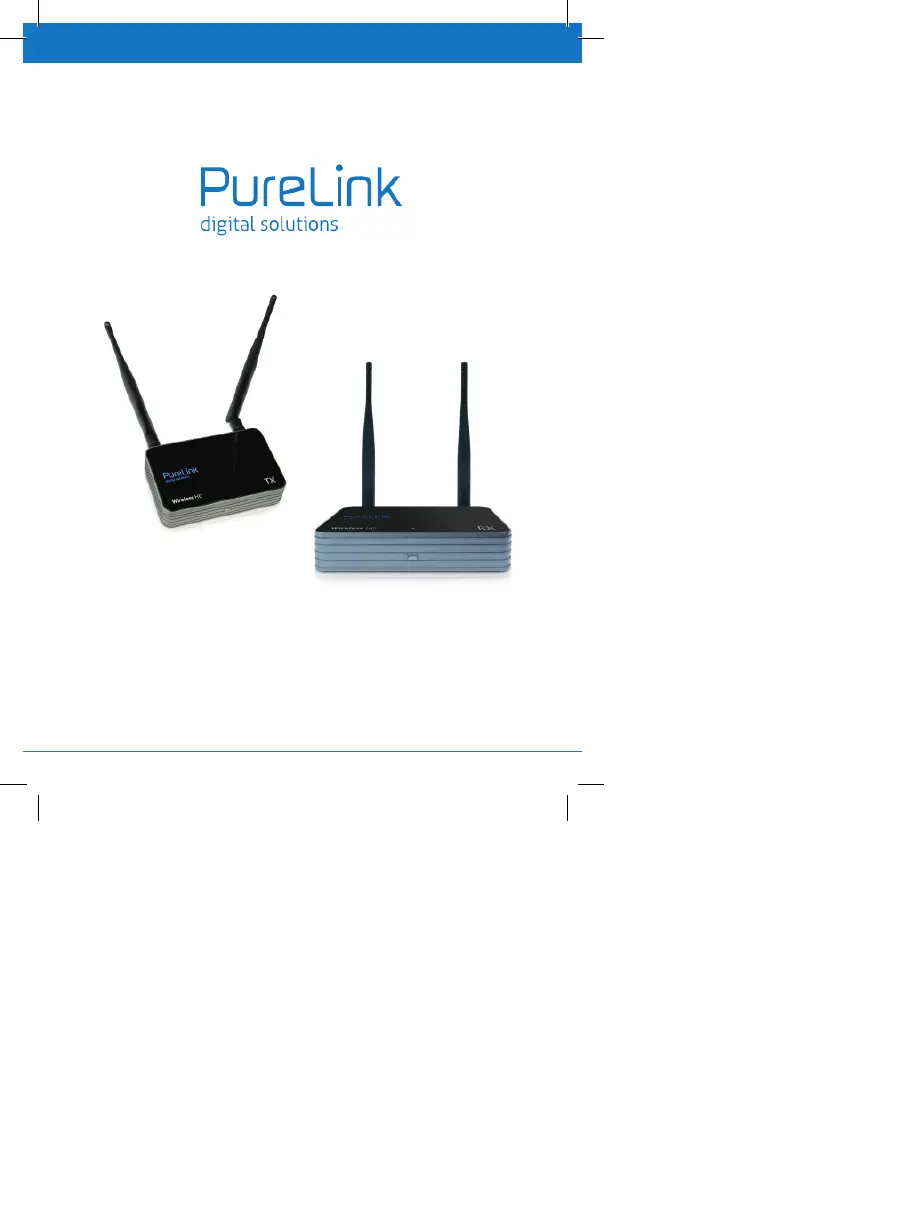

CSW300 | CSW300-RX
User Manual | Benutzerhandbuch
-02- -0
SAFETY WARNINGS
ā¢ To prevent short circuits, this product should only be used inside and only in dry spaces. Do not
expose the components to rain or moisture. Do not use the product close to a bath, swimming pool
etc.
ā¢ Do not expose the components of your sytems to extremely high temperatures or bright light
sources.
ā¢ In case of improper usage or if you have altered and repaired the product yourself, all guarantees
expire. PureLink does not accept responsibility in the case of improper usage of the product or
ī whenī theī productī isī usedī forī purposesī otherī thanī speciī„ed.ī PureLinkī doesī notī accept
responsibility for additional damage other than covered by the legal product responsibility.
ā¢ This product is not a toy. Keep out of reach of children.
ā¢ Do not open the product: the device may contain live parts. The product should only be repaired
ī orīservicedībyīaīqualiī„edīexpert.
ā¢ Only connect the adapter to the mains after checking whether the mains voltage is the same as the
ī valuesīonītheī identiī„cationītags.ī Neverīconnectīanī adapterīorī powerī cordīwhenī itīisī damaged.
In that case, contact your supplier.
1. INTRODUCTION
Congratulations on your purchase of the PureLink CSW300, which allows you to send a connected HD
signal wirelessly to your HDTV or HD projector.
TheīCSW300īisītheīidealīproductīforīWirelessīHDīapplications.īSometimesīyouīmayīī„ndīthatīaīcabledī
connection is not suitable, a long HDMI cable is not available or a cabled connection is just not an
option. You can use the CSW300 for all of your HD wireless applications, such as home theatre, cross-
room HD, meeting rooms or for game room applications.
The CSW300 also includes an easy remote control extension with the IR pass-through function, allo-
wing control of the connected source, such as set-top box, Blu-ray player or other streaming player
from the HDMI extenderās receiving end.
You can also connect up to 4 wireless receiver modules (CSW300-RX) to one single transmitter and
simultaneously use the loop-through port. The overall system capacity is limited to a maximum of
4 sink devices at once.PureLink products are manufactured with the utmost precision and of top
quality. Please read this manual carefully and follow the instructions in order to get the very results
from this product.
2. PACKAGE CONTENT
3.
St
Us
use
St
Us
St
(Sk
pla
rec
St
Co
St
Co
St
Co
CSW300 (Set)
1x PureLink CSW300 Transmitter (TX)
1x PureLink CSW300 Receiver (RX)
4x Antenna
1x IR Receiver
1x IR Emitter
2x Power adapter 5V1A (Micro USB)
1x Manual
CSW300-RX (Receiver)
1x PureLink CSW300 Receiver (RX)
2x Antenna
1x IR Receiver
1x Power adapter 5V1A (Micro USB)
1x Manual
-04-
4. OPERATION
A. Installation
1. MakeīsureīyourīinputīACīvoltageīisīcompliantītoītheīadapterīspeciī„cations.ī
2. Only use the power adapters provided with the CSW300. If you use your own adapter, make sure
the power output is 5V DC, 1A.
3. In a direct line-of-sight, the maximum range of A/V signal transmission can reach up to about
100 meters. This distance can be shortened by obstacles or walls placed between transmitter and
receiver. The optimum indoor range is under 100m.
4. To ensure a good infrared remote control operation, aim your remote control* at the IR receiver of
theīCSW300īandīpressītheībuttonsīī„rmly.īForīsomeīremoteīcontrolsīitīmayībeīnecessaryītoīpressī
and hold each button for about a second. The working angle of the IR receiver is +/- 15Ā°.
5. The remote controller has to be used within the distance of 0.3m - 5m at a working angle of
+/- 15Ā°.
* The max. transmission distance (100m) is reliant on optimum conditions. Other devices in the
vicinity using the 5GHz band (WiFi networks or other wireless video transmitters) can lead to inter-
ference and a signiī©cant decrease of the transmission distance or picture stability.
B. Transmitter & Receiver Pairing MODE
1.ī FirstīpressītheīāMODEāībuttonīonītheīreceiverāsībox.
2.ī YouīwillīseeīaīmessageīāConnectingīthroughīPairingī...īāīonīscreen.
3.ī ThenīpressītheīāMODEāībuttonīonītheītransmitterāsībox.
4. Connection will be auto-established after once successfully paired.Wait for a few seconds for auto
connection.
C. IR Extending Function
1. Make sure the IR emitter has been installed properly on the transmitterās box.
2. Make sure the IR receiver has been installed properly on the receiverās box.
3. Use the remote control of your source device to control the source form the receiverās box.
NOTE: Please do not cover CSW300 transmitter and receiver with any object! Those objects can
block the air circulation and cause serious defects and injuries. The warranty will also be void.
5.
Th
be
C
P
M
(P
N
C
6.
1.
2.
ī
3.
4.
ī
-0
