Page 1/9
1
Installation Guide
AT-USB-EX100-KIT
IMPORTANT: Visit https://www.atlona.com/product/AT-USB-EX100-KIT for the latest
rmware updates and User Manual.
1 x AT-USB-EX100-TX
1 x AT-USB-EX100-RX
2 x 5 V / 4 A Power Supplies
4 x Mounting Plates
8 x Mounting Screws
1 x Installation Guide
Package Contents
HDBaseT Extender Kit for USB 2.0
AT-USB-EX100-KIT
The Atlona AT-USB-EX100-KIT is a long-distance extender kit for high speed USB signals. It
supports transmission of USB 2.0 data up to 330 feet (100 meters) using a single, cost eective
Category-type twisted pair cable. The AT-USB-EX100-KIT is ideal for popular conferencing
applications such as Zoom® and Microsoft® Teams®, where USB components including
laptops, cameras, microphones, and speakers are located in dierent areas of the room. The kit
is also suitable in classrooms for routing USB between an interactive display or projector, and
the instructor’s laptop. The AT-USB-EX100-KIT includes both transmitter and receiver endpoints.
Compact enclosures and included brackets allow the devices to be discretely mounted near
computers and USB peripherals. The AT-USB-EX100-KIT is a great solution for connecting USB
components separated by distances not supported by traditional cabling.
2
Installation Guide
AT-USB-EX100-KIT
AT-USB-EX100-T X
DC 5V HDBaseT OUT
1 DEVICE
Connect up to two USB devices (e.g. mouse, keyboard, etc.) to these ports. These ports
provide 2.5 W per USB device interface.
2 HOST
Connect a USB cable from this port to the host computer.
3 FW
Connect a micro-USB to USB-A cable from this port, to a computer, to update the rmware.
4 PWR
The PWR LED indicator will glow green when the AT-USB-EX100-TX is powered.
5 DC 5V
Connect the included 5 V DC power supply to this power receptacle.
6 HDBaseT OUT
Connect a category cable from this port to the HDBaseT IN port of the AT-USB-EX100-RX.
Front
Rear
5 6
FW PWRHOSTDEVICE
2
1 3 4
AT-USB-EX100-TX
3
Installation Guide
AT-USB-EX100-KIT

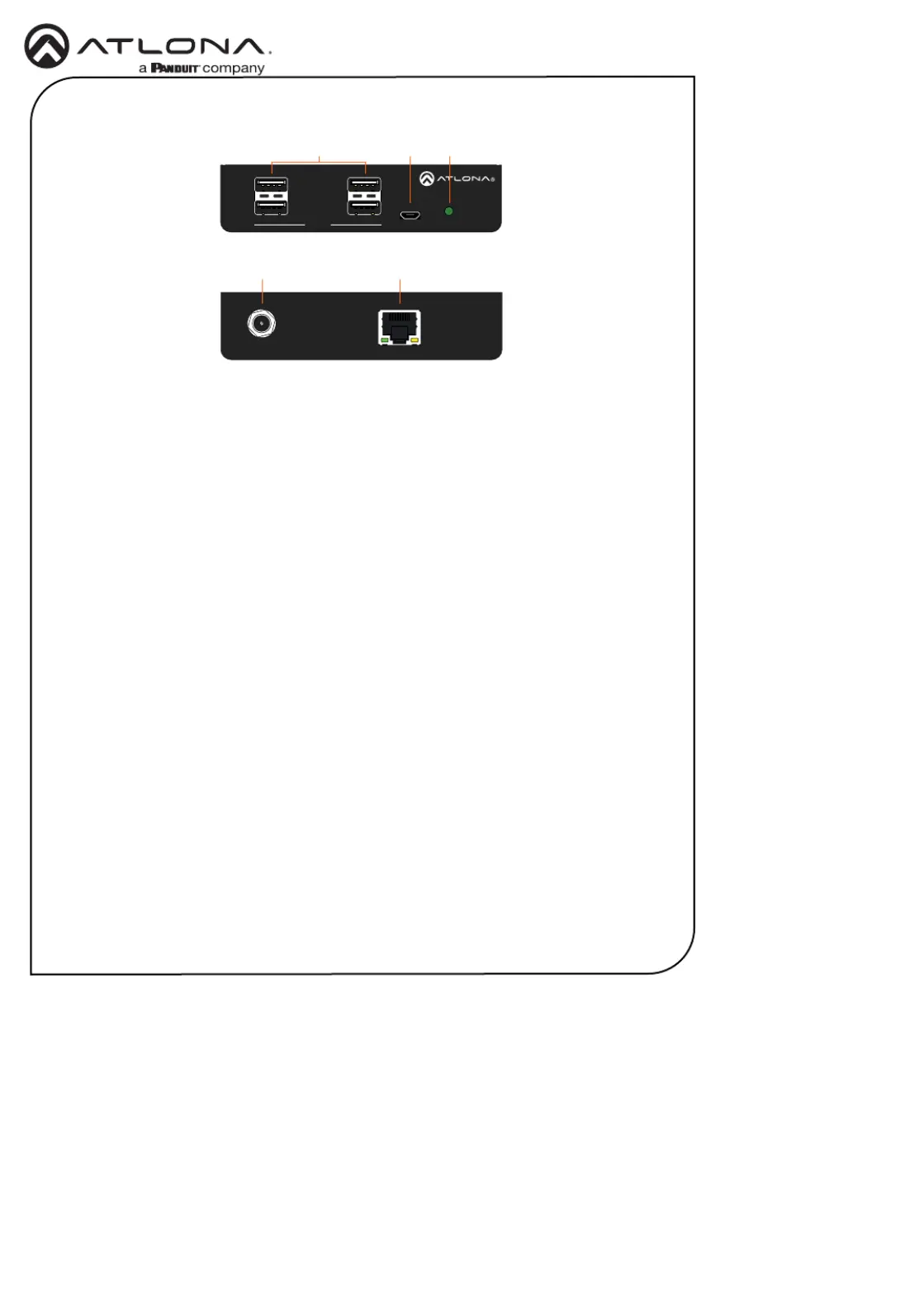

AT-USB-EX100-RX
DC 5V HDBaseT IN
FW PWRDEVICE
1 DEVICE
Connect up to four USB devices (e.g. mouse, keyboard, etc.) to these ports. These ports
provide 2.5 W per USB device interface.
2 FW
Connect a micro-USB to USB-A cable from this port, to a computer, to update the rmware.
3 PWR
The PWR LED indicator will glow green when the AT-USB-EX100-RX is powered.
4 DC 5V
Connect the included 5 V DC power supply to this power receptacle.
5 HDBaseT OUT
Connect a category cable from this port to the HDBaseT IN port of the AT-USB-EX100-TX.
Front
Rear
4 5
1 2 3
AT-USB-EX100-RX
