Page 1/6

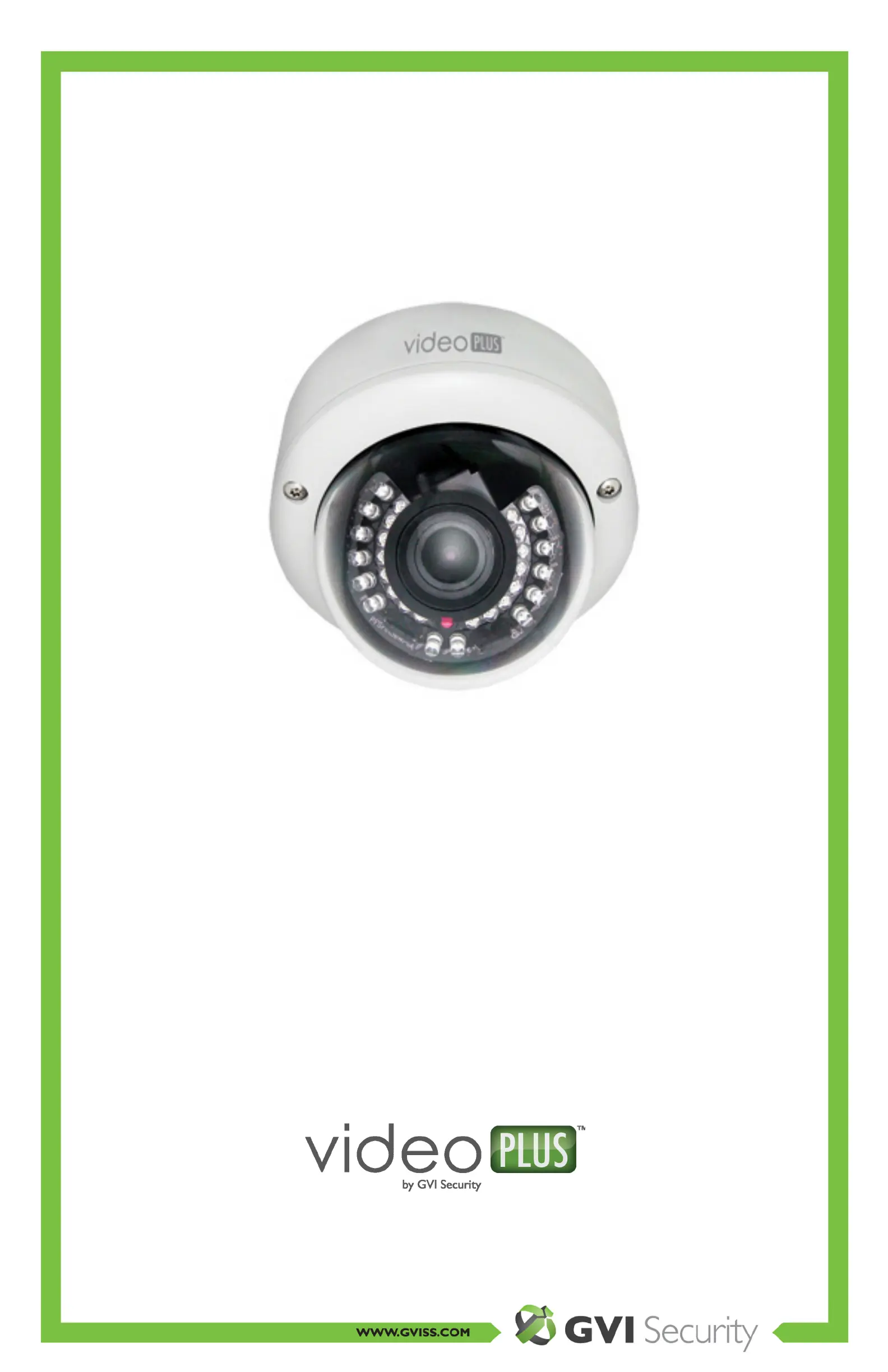

AID-3161S
610TVL, True Day/Night, IR Indoor Dome Camera
Quick Start Guide
2
GVI Security
1. Specifications
TV System PAL
NTSC
Image Sensor 1/3" Sony 760H Super HAD CCD II
Number O
f
Total Pixels 795(H)
x
596(V)
811(H)
x
508(V)
Resolution ; DSP Color:610TVL, B/W:630TVL ; Sony Effio-E
Minimum Illumination 0 Lux
Wide Dynamic Range ATR Digital WD (ATR:
A
daptive Tone-curve Reproduction) ;
128x Normal Camera (52dB)
Video Output ; Connector 1.0Vp-p Composite, 75Ξ© ; BNC
Signal Noise Ratio More than 52dB (AGC off)
Gamma Correction 0.45
Mechanical IR Cut Filter (ICR) Automatically Switches
(B/W Mode<2Lux, Color Mode>5Lux)
IR LED ;
Working Distance
30 units (IR LEDs on<2Lux, IR LEDs off>5Lux) ;
Outdoor: 15m
Menu OSD Control
Title TITLE (LOCATION)
Synchronizing System INTERNAL
Electronic Shutter
AUTO (1/50(60)~1/100,000sec.) /
MANUAL: 1/50(60), FL 1/120(100), 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000,
1/10,000sec.
Automatic Gain Control AUTO (4 Steps)
White Balance ATW / PUSH / USER1 / USER2 / ANTI CR /
MANUAL / PUSH LOCK
Back Light Compensation HLC / BLC / OFF
Flickerless ON
/ OFF
Dynamic Noise Reduction 2D
Language ENGLISH / JAPANESE / GERMAN / FRENCH / RUSSIAN / PORTUGUESE /
SPANISH / SIMPLIFIED CHINESE
Motion Detection ; Privacy ON / OFF (24x16 Zones) ;
ON / OFF (8 Zones Programmable, Mosaic)
Automatic IRIS ; Connector DC
Lens Mount Built-in DC Auto IRIS Lens
Lens, Angle of View(H) f2.8
mm~10mm / F1.2
Aspherical Auto Iris Lens/ 94.6Β° Β°~28.8
Power Suppl
y
; Consumption 12Vdc/24Vac(10.8~39Vdc/24Vac)
; IR on:7.5W,
IR off:4.0
W
Operation ; Storage
Temperature -10ΛC~50ΛC ; -20Λ ΛC~60 C
Operation ; Storage Humidit
y
Maximum:RH80% ; RH90%
Dimensions 140(DI
A
)Γ111(H)mm
Net
Weight 550
g
2. Key Features
ο· 1/3" Digital Wide Dynamic Infrared Camera (Sony Effio-E)
ο· Color:610TVL, B/W:630TVL
ο· 0 Lux (IR LEDs on at 2 Lux)
ο· Multi-Language OSD Control
ο· ATR Digital Powerful 128x WDR (52dB)
ο· Anti-Headlight (HLC)
ο· 2D Noise Reduction
ο· High Contrast Images
ο· Ideal for Backlight Environments
ο· Mosaic Privacy Mask
ο· Advanced Motion Detection Function
ο· Picture Quality Adjustable (Contrast/Sharpness/Hue/Gain)
ο· Built-in Varifocal Lens & Unique 3-axis Gimble Mechanism
3
GVI Security
3. Camera OSD Control
Use the following information for operating the various tools on the camera.
Press Up, Down to select a new item. Press Left, Right to select a menu item. Use the Enter button to display
the main menu, to confirm and to enter the submenus when theyβre available. Items with the symbol β<ββ in
the end contain sub-menus. For further settings of those items, select the desired item with the button ο or
ο and press the ENTER button to bring up the sub-menu and edit.
4. OSD Menu
Setup Menu
5. Setup Menu Functions and Options
1. LENS
MANUAL
AUTO<β
TYPE DC
V
IDEO
MODE
OPEN
CLOSE
A
UTO
SPEED
000-255
2. SHUTTER/AGC
AUTO<β
HIGH
LUMINANCE
MODE SHUT+AUTO IRIS
AUTO IRIS
BRIGHTNESS
000-255
LOW
LUMINANCE
MODE OFF
AGC
BRIGHTNESS X0.25; x0.50; x0.75;
x1.00
MANUAL<β
MODE
SHUT+AGC
SHUTTER 1/60* ; 1/100* ; 1/250 ; 1/500 ;
1/1000 ; 1/2000 ; 1/4000 ; 1/10000
AGC 6.00 ; 12.00 ; 18.00 ; 24.00 ; 30.00
; 36.00 ; 42.00 ; 44.80
