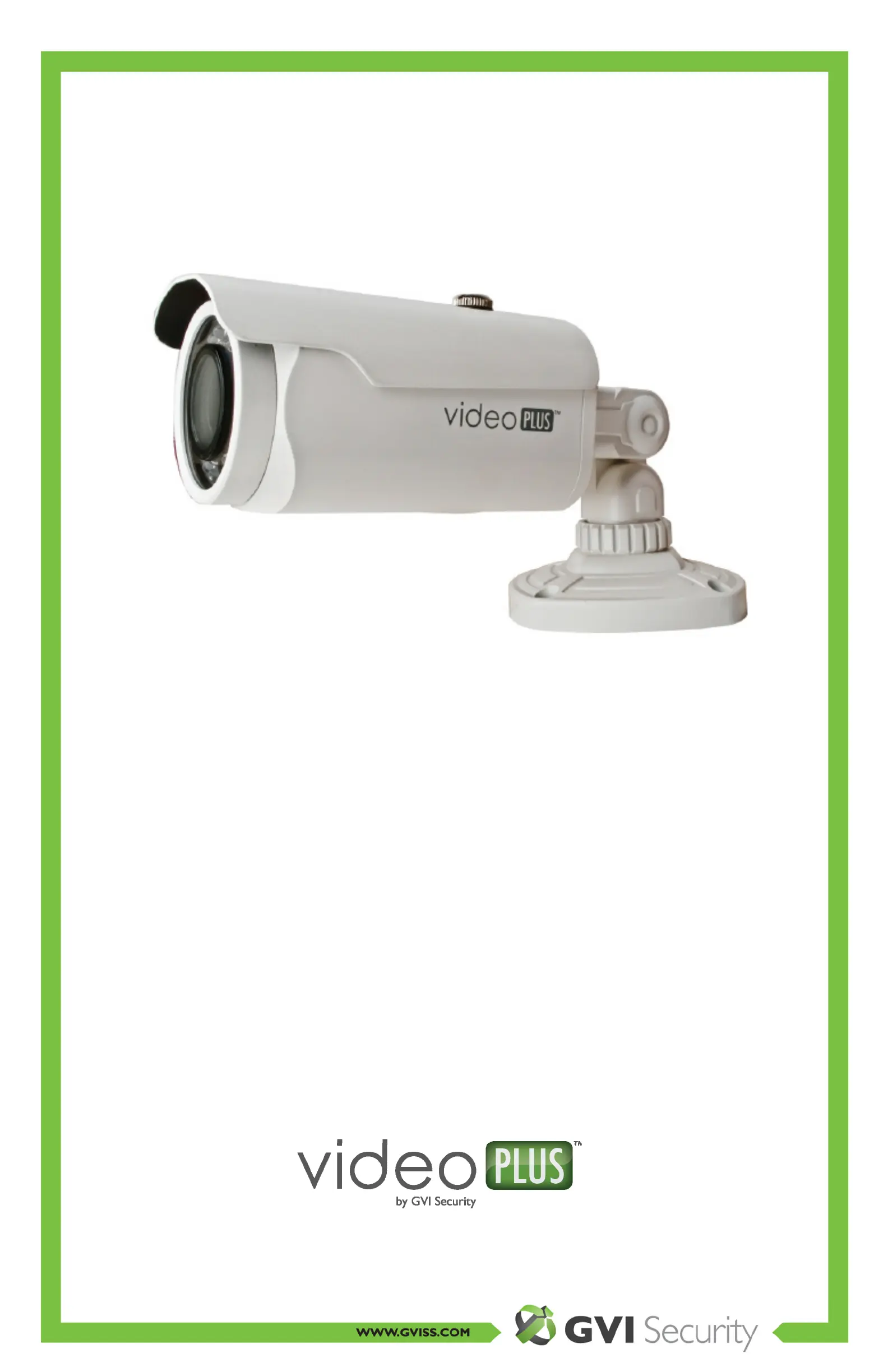

AHU-2161S
600TVL, Shadow Fighter, True Day/Night, Heater
IR Bullet Camera
Quick Start Guide
2
GVI Security
1. Specifications
Item600TVLHighResolutionCamera
PowerSource DC12V & AC 24V (Optional)
ImageSensor 1/3” SONY SUPERHADCCDII
TotalPixels 811(H) x 508(V) 596(V)(NTSC) , 795(H) x(PAL)
EffectivePixels 768(H) x 494(V) 582(V)(NTSC) , 755(H) x(PAL)
ScanningSystem 2 : 1 Interlace
Synchronization Internal
H.Resolution 600TVLine
Min.Illumination 0.3 Lux (F 1.3)
S/N(Ysignal) 52dB(AGCOff,WeightOn)
OnScreenDisplay Built
–
in
AGC OFF / LOW / MIDDLE / HIGH
Shutter OFF / FLK / 1 /50~1/100000 / AUTO Selectable
DAY / NIGH
T
Color/ BW / EX
T
/AUTO Selectable
D‐WDR ON / OFF(LevelAdjustable)
BLC OFF / BLC / HLCSelectable
WhiteBalance ATW / COLOR‐ROL / AWC‐SET/MANUAL
(ColorTemp.1700K~11000K)
2DNR ON / OFFSelectable
EFFECTS Mirror / Font‐Color / Contrast / Sharpness / DPC
MotionDetection ON / OFF(4 ProgrammableZone)
PrivacyMasking ON / OFF(8ProgrammableZone)
OperationalTemp. ‐10Ԩ~ +50Ԩ/30%to80%RH
2. Features
1. Super High Resolution
The Sony Super HAD II 410K CCD is an innovative new DSP Technology.
2. 2D Digital Noise Reduction
The high performance DSP chip reduces the gain noise in digital image processing, producing clear
sharp images in low light conditions.
3. D-WDR (Digital Wide Dynamic Range)
With the innovative DSP Technology, the camera obtains clear, high-quality pictures, even with
strong backlighting.
4. DPC (Defect Pixel Correction)
This feature detects and corrects defective pixels in a camera image sensor array.
5. Day/Night
The camera identifies whether it is day or night and automatically switches to the appropriate
mode, depending on its environment.
6. Motion Detect
The camera detects motion and generates signals without additional external sensors. This features
enables the camera to efficiently monitor activity by connecting to an alarm.
3
GVI Security
3. Camera OSD Control
Use the following information for operating the various tools on the camera.
Setup (Menu): Push Down
Press Up or Down to select a new item. Press Left or Right to select a menu item. Press Setup (Menu) to
access a submenu.
4. OSD Menu Structure
Setup Menu
