Wimberley, Inc. - - - Phone: 1 434 529 8385
1750 Broadway St Toll Free: 1 2746 -888-665-(USA & Canada)
Charlottesville, VA
22902 USA www.tripodhead.com info@tripodhead.com
Made in USA

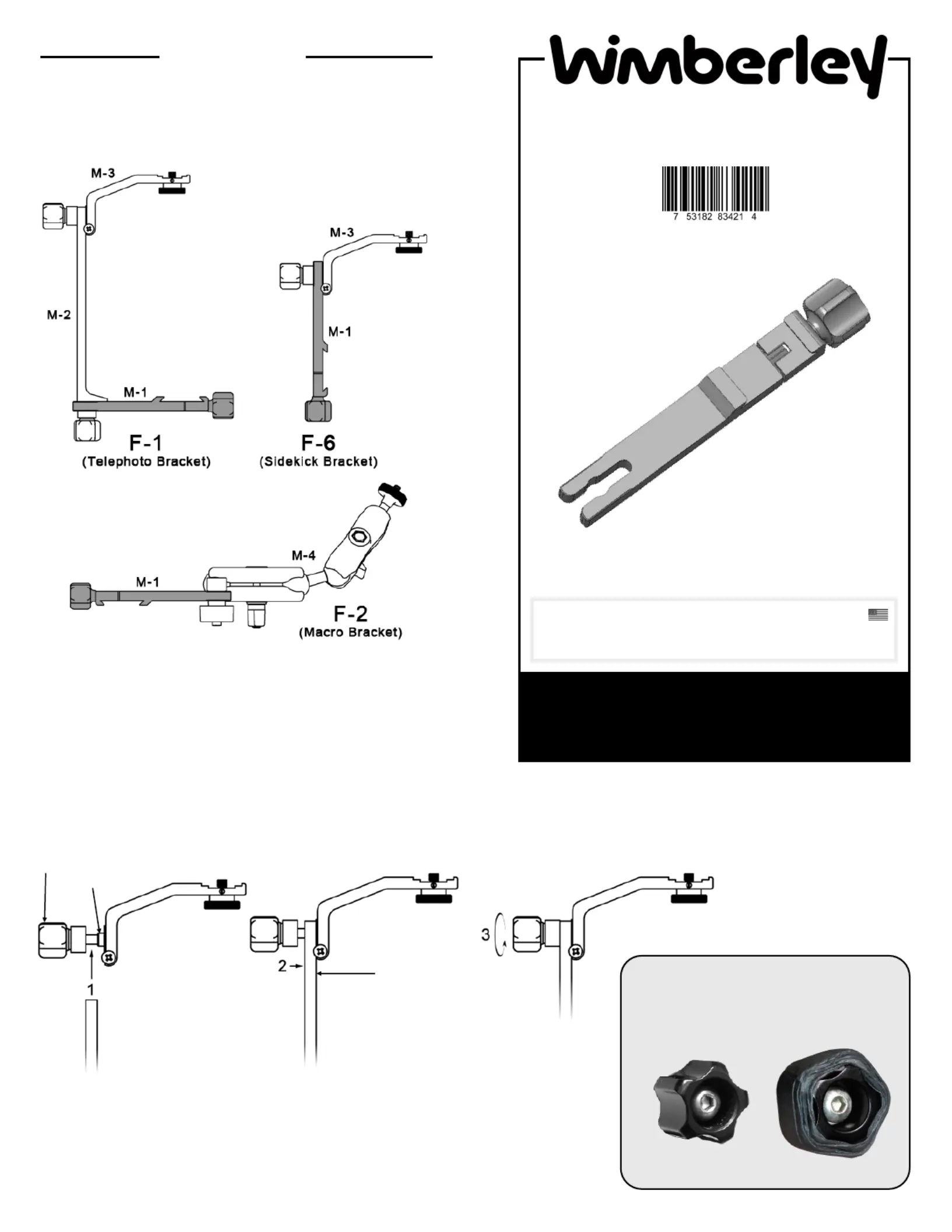

Package Contents:
• M 1 Module:- Quick Release Arm (Qty 1)
Wimberley, Inc. - - - Phone: 1 434 529 8385
1750 Broadway St Toll Free: 1 2746 -888-665-(USA & Canada)
Charlottesville, VA
22902 USA www.tripodhead.com info@tripodhead.com
5 Year Warranty – See www.tripodhead.com/warranty.cfm for complete details
The M 1 Quick Release -is one of the components of the
Wimberley Modular Flash Bracket System. It attaches to most
Arca Swiss style camera body or lens plates. It is included in -
the following combo units.
About the M 1-
Weight: 2.6 oz
Dimensions (Overall L x W x H): 5.6 x 1.0 x 1.0 in
Materials: Anodized 6061 Aluminum, stainless steel fasteners
Instructions continued on back>>
Connecting Flash Bracket Modules:
(The figure below shows the connection between M 3 and upright module; the same principle applies for other module connections.)-
knob
cylindrical nub
Unscrew the knob so that
the upright module can fit
between the cylindrical
nub and the knob base
Forked end of
module
Slip the forked end of the
module over the exposed
threads. Locate one of the
enlarged areas in the forked
end over the cylindrical nub.
Tighten the knob
securely.
Tip: if you find the metal knobs difficult
to grip, try wrapping several layers of
self fusing rubber grip tape (-3M 2155)
around the knob to cushion it and make it
easier to grip in the field.
Feel free to contact us
if you have any questions.
M 1- Quick release Arm -
Flash Bracket Module
Attaching the M 1 to a Lens or camera plate:-
The M 1 attaches to your Arca Swiss style lens plate using a narrow low profile quick release (QR) clamp.- - - -
The clamp on the bottom (M 1) module can be attached to the bottom dovetail of an Arca Swiss style plate or be flipped to attach to the - -
top dovetail of a double dovetail.
(The M 1 is not compatible with most Manfrotto or Gitzo quick release plates.)- -
Wimberley, Inc. ©2017, All Rights Reserved Rev. 170707
Beanbag Combo Using the M-1:
Attach two M 1 quick release arms to the bottom of your lens foot in opposite directions. This forms a -
snowshoe like foot for the bottom of your lens which gives you added stability when working from a beanbag.-
Thank you for your interest in Wimberley products. If you have any questions or comments please feel free to contact us.
Attach M 1 Quick Release to single dovetail plates:- Use the AP 11 to -
convert older, single dovetail plates made by Really Right Stuff and Kirk to
the double dovetail configuration for greater flexibility in bracket attachment.
Single dovetail
plate
AP-11
