Page 1/4
www.sven.fi

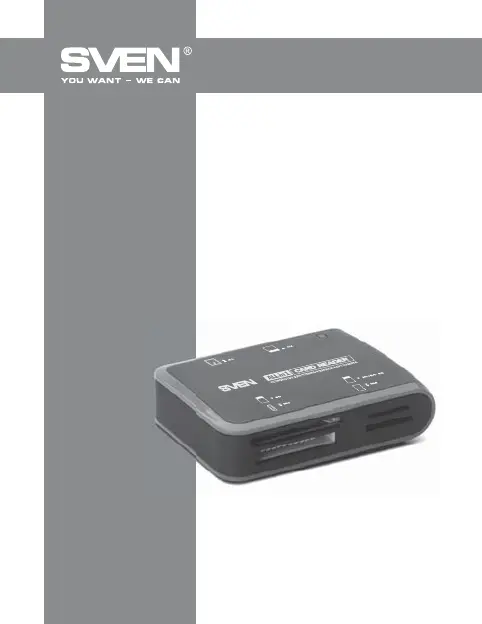

USER’S MANUAL
External Card Reader
ac-115
ENG
1
User’s Manual
ac-115
MS
SD
Micro SD
M2
CF
XD
bc
h
d
g
f
e
a
a
Fig. 1. Card reader construction
Congratulations on your purchase of the Sven card reader!
USAGE
Sven AC-115 external card reader is designed for reading/writing memory
cards.
SAFETY PRECAUTIONS
• Do not disconnect the device while reading/writing a memory card to avoid
data loss.
• Insert a memory card into the slot according to the table below. Use one
memory card at a time only!
SPECIAL FEATURES
• Compatible with USB 2.0 connectors supporting Plug & Play technology
• Supports all modern memory cards: CF, MD, SD, SDHC, MMC, TF, Micro
SD, M2, XD, MS, MS PRO, MS Duo, MS PRO Duo, etc.
SYSTEM REQUIREMENTS
• Available USB 2.0 port
• S Windows XP/Vista/7,О
Macintosh OS 9.0 or up, Linux
DESCRIPTION
a Mini USB port
b Reading/writing LED
c CF Slot
d XD Slot
e Micro SD Slot
f M2 Slot
g SD/MMC Slot
h MS Slot
ENG
2
External Card Reader
M2
Micro SD, T-FLASH
XD, XD H Type, XD M TYPE
CF I/II, CF Ultra I, CF Extreme, CF Extreme III, MD
SD, SDHC, Extreme SD, Extreme III SD, Ultra II SD,
MMCI, MMCII, MMC 4.0, Ultra MMC
MS, MS Pro, MS Duo, MS Pro Duo, Extreme MS Pro,
Extreme III MS Pro, HS MS MG Pro Duo, MS MagicGate,
MS MG Pro, MS MG Duo, MS MG Pro Duo, MS ROM, HS
MS, MG Pro, Ultra II MS
Technical support is on www.sven.fi
MEMORY CARDS INSTALLATION TABLE
Slots
M2 Slot
Micro SD Slot
XD Slot
CF Slot
SD Slot
MS Slot
Memory cards supported
OPERATION MODE LED
• If the device is connected to a USB port and the memory card is inserted
into the slot correctly, LED will light up. b
• During reading/writing LED ashes.bfl
PACKAGE CONTENTS
• Card reader – 1 рс
• USB cable – 1 рс
• User’s manual – 1 рс
• Warranty card – 1 рс
TROUBLE SHOOTING
• If the device does not operate when connected to a USB port, make sure
the memory card is inserted into the slot correctly.
Product Specifications
| Brand: | Sven |
| Category: | Memory card reader |
| Model: | AC-115 |
