Page 1/2

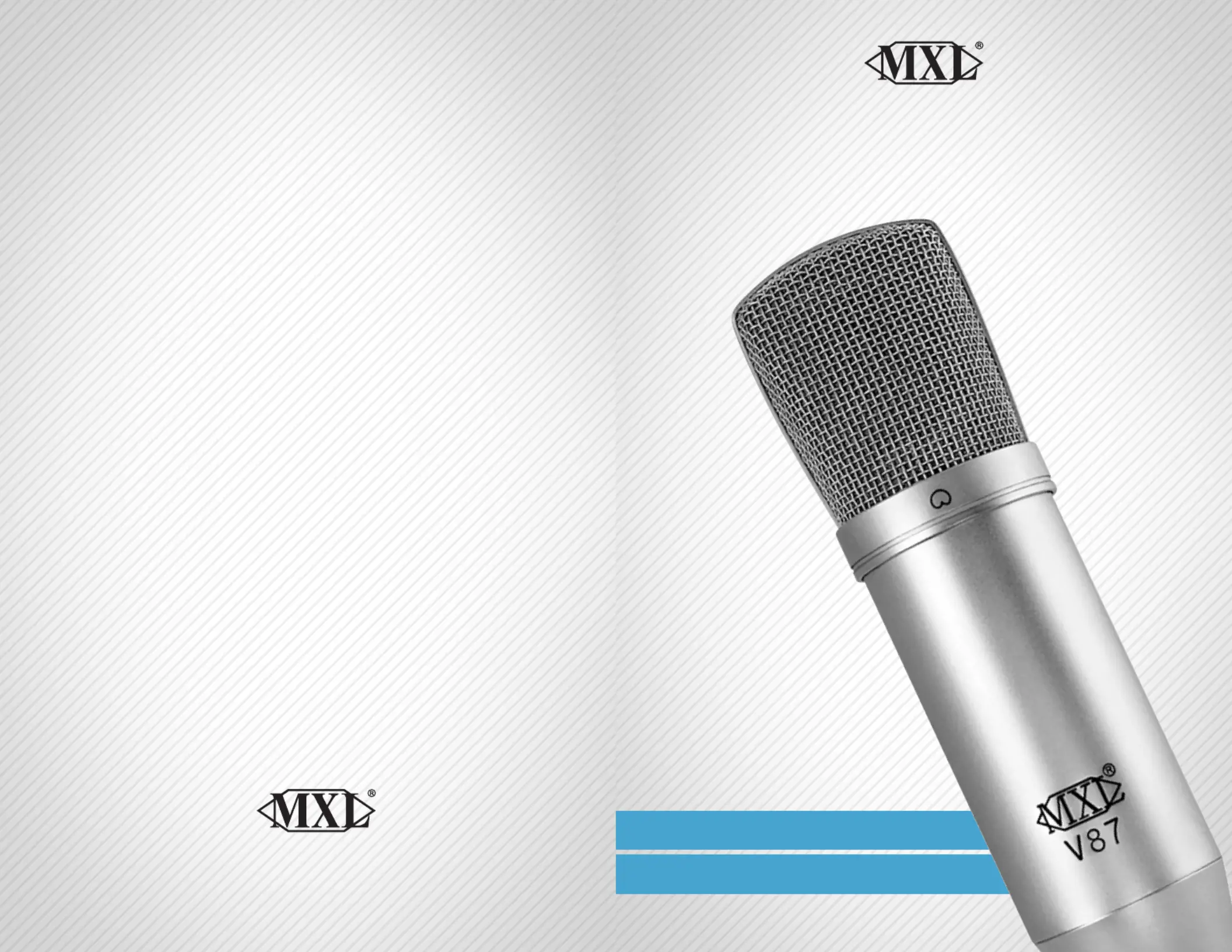

Low-Noise
Condenser Microphone
A Division of Marshall Electronics
310-333-0606
800-800-6608
Fax: 310-333-0688
www.mxlmics.com
sales@mxlmics.com
Warranty
MXL microphones are guaranteed against defects in materials and workmanship
for one year from the date of purchase. If you encounter any problem with this unit,
promptly contact the company from which you purchased it for assistance. The
original dated sales receipt will be necessary for any warranty claim. Do not send
any unit directly to us without prior authorization from our service department.
Warranty coverage is limited to repair or replacement (at our option) of the
microphone, and does not cover incidental damages due to use of this unit, nor
damage caused by accidental misuse of this product.
Low-Noise
Condenser Microphone
Contents
Care
Unpack your MXL microphone package carefully and verify that all of the following items
are included:
• MXL V87 Mic
• Metal Mesh Pop Filter
• Low Profile Shockmount
• Hard Mount Mic Stand Adapter
• Microfiber Cleaning Cloth
If any of these items are missing or damaged, contact the company from which you
purchased the microphone.
Dust and foreign material can reduce the performance of a microphone over time, so
you should store the MXL V87 in its case when not in use.
Thank you for choosing the For best MXL V87 Low-Noise Condensesr Microphone.
results, please take a few moments to read this manual and familiarize yourself with
proper operation and care of this microphone.
Frequency ChartPolar Pattern
Type: .......................................................Condenser microphone
Capsule: .....................................................................................................................
32mm capsule with Gold-sputtered, 6 micron diaphragm
Frequency Response: ......................................................20 Hz – 20 kHz
Polar Pattern: ......................................................................................Cardioid
Impedance: ......................................................................................200 ohms
S/N Ratio: ..............................................85.5 dB (Ref. 1Pa A-weighted)
Max SPL for .5% THD: ........................................................................... 136 dB
Power requirements: ........................................48V Phantom power
Size & Weight: 47mm x 190mm / 1.66 in. x 7.48 in. 498.95g / 1.1lbs
Metal Finish: ............................................................................. Nickle plated
Technical Specications
General Characteristics
This microphone has a gold-sputtered diaphragm and a xed cardioid pickup pattern.
Condenser microphones are very sensitive, readily revealing very subtle sonic details.
They also tend to pick up sounds outside the pattern more than some designs, which
can lead to powerful feedback if you are not careful. We strongly advise experimentation
with placement and isolation requirements with the gain initially set low to avoid
equipment (and ear) damage. It is strongly advised to use a mesh pop-lter to avoid
moisture from damaging the capsule.
Power Requirements
The MXL V87 requires 48V phantom power (± 4V). If no sound is picked up by the
microphone, make sure that the phantom power on your mixer or separate power
supply is switched on.
Microphone Cable
xxxThe microphone cable can have a profound effect on the sound of any microphone.
Even the nest microphone will sound poor if the interconnect cable allows noise to
enter or causes distortion and loss of information. We recommend that you use the best
microphone cable that your budget will allow.
Shock Mount
The MXL shock mount can shift in shipment. Simply shift the nylon bands to center the
microphone in the assembly. Be sure that the wire clamp does not rest on the chassis of
the mount, as this impairs mechanical isolation. Slide the mount all the way to the rim
of the microphone for the most secure hold.
0
90
2
70
180
