CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
Metra. The World’s Best Kits.® MetraOnline.com © COPYRIGHT 2018 METRA ELECTRONICS CORPORATION REV. 3/15/18 INST99-8725B
I N S TA L L AT I O N I N S T R U C T I O N S
99-8725B
KIT FEATURES
ISO DIN radio provision with pocket
ISO DDIN radio provision
Includes parts to relocate the hazard switch panel
Painted matte black
KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) Hazard switch housing • D) Hazard switch bracket • E) Hazard switch housing spacer • F) Pocket
• G) (12) #8 x 3/8” Phillips screws • H) (1) #8 x 1 Phillips screw
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• Torx T20 screwdriver • Cutting tool
TABLE OF CONTENTS
Dash Disassembly...............................................2-3
Kit Preparation ................................................... 4-5
Kit Assembly
–ISO DIN radio provision with pocket ..................6
–ISO DIN radio provision with pocket .................. 7
WIRING & ANTENNA CONNECTIONS
(sold separately)
Wiring Harness: TBA
Antenna Adapter: 40-EU56
Steering wheel control interface: ASWC-1
A B C D FE
Mercedes C Class 2012-2015
G H
1.800.221.0932
|
MetraOnline.com
2
DASH DISASSEMBLY
Radio removal
1. Unclip, unplug, and remove the
dashboard trim panel above the radio.
This p anel a l so includes the center
a/c vents. (Figure A)
2. Unscrew (2) Torx T20 screws on the
top of the radio, just halfwa y (about a
half inch), then push the screws d own
to release the radio. Pull the radio out,
then unplug. (Figure B)
Display screen removal
3. Unclip and remove the l ower trim from
the speedometer cluster. (Figure C)
4. Unclip and re move the upper trim from
the speedometer cluster. (Figure D)
Continued on th e next page
(Figure A) (Figure C)
(Figure B) (Figure D)
REV. 3/15/2018 INST99-8725B 3

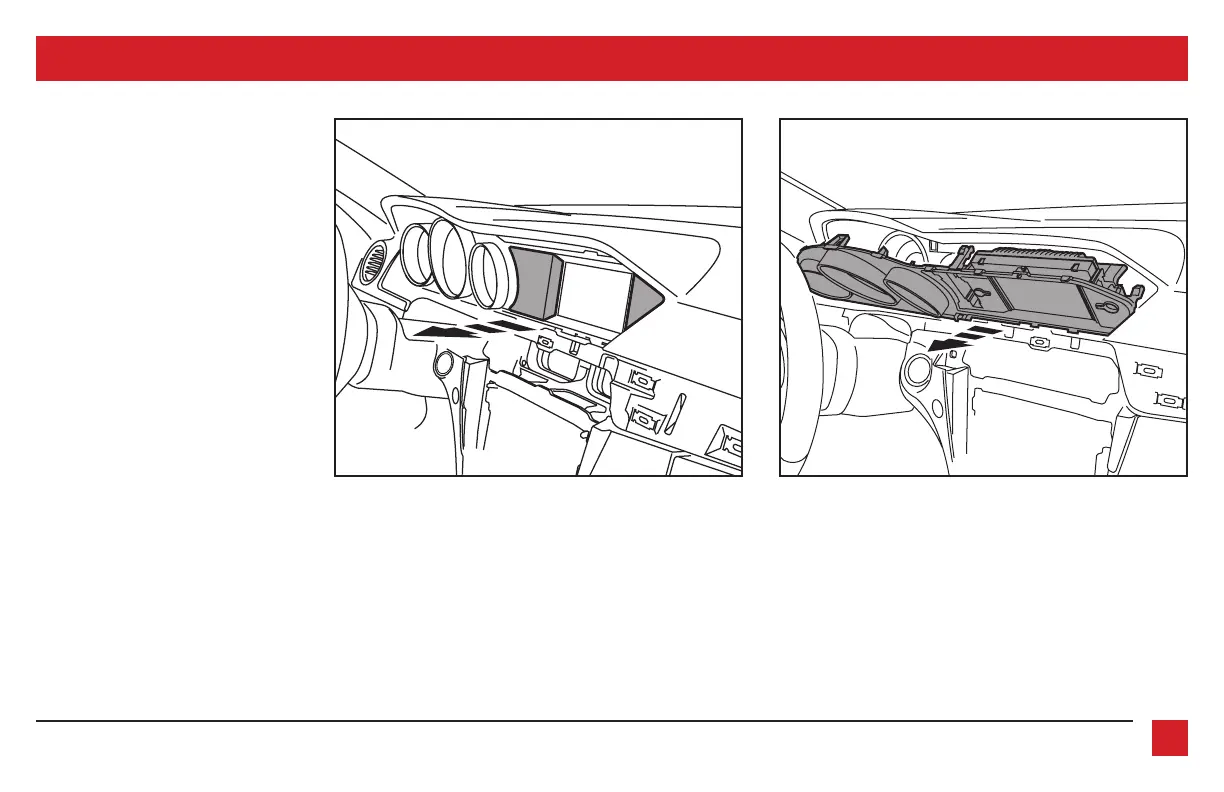

(Figure E) (Figure F)
DASH DISASSEMBLY (CONT.)
5. R emove the display screen trim panels
to the left and right of the screen by
pushing inwards toward the screen. This
will aid in removing the speedometer
trim plate in the next step. (Figure E)
6. Unclip and remove the speedometer
trim plate. This panel is held on by clips
at the top, and hinges on the bottom.
This trim plate will a l so include the
display s creen. Unplug the display
screen to completely remove the
trim plate. (Figure F)
Continue to Ki t Preparation
