Please read this user manual in detail and follow the instructions carefully before
using your new charger：
1.Keep the charger away from humidity and heat source while charging, ensure
proper cooling during use.
2.Make sure the battery cells is correct before charging, avoid over-discharge of
the battery.
3.This charger can only use for 2~6S Lipo (voltage 7.4~26V) battery as power
supply. Do not use an input power supply beyond the range of voltage, avoid
damage the charger or even cause dangerous.
Attention

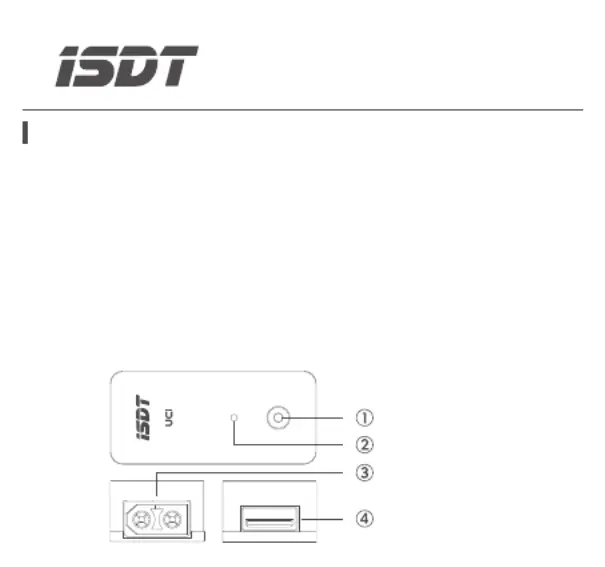

Operation button
Indicator light
XT60 power input port
USB output port
UC1 Smart Charger Instructions
Specifications
Type: UC1
Power input port: XT60
Input voltage: 2~6S LiPo (7.4~26V)
Max output current: 2A
Max output power: 18W
Charging protocol support:
QC2.0/3.0, FCP, BC 1.2
Operating temperature: 0 ~40 ℃
Size: (L × W × H) 48.5×22×14.5mm
Weight: 23 g
Indicator light status
Indicator
light
Instructions
Output
Solid green
light
Red light
quick flash
Red light
slow flash
Purple light
slow flash
Cyan light
slow flash
Charging
Internal circuit
abnormal,
charging stop
Low voltage
alarm,
the flash times
is the number
of battery cells
The input
voltage is
higher than
the battery
cells setting
Setting
state
Operating instructions
*All pictures, statements and text information of this product are for reference only.
Please refer to the actual information on the official website www.isdt.co.
SHENZHEN ISD TECHNOLOGY CO.,LTD reserves the right for final explanation and modification of the specification.
1. Plug the 2~6S Lipo battery with XT60 to input port, the indicator light turns
green means normal state. If the cell amounts setting on UC1 is not match the
battery cells, the indicator light turns purple or red at slow flash.
2. Press and hold the button for 3 seconds until the light turns cyan, it enters the
setup state to set the battery cells.
3. The cyan light flash times is the battery cells that have been set. Press the
button to alter the battery cells within 2~6S running in cycle. When the
cyan-light flash times are same as battery cells, press and hold the button
more than 3 seconds and it will save the setting and exit.
4. Press button can check the battery cells during charging. The flash times
of the green light is the battery cells.
5. When the red light flash slowly it indicates low battery capacity, you should
cut off to prevent the over-discharge, otherwise, it will consume current internal.
