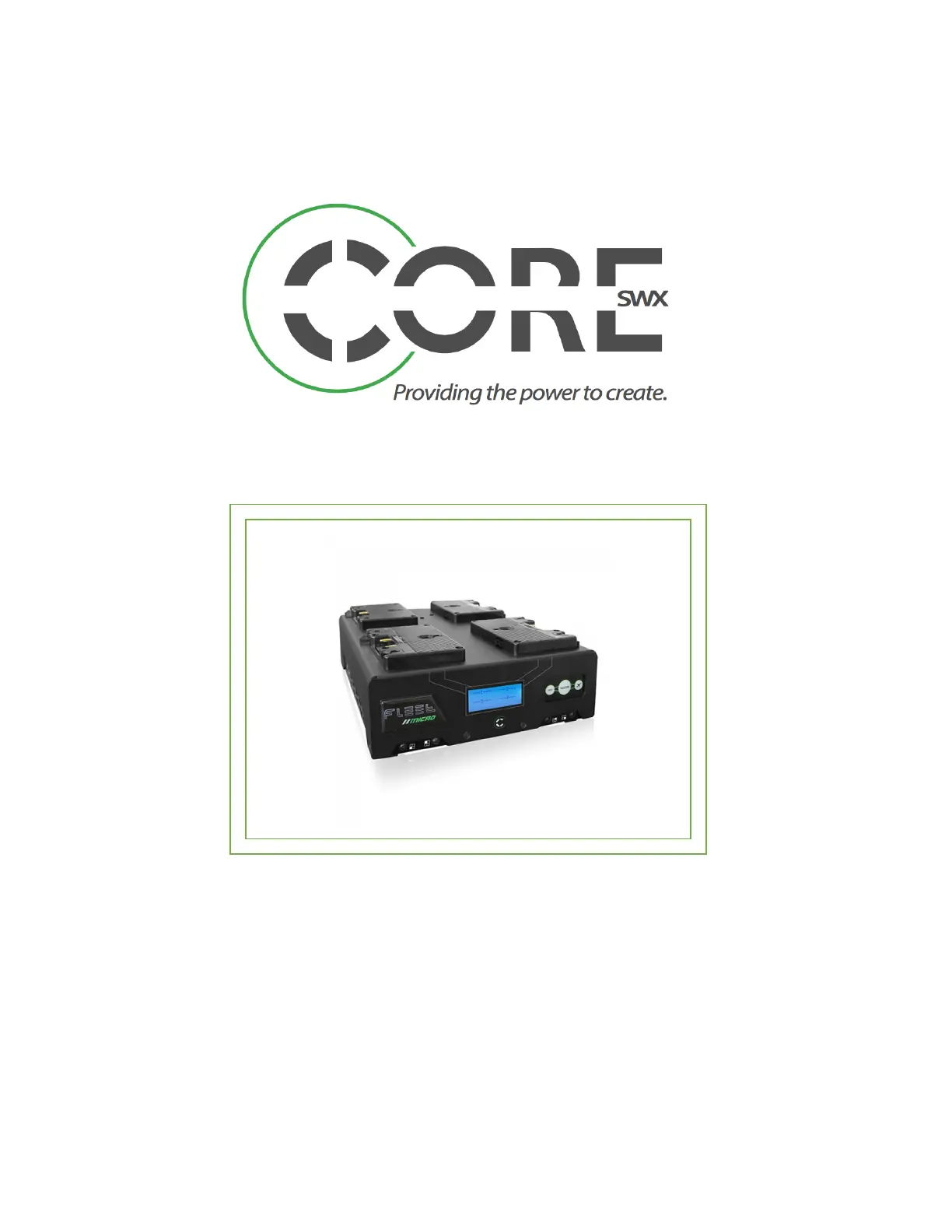

Page 1/9
Fleet Micro Series
Advanced Battery Charging System
Dual and Quad
Instructional Manual
!
Introduction:
Thank you for your choice in purchasing a Core SWX Fleet Micro Charger. The charger is designed to
provide you a safe and reliable charging platform for your battery packs. This product is at the pinnacle of
technological advancements, offering the features and performance of several different products, making
it the most advanced charging product in the industry.
Please read this manual to help understand and capitalize on the features of this charger.
Features:
• Complete battery management system for your battery packs
• -On board LCD to monitor the battery packs’ smart battery data
• TEST mode to determine battery health and recharge performance
• Micro USB for Firmware upgrades and communication to a PC battery management application
(future release)
• SafeFly mode charges the connected packs to up to 30% or discharge to under 30% to meet safe
Li- Ion battery shipment requirements
• -Cross compatible battery charging for RED® ® ® -, Anton/Bauer , IDX and most Li Ion battery
packs*
• -90w DC 4 pin XLR power supply to power most cameras.
• Battery Power Supply mode, parallels all the on-board battery packs to provide continuous power
via XLR output
*contact Core SWX for confirmation of battery pack compatibility.
Operation:
• -) Insert included AC power cord to the rear of the unit and flip adjacent switch to ON(
• LCD will illuminate, initially displaying Title Screen and Firmware version. Immediately thereafter
displaying FOUR empty charge positions
• Connect a battery pack to any of the charge positions. The charger addresses all packs
independently and simultaneously, so it doesn’t matter which bay a battery pack is connected to.
• Corresponding bay LED will flash RED to Green, until battery pack connected is fully analyzed.
Once fully analyzed, and communicating with the charger, the charger will begin to charge.
LED Indication Guide:
Battery State
LED Indication
Battery State
LED Indication
No Battery Connected
No LED
Indication
Discharge Done
Flash Green
Evaluate Battery
Flash RED/GRN
Re Charge
Solid RED
Re Charge
Completed
Solid GRN
Charging
Solid RED
Charging Done
Solid GRN
SafeFly
Flash RED
Discharging(Test Mode or
SafeFly Mode)
Flash RED
SafeFly Done
Flash Green
Multifunction Display:
The LCD on the front of the Fleet Micro charger provides charge function status, selected battery data
and reactionary feedback when pressing the onboard membrane button console.
Multifunction Display : Phases
Launch: Displaying Title Screen and Firmware version
Home Screen(no battery packs connected)
Home Screen(battery packs connected)
If the battery pack is deemed “Smart”(communicates with the charger based on various installed
protocols), the top line will display battery name. If the pack is not communicating smart battery data,
then the charger will display battery voltage. The lower line displays charging status.
CORE SWX
FLEET MICRO CHARGER
Firmware xx.xx
www.coreswx.com
--- --- --- ---1 2
---3--- ---4 ---
Gold90 Nano98S
92% ChARGE
---3--- 14.9V
DISCHARGE
