DPS5015
Programmable power supply
1. GENERAL INFORMATION
Dear customer,
thank you for purchasing our product. In the following, we will show you
how to use your product.
Should you encounter any unexpected problems during use, please do not
hesitate to contact us.
This power supply unit is characterized by its outstanding precision and
accuracy and combines analog and digital technologies in an advanced
design. The adjustable output reaches up to 50V or 15A and can be
precisely congured in 0.01A steps. The power supply is additionally
equipped with a switch-oî ‚ parameter memory and ten programmable data
memories. The operation of the device has been optimized for particularly
easy operation and the colour display oî ‚ers particularly detailed and
comprehensive information. Among other things, the current voltage
and current values, presettings and output powers can be displayed
here. Dynamic notication symbols also facilitate clarity. The additional
settings menu oî ‚ers maximum control of overcurrent and overvoltage
values as well as other parameters. The DPS5005 oî ‚ers modern design
and advanced technology in a compact package, making it the ideal power
supply.
2. TECHNICAL DETAILS

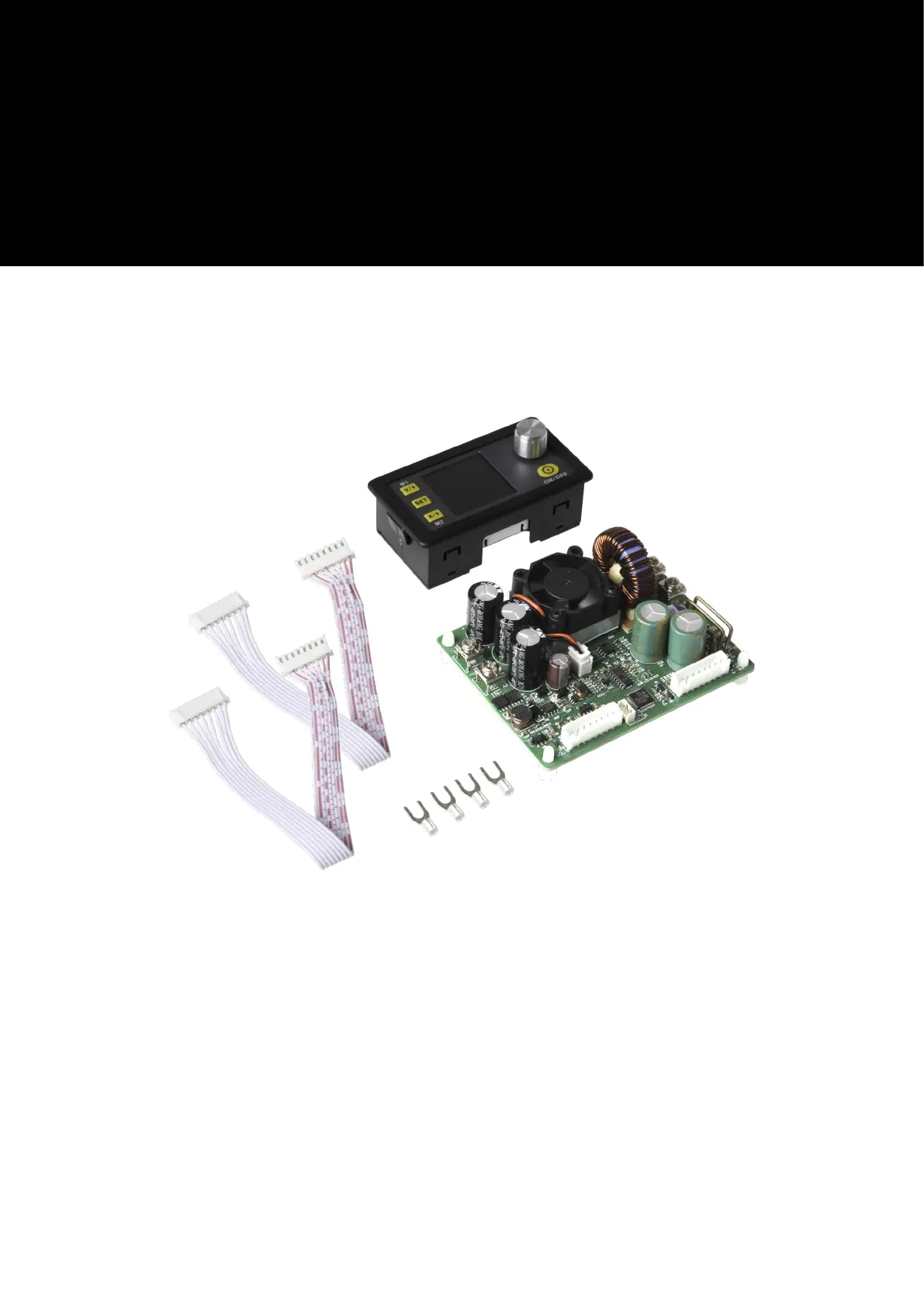

Connect the display module with the included cables to the
according LCD and Key interfaces. The next step is the connection of the
inputs and outputs via screw terminals.
Input voltage
Output voltage
Output current
Output power
Weight
Display size
Display module size
Power module size
Accuracy of
output voltage
Accuracy of
output current
6 - 60 V
0 - 50 V
0 - 15 A
0 - 750 W
152 g
1,44“
80 x 42 x 45 mm
40 x 67 x 91 mm
± 0,5 %
± 0,5 %
3. CONNECTION DETAILS
IN +
IN -
OUT +
OUT -
IN +
IN -
OUT +
OUT -
Positive input
Negative input
Positive output
Negative output
4. PANEL AND DISPLAY
Aî …er the rst start, the welcome screen is displayed, followed by the main
screen. The main screen displays selected voltage and current limits.
When the output is active, the current actual values are also displayed.
On the right side of the screen there are icons and prompts that indicate
the system status. For a detailed description of the display, refer to the
following diagram.
Attention! Make sure that the input voltage is always at least 1.1
times the output voltage. In addition, always ensure suî ‚icient
ventilation of the device for heat dissipation.
The permissible range of the input voltage is 6 - 60 V (DC).
Always ensure a suî ‚icient safety distance and never exceed the
maximum permissible input voltage. Non-observance can cause
substantial damage at your device.
Operate the device exclusively with direct current! Operating
the device with alternating current can lead to fatal electric
shocks and irreparable damage to the device.
Voltage settings, arrow
upwards, M1 data group
Data input,
extract / save
data from /
in data group
Current settings, arrow
downwards, M2 data group
1,44“ LCD-Display
Rotrary switch,
key lock
Activate / deactivate
output
