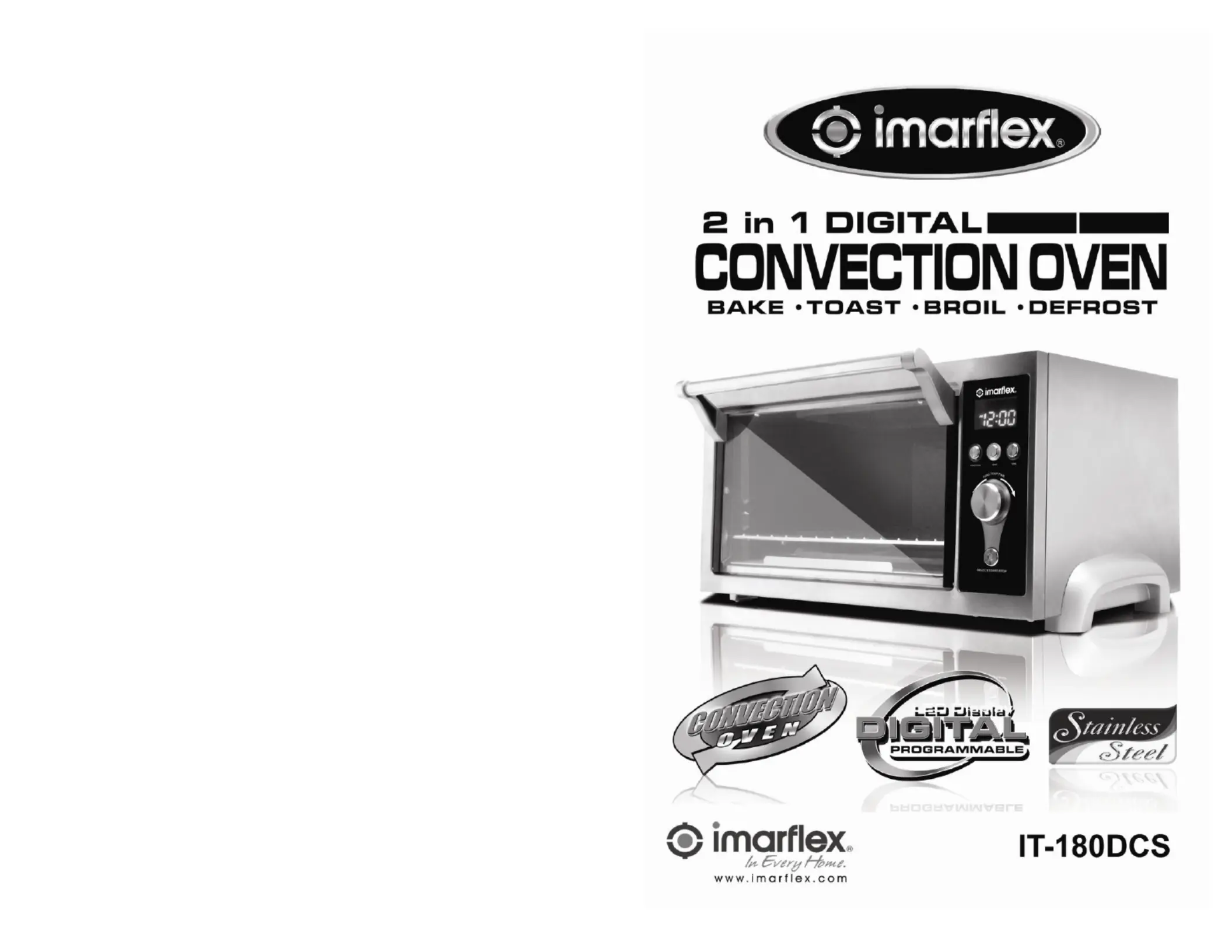

Imarflex IT-180DCS Manual
Read below 📖 the manual in Italian for Imarflex IT-180DCS (5 pages) in the Oven category. This guide has been helpful for 2 people and has been rated 4.5 stars on average by 2 users
Page 1/5
SPECIFICATION
MODEL NO. : -180DCS IT
RATED VOLTAGE : V230 a.c. ~ 60Hz
POWER CONSUMPTION : 00 watts 14
CAPACITY : 18L
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be followed,
including the following:
1. Read all instructions carefully.
2. Before using the unit, check if the voltage indicated corresponds with the convenience
outlet (230Va.c.).
3. Do not use two-way socket with other appliance.
4. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should
be replaced with the same type and size or bring the unit to the nearest Imarex
Authorized Service Center.
5. Do not place on or near gas stove or in electric burner.
6. Put the unit on a flat stable surface; keep it away from the edge of the counter to avoid
Accident.
7. Keep curtains, furniture, ammable materials, etc. away from the unit and from the
convenience outlet where the unit is plugged in.
8. Do not use any accessories other than the ones provided with this product. It may
cause injuries.
9. Close supervision is necessary when any appliance is used by or near children.
10. This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience or knowledge, unless
they have been given supervision or instruction concerning the use of the appliance by
a person responsible for their safety.
11. Do not let the cord hang over the edge of the table or counter, or touch hot surfaces.
12. Minor metal contraction sound may occur during operation but this is normal.
13. The use of accessory attachment not included or recommended by the appliance
manufacturer may cause hazard or injury.
14. This appliance is for household use only; it designed to process normal household
quantities.
15. Do not leave the appliance while in use.
16. Do not immerse the unit in water.
17. Do not use this unit other than its intended use.
18. Save this instruction for future reference.
-1-
6. Press “START/STOP” button, the oven will start working; the time will begin to
countdown.
7. When the cooking process is nished, 3 beep sounds will be heard and the L.E.D. turn
back to stand-by mode.
CLEANING AND MAINTENANCE
1. Before moving or cleaning, make sure to unplug and allow the unit to cool.
2. Use a wet damp cloth in cleaning the unit.
3. Wash Pizza Tray, Baking Tray, Drip Rack, Grill Rack, Tray & Rack Handle Pull-out and
Crumb Tray with soap and water, let it dry.
4. Do not immerse the unit in water
5. Do not use abrasive materials to avoid scratches.
-6
4. The default temperature is 70ºC and cannot be adjusted.
5. Press “START/STOP” button the oven will start working; the timer will start to
countdown.
6. When cooking process is finished, 3 beep sounds will be heard, the L.E.D. turn back to
stand-by mode.
PIZZA FUNCTION
1. Press “FUNCTION” button,( the default function is BROIL ) and the ” “ icon will
appear on the display.
2. Turn the Non Segment Knob to select PIZZA function, the icon will appear ” “
on the display.
3. Press “TIME” button, the default time is 30 minutes. Turn the Non Segment Knob to set
the cooking time. The time can be adjusted up to 2 hours..
4. Press “TEMP” button, the default temperature is 235ºC. Turn the Non Segment Knob to
set the temperature. The temperature can be adjusted from 70ºC to 235ºC.
5. Press “START/STOP” button the oven will start preheating. When the oven reaches the
set temperature, the time will start to countdown.
TOAST FUNCTION
1 .Press “FUNCTION” button, (the default function is BROIL) and the ” ” icon will
Appear on the display.
2. Turn the Non Segment Knob to select TOAST function, the “ “ will appear on
the display.
3. Press “TIME” button, 1 level will display on L.E.D.
4. Turn the Non Segment Knob to select the level, there are 6 levels.
5. The default temperature is 235ºC, the time and temperature cannot be adjusted.
-5-
DESCRIPTION OF PARTS
OPERATING INSTRUCTION
1. Place the unit on a at surface.
2. Plug the unit into the convenience outlet.
3. The clock setting will appear.
4. Prepare the food.
5. Press the “FUNCTION” button(the default function is BROIL) and “ ” will appear
on the display.
6. Turn the Non-segment knob to select the desired function.
7. Press the “TEMP” button to adjust the temperature and the “TIME” button to set the
time.
8. Place the food on the grill and close the door.
9. Press the “START/STOP” button.
10. A beep sound will be heard and the unit will stop cooking once the set time is finished.
11. To interrupt the cooking process, press “START/STOP” button.
12. Unplug the unit after use.
-2-
LEVEL
DEFAULT TIME
1
3 MINS.
2
4 MINS.
3
5 MINS.
4
6 MINS.
5
7 MINS.
6
8 MINS.
Product Specifications
| Brand: | Imarflex |
| Category: | Oven |
| Model: | IT-180DCS |
