Trendnet TI-GLC80 Manual
Read below 📖 the manual in Italian for Trendnet TI-GLC80 (4 pages) in the Switch category. This guide has been helpful for 8 people and has been rated 4.5 stars on average by 2 users
Page 1/4

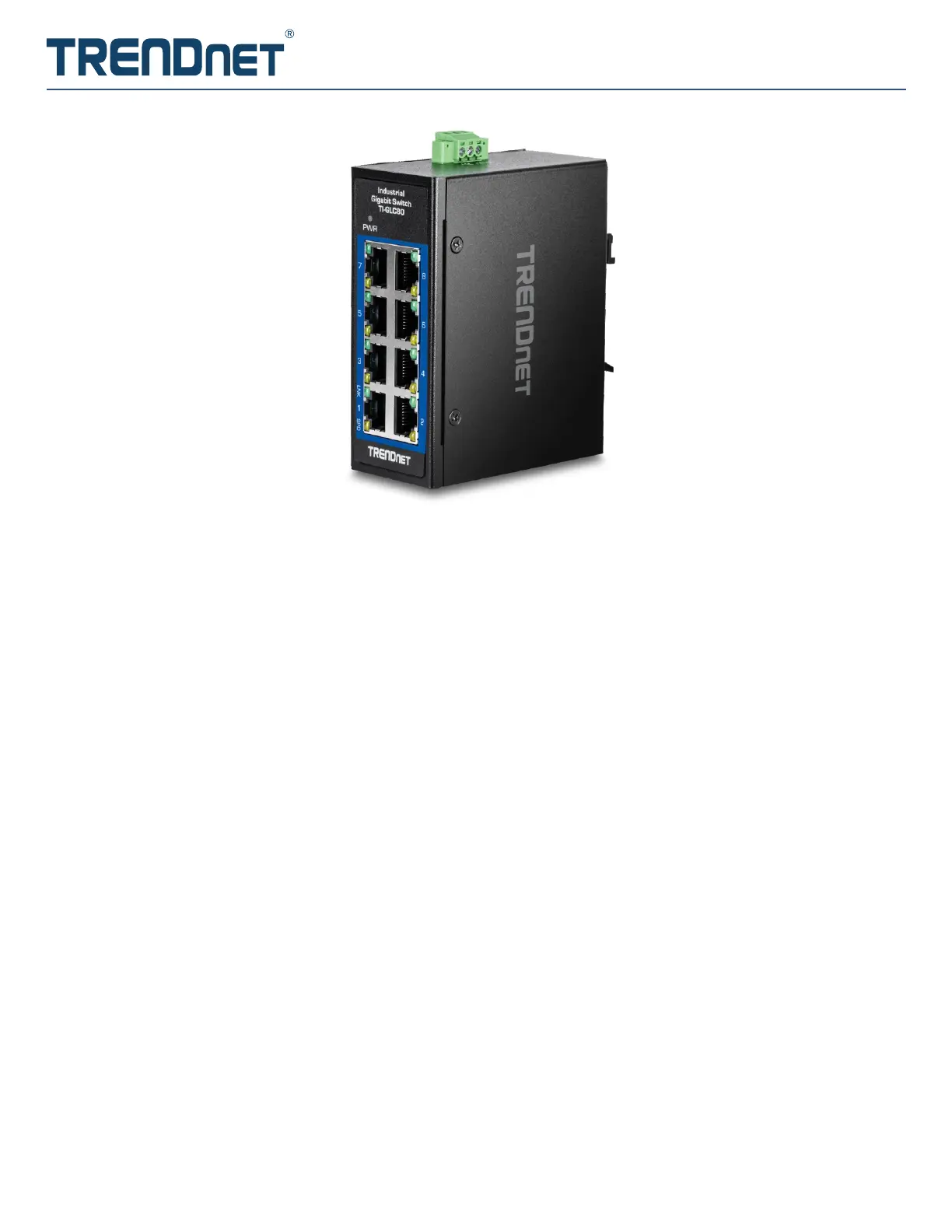

8-Port Industrial Gigabit DIN-Rail Mini Switch
TI-GLC80 (v1.xR)
• 8 x Gigabit ports
• Hardened IP30 rated metal mini switch
• Extreme operating temperature range of -40° – 75°C (-40° – 167°F)
• 16Gbps switching capacity
• Includes DIN-Rail mount and wall mount brackets
• Power supply sold separately (model: TI-M6024)
•NDAA / TAA compliant
TRENDnet’s 8-Port Industrial Gigabit DIN-Rail Mini Switch, model TI-GLC80, is a reliable and rugged networking solution that is
designed for use in both extreme and demanding environments. This compact industrial switch features a rugged IP30 rated metal
enclosure, and is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for
industrial environments within -40° – 75° C (-40° – 167° F). The hardened industrial mini switch features eight copper Gigabit ports for
high-speed device connections. The mini-sized housing is designed to fit into most compact installation areas.
TI-GLC80
Gigabit Ports
This compact industrial switch features
eight copper gigabit ports for high-
speed device connections.
Industrial Hardened Design
Equipped with a rugged IP30 rated
housing, designed to withstand a high
degree of vibration and shock, and
operate within an extreme
temperature range of -40° – 75° C (-
40° – 167° F).
Compact Design
With a compact metal housing design,
this mini network switch is well-suited
for installations into most environments.
Its fanless design is perfect for quiet
environments that require silent
operation.
NETWORKING SOLUTION
TI-GLC80
FEATURES
Gigabit Ports
This small industrial switch is
equipped with eight gigabit
Ethernet ports

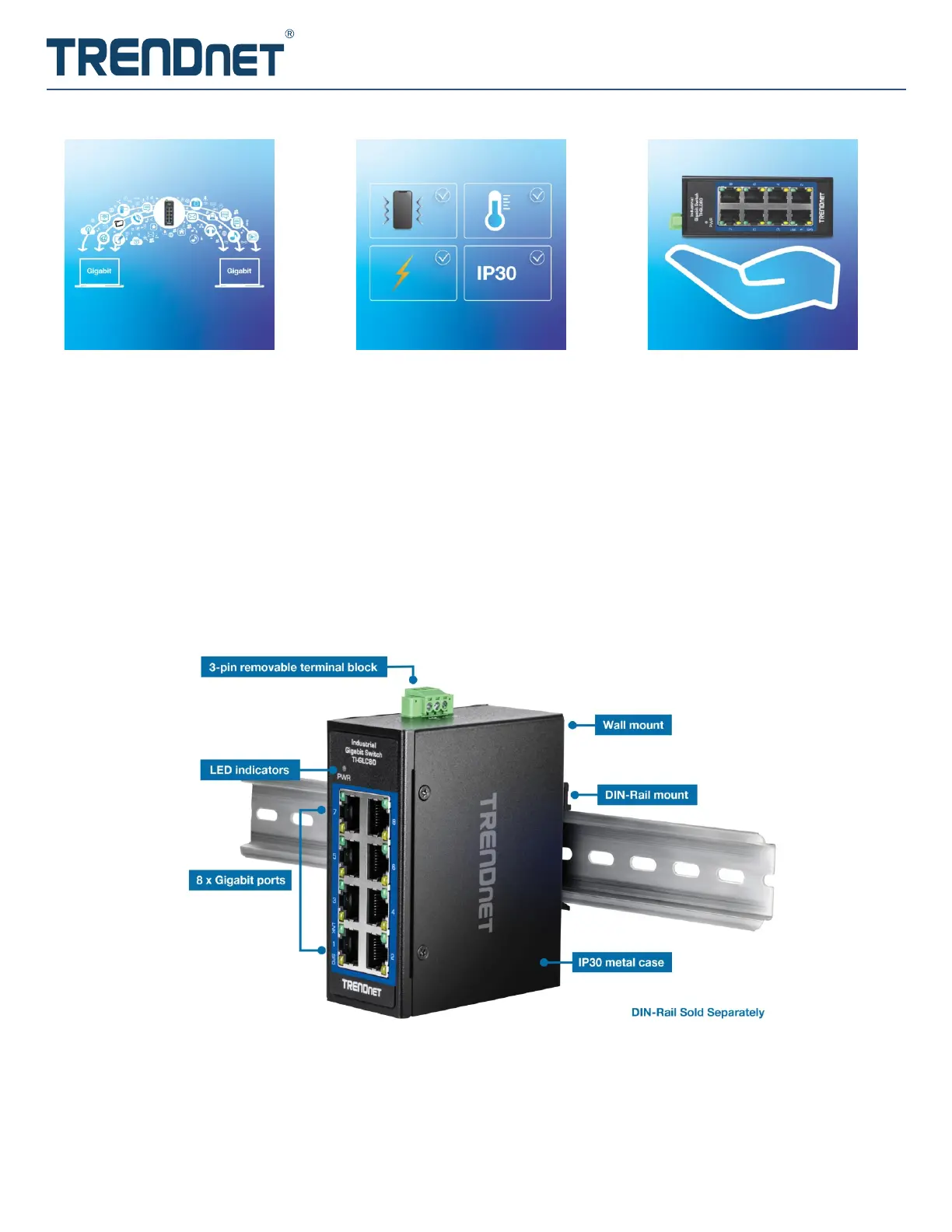

DIN-Rail / Wall Mounts
IP30 rated metal enclosure on
the compact industrial switch,
with included DIN-Rail mount and
wall mount hardware
Mini Housing Design
Compact and sturdy metal housing
Jumbo Frame
Supports larger packets, or
Jumbo Frames (up to 9KB), for
increased performance
Operating Temperature Range
Operating temperature range of
40° – 75° C (-40° – 167° F) allows
for the installations of the compact
industrial switch in environments
with extreme hot or cold conditions
Shock and Vibration Resistant
Rated for shock (EN 60068-2-27),
freefall (EN 60068-2-32), and
vibration (EN 60068-2-6)
Electro Magnetic Compliance
Complies with industrial EMS
certifications (IEC 61000-4-2)
ESD:
Contact: 6kV | Air: 8kV, (IEC
61000-4-4) EFT: Power: 2kV |
Signal: 2kV, (61000-4-5) Surge:
Power: 2kV | Signal: 2kV
TI-GLC80
Grounding Point
The compact industrial switch
features a grounding point for
protection against external
electrical surges
Product Specifications
| Brand: | Trendnet |
| Category: | Switch |
| Model: | TI-GLC80 |
