CRESTRON GREEN LIGHT™ Power Switching
Introduction
CRESTRON GREEN LIGHT power switching cabinets come pre-configured with GLXP modules already installed.
The cabinets only require installation and wiring of feed and load circuits.
Industry Compliance
The cabinet and modules are Listed to applicable UL Standards and requirements by Underwriters Laboratories Inc.
(E227280 (cabinet) and E103692 (modules))
Application
The following diagram shows CRESTRON GREEN LIGHT cabinets in a lighting application that is controlled by
an IPAC system.

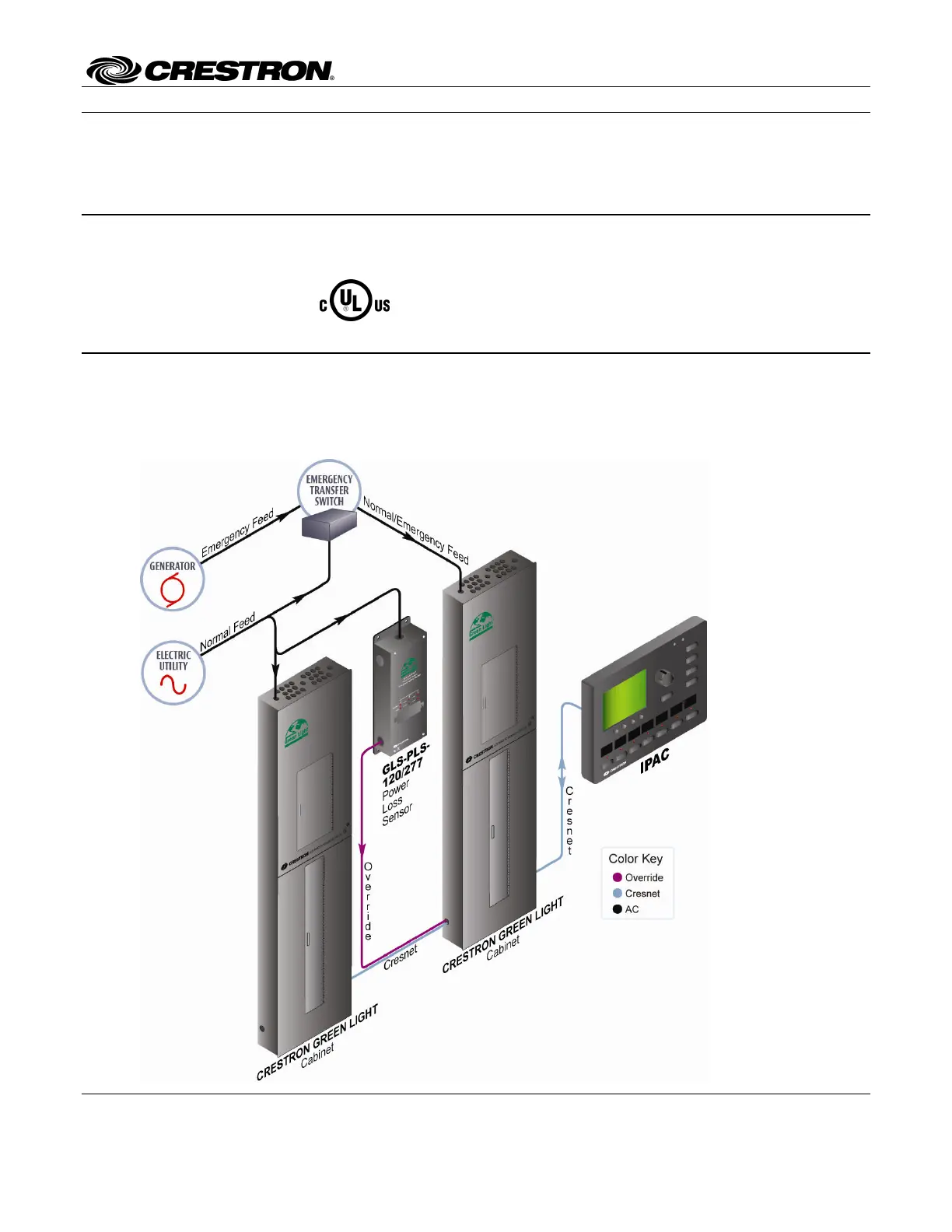

CRESTRON GREEN LIGHT Power Switching Cabinets in a Typical Lighting Application
Crestron Electronics, Inc. Installation Guide – DOC. 6672B
15 Volvo Drive Rockleigh, NJ 07647 (2020570)
Tel: 888.CRESTRON 10.08
Fax: 201.767.7576 Specifications subject to
www.crestron.com change without notice.
Power Switching CRESTRON GREEN LIGHT™
Physical Description
This section shows the exterior and interior dimensions of the CRESTRON GREEN LIGHT cabinet.

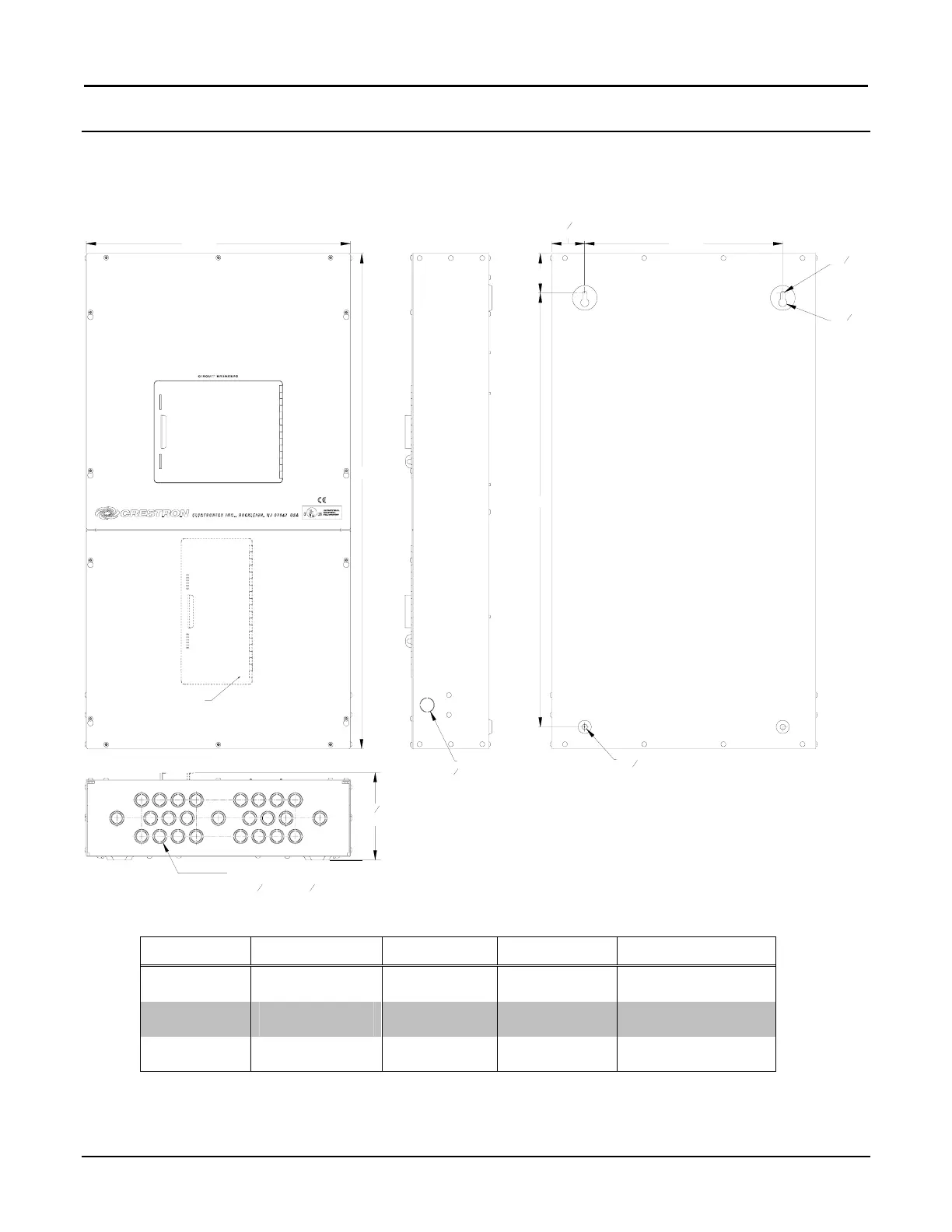

External Dimensions of CRESTRON GREEN LIGHT Power Switching Cabinets
KNOCKOUT
(FOR 34" (19 MM) CONDUIT)
TYPICAL BOTH SIDES
TECHNICAL KNOCKOUTS, 50 TOTAL
(FOR 34" (19 mm) &
12" (13 mm) CONDUIT)
TYPICAL TOP & BOTTOM
6 58"
(169 mm)
H1
H3
H2
20"
(508 mm)
OPTIONAL DOOR
Ø
516"
(8 mm)
2 12 "
(64 mm) 15"
(381 mm)
Ø 58"
(16 mm)
Ø
716"
(12 mm)
External Dimensions of CRESTRON GREEN LIGHT Power Switching Cabinets
DIMENSION 12 Breaker 30 Breaker 42 Breaker 42 Breaker (Short)
H1 37 1/2” 953 mm) 70” (1.8 m) 90” (2.3 m) 78 15/16” (2 m)
H2 3” (77 mm) 3 5/8” (93 mm) 3 5/8” (93 mm) 3 5/8” (93 mm)
H3 32 7/8” (836 mm) 59 3/8“ (1.5 m) 79 3/8” (2.0 m) 66" (1.7 m)
2 •
•
•
•• CRESTRON GREEN LIGHT Power Switching Installation Guide – DOC. 6672B
CRESTRON GREEN LIGHT™ Power Switching
Interior Dimensions of CRESTRON GREEN LIGHT Cabinets (120/208 VAC, left; 277/480 VAC, right)
H1
H1
1 78"
(48 mm)
8 18"
(207 mm)
1 78"
(48 mm)
6 14"
(159 mm)
2"
(51 mm)
2"
(51 mm)
8"
(204 mm)
3 78"
(99 mm)
Interior Dimensions of CRESTRON GREEN LIGHT Cabinets
120 Service 277 Service
DIMENSION 12 Breaker 30 Breaker 42 Breaker 12 Breaker 30 Breaker 42 Breaker
H1 8 3/4”
(223 mm)
15 1/8”
(385 mm)
18 1/8”
(461 mm)
7 1/16”
(180 mm)
12 1/16”
(310 mm)
15 1/16”
(383 mm)
Installation Guide – DOC. 6672B CRESTRON GREEN LIGHT Power Switching •
•
•
•• 3
