Trendnet TI-GLC50 Manual
Read below 📖 the manual in Italian for Trendnet TI-GLC50 (4 pages) in the Switch category. This guide has been helpful for 6 people and has been rated 4.5 stars on average by 2 users
Page 1/4

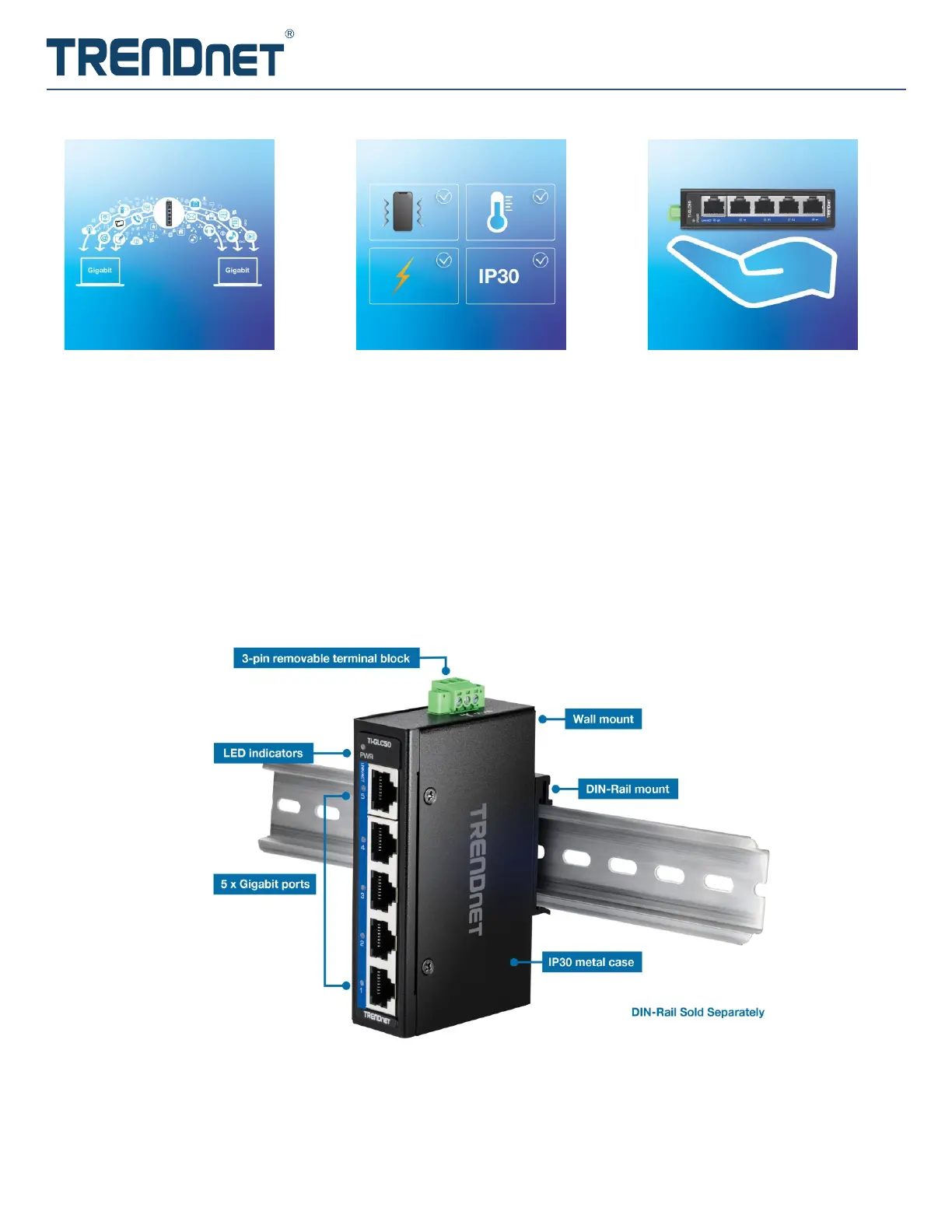

5-Port Industrial Gigabit DIN-Rail Mini Switch
TI-GLC50 (v1.xR)
• 5 x Gigabit ports
• Hardened IP30 rated metal mini switch
• Extreme operating temperature range of -40° – 75°C (-40° – 167°F)
• 10Gbps switching capacity
• Includes DIN-Rail mount and wall mount brackets
• Power supply sold separately (model: TI-M6024)
•NDAA / TAA compliant
TRENDnet’s 5-Port Industrial Gigabit DIN-Rail Mini Switch, model TI-GLC50, is a reliable and rugged networking solution designed
for use in both extreme and demanding environments. This Industrial Gigabit DIN-Rail Mini Switch features a rugged IP30 rated
metal enclosure, and is designed to withstand a high degree of vibration and shock, while operating in both high and low
temperatures for industrial environments within -40° – 75° C (-40° – 167° F). The hardened industrial switch features five copper
gigabit ports for high-speed device connections. The mini-sized housing is designed to fit into most compact installation areas.
TI-GLC50
Gigabit Ports
This industrial switch features five
copper gigabit ports for high-speed
device connections.
Industrial Hardened Design
Equipped with a rugged IP30 rated
housing, designed to withstand a high
degree of vibration and shock, and
operate within an extreme
temperature range of -40° – 75° C (-
40° – 167° F).
Compact Design
With a compact metal housing design,
this mini network switch is well-suited
for installations into most environments.
Its fanless design is perfect for quiet
environments that require silent
operation.
NETWORKING SOLUTION
TI-GLC50
FEATURES
Gigabit Ports
This mini switch is equipped
with five gigabit Ethernet
ports
DIN-Rail / Wall Mounts
IP30 rated metal enclosure on the
industrial switch, with included DIN-
Rail mount and wall mount
hardware
Mini Housing Design
Compact and sturdy metal housing
Jumbo Frame
Supports larger packets, or
Jumbo Frames (up to 9KB), for
increased performance
Operating Temperature Range
An operating temperature range of
-40° – 75° C (-40° – 167° F) allows
for the installation of the industrial
switch in environments with
extreme hot or cold conditions
Shock and Vibration Resistant
Rated for shock (EN 60068-2-27),
freefall (EN 60068-2-32), and
vibration (EN 60068-2-6)
Electro Magnetic Compliance
Complies with industrial EMS
certifications (IEC 61000-4-2)
ESD:
Contact: 6kV | Air: 8kV, (IEC
61000-4-4) EFT: Power: 2kV |
Signal: 2kV, (61000-4-5) Surge:
Power: 2kV | Signal: 2kV
TI-GLC50
Grounding Point
The industrial switch features a
grounding point for protection
against external electrical
surges
Product Specifications
| Brand: | Trendnet |
| Category: | Switch |
| Model: | TI-GLC50 |
