STEADYSTEER
INSTALLATION GUIDE
For wiring details refer to the documentation for your autopilot computer.
Before the SteadySteer™ can be used, make sure that the proper autopilot setting
have been congured. Refer to the documentation for your autopilot computer.
System wiring example NAC™ -2
System wiring example NAC™ -3
Wiring and conguration
Compliance statements
Europe
Navico declares under our sole responsibility that the
product conforms with the requirements of:
CE under LVD Directive 2014/35/EU
Navico Logistics Europe B.V. Laan van Europa 450,
3317 DB Dordrecht Netherlands
United States of America
¼Warning: The user is cautioned that any
changes or modications not expressly
approved by the party responsible for
compliance could void the user’s authority to
operate the equipment.
Declarations
The relevant Declaration of Conformity is available
on the following websites:
www.simrad-yachting.com
Trademark
®Reg. U.S. Pat. & Tm. O, and ™ common law marks.
Visit www.navico.com/intellectual-property to review
the global trademark rights for Navico Holding AS.
SteadySteer™
ow switch
Mode
SysselRet
Black Red
+
-
SteadySteer™
ow switch
Power
connector
Power
input
Red
Black
Yellow
Blue
Installation
A SteadySteer™ (can
be installed either
on the starboard or
port hydraulic line.)
B Starboard line
C Return line
D Port line
E Helm 1
F Steering cylinder
G Pump
H Helm 2
A Mount horizontally
B Do not install the SteadySteer™ directly on the helm. Place a hydraulic hose
between the helm and SteadySteer™.
C Mount with a distance of minimum 60 cm (2 ft) from disturbing magnetic
inuences, such as engines, ignition cables, or other large ferrous metals
objects.
Single Helm
Dual helm

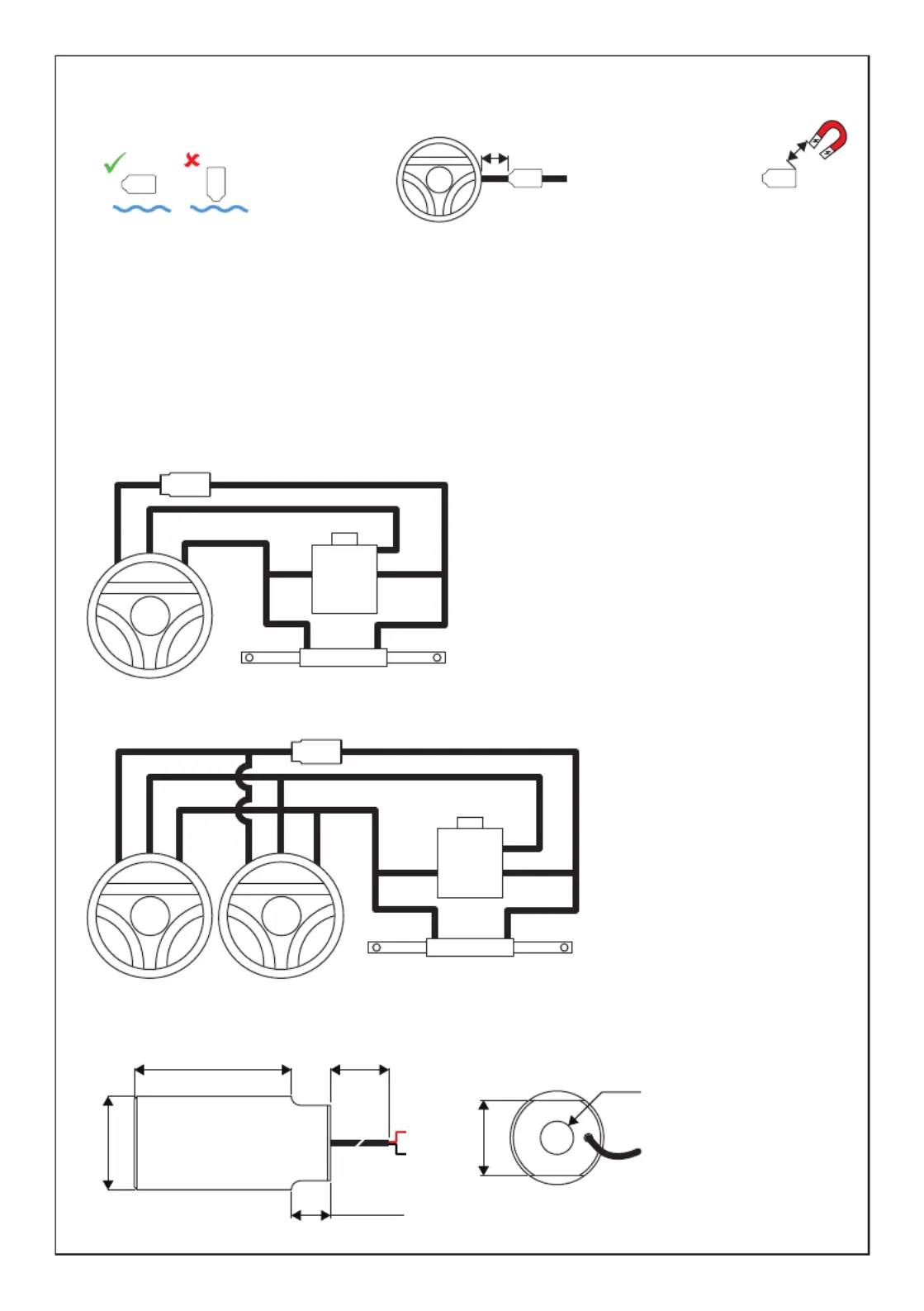

Dimensional drawing
A B
Min. 20 cm
(7.90”) C
Min. 60 cm
(23.63”)
B
C
D
F
G
EH
A
B
C
D
F
G
E
A
31.25 mm
(1.23”)
52.4 mm
(2.06”)
13.8 mm
(0.54”)
3 m
(10’) 1/4” NPT female
(both sides)
25.4 mm
(1.00”)

Product Specifications

Brand: Simrad
Category: Not categorized
Model: SteadySteer
