Page 1/4
CS-1e
Short Shotgun Microphone for
Boom pole and Camera Mount
・ Very sharp directivity in a 181.5mm length body
・ Flat frequency response beyond 20kHz (on axis)
・ High sensitivity -24dB/Pa
・ Accepts high SPLs, more than 130dB SPL(1% THD), with no distortion
in close miking
・ Narrow angle directivity over the entire frequency range,
・ Light weight, only 80g, easy to operate on a boom pole
・ Sanken original square-type DC-biased condenser capsule
The CS-1e is Sanken’s solution to a large demand from many engineers in the video and film
Industries. This shotgun mic is easily hidden from the camera’s view because of its short length.
A
lthough only 181.5mm, the CS-1e has very sharp directivity and provides excellent sound in a
wide variety of professional engine very effective on boom poles, ering applications. The CS-1e is
and also works extremely well with various kinds of camera mounts for one-man ENG operations.
Af
fordably priced, the CS-1e is ideal for today’s highly mobile operators.
CS-1e
<Frequency Response>
<Specifications>
Directivity Cardioid / lobar
Transducer DC biased condenser
Frequency range 50Hz - 20kHz
Sensitivity (nominal at 1kHz) 63.1mV/Pa (-24dB,0dB=1V/Pa)
Equivalent noise level (A-weighted) 15dB-A
Max SPL (1% THD) 130dB SPL
Output impedance at 1kHz 120Ω
Powering +48±4V phantom
Current consumption less than 3.5mA
Weight 80g
Dimensions 181.5m x 19mm (diameter)
Surface finish matte black
Connector XLR-3M
Included Accessories WM-1e urethane wind screen
<Dimensions>
e
CS-1e

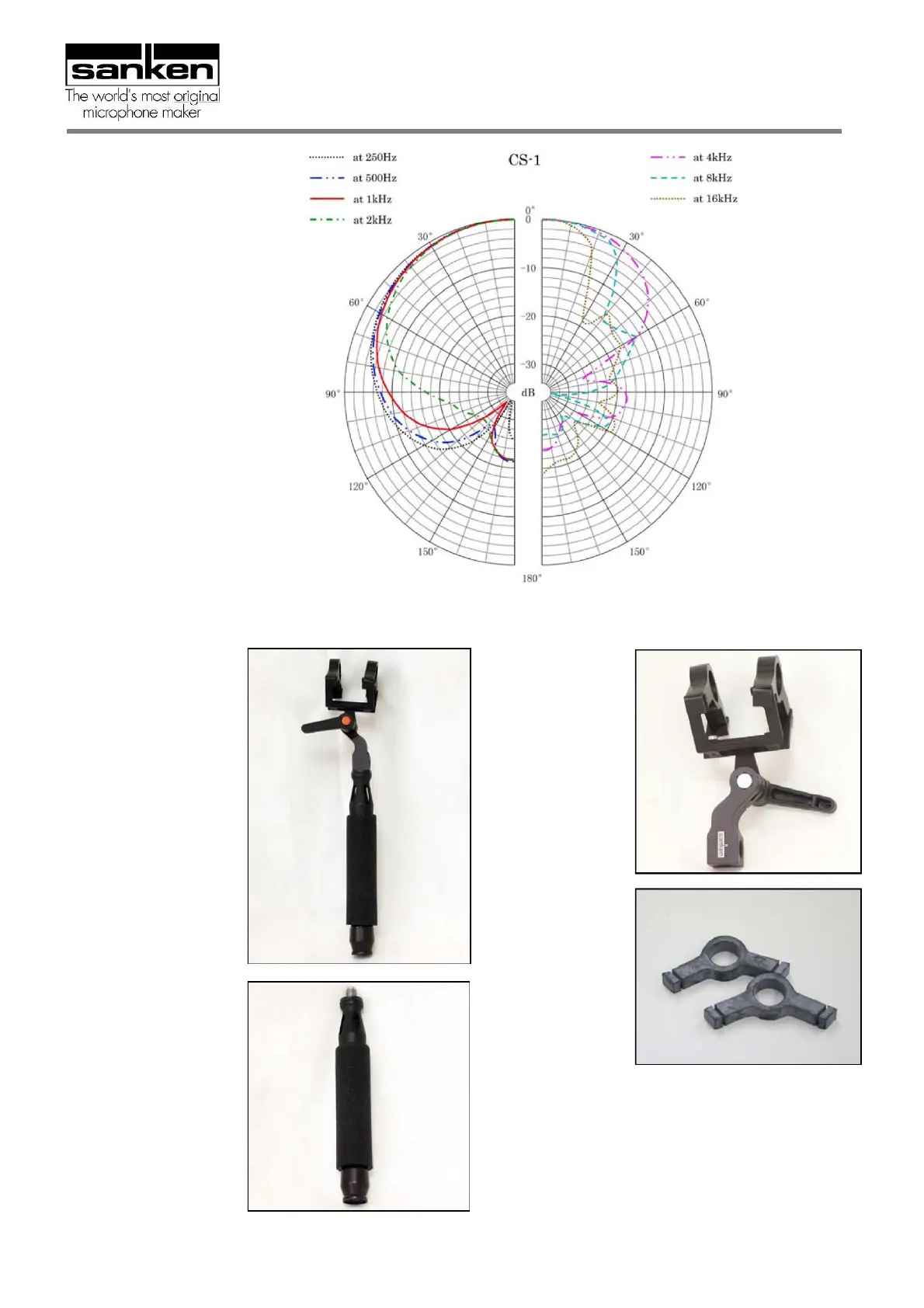

<Polar Pattern>
< Optional accessories >
GS-1 SH-1
Suspension
holder
Suspension
Hand grip
(SH-1+HG-1)
RB-1
Spare rubber parts for SH-1
(2 in one set) Handgrip part only
HG-1
e
