COS-22
2 channel Omni-
Directional Lavalier Microphone
・ 2ch lavalier microphone
・ Second ch can be a back up mic
・ For ambient stereo recording
・ Background noise cancel microphone with 1ch phase reverse
The Sanken COS-
22 is the world’s first 2ch lavalier microphone. In the tradition of the popular Sanken
COS-11 lavalier series, the ultra miniature COS-22 measures only 31.6mm (1.25”) in length but
boasts a
full frequency response up to 20,000 Hz. The two-channel, dual-omnidirectional COS-
22 is designed for a
variety of applications, including high quality unobtrusive area miking, stereo recording of music and
environmental ambience, redundant capsule live broadcast (e.g. news anchors), and boundary-
style
miking for film and television. In addition, the COS-
22 can be used as a noise cancellation directiona
microphone pair by reversing the phase of one channel before summing the two outputs.
1
COS-22
<Frequency Response>
2
<Specifications>
Directivity Omni directional
Transducer Self-polarized condenser
Frequency range 50Hz - 20kHz
Sensitivity (nominal at 1kHz) 17.8mV/Pa (-35dB,0dB=1V/Pa)
Equivalent noise level (A-weighted) 28dB-A
Max SPL (1% THD) 137dB SPL
Output impedance at 1kHz 180Ω
Powering +48±4V phantom X 2ch
Current consumption less than 2.2mA
Weight 20g (including cable) , 70g (48V I/F)
Dimensions 31.6mm X 4.0mm (diameter)
Surface finish baked painting/gray
Connector XLR-5M
Included Accessories HC-22 holder clip
<Dimensions>
COS-22

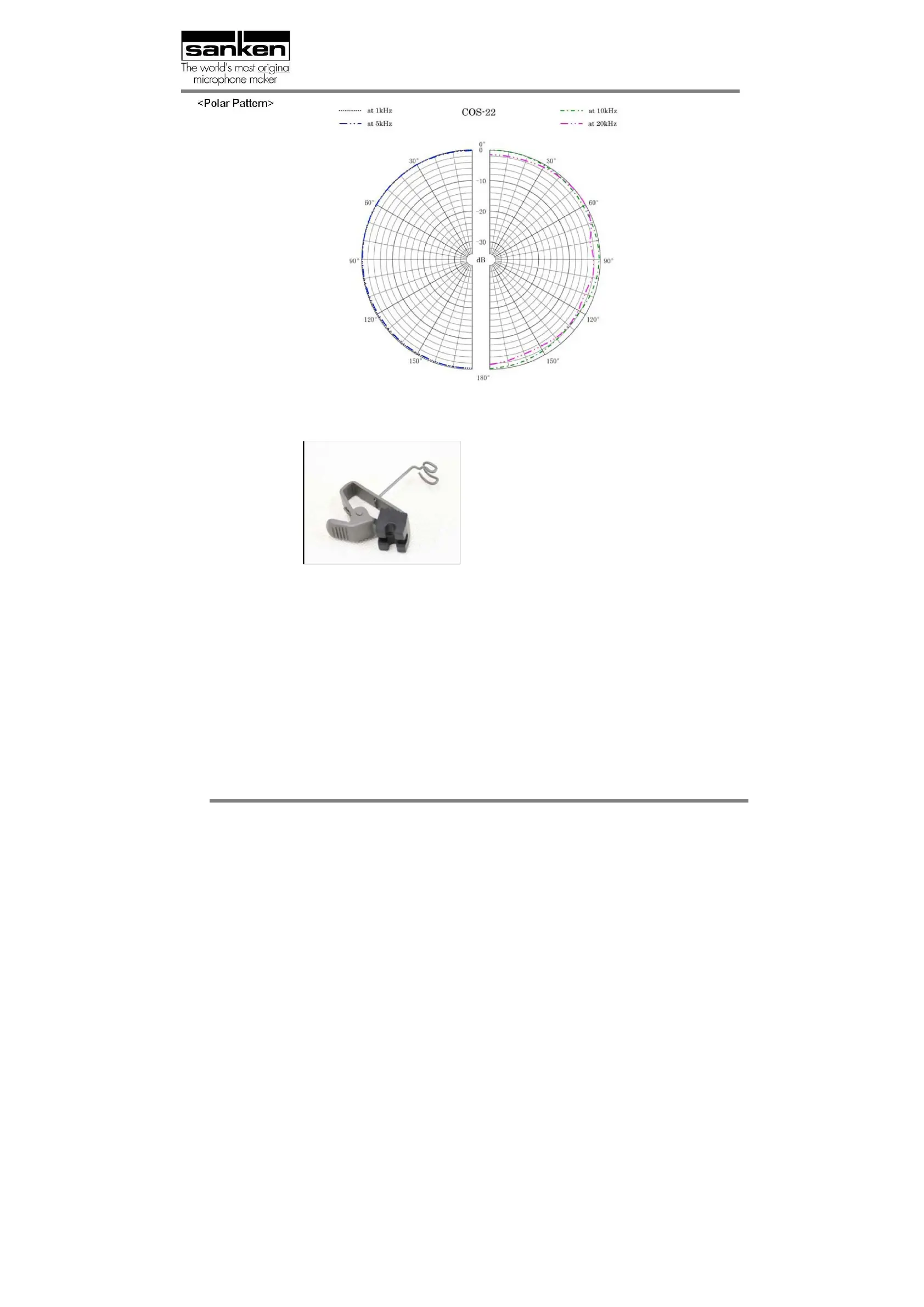

< Optional accessories >
HC-22
Holder Clip
SC-532 / 0.3 , SC-532 / 1.8
XLR-5F to two XLR-3M Y cable “ ”
SC-551 / 0.3 , SC-551 / 1.5
XLR-5F to XLR-5M cable
Specifications are subject to change without notice
SANKEN MICROPHONE CO., LTD.
2-8-8 Ogikubo, Suginamiku, Tokyo 167-0051 Japan
Phone: +81 3 3392 6581 FAX: +81 3 3393 2055
www.sanken-mic.com
3
