Page 1/7

Manual

Assembly of PureID DIY Cables

I n n o v a t i o n G e r m a n E n t e r p r i s e s .K n o w - H o w . Q u a l i t y . D e s i g n .

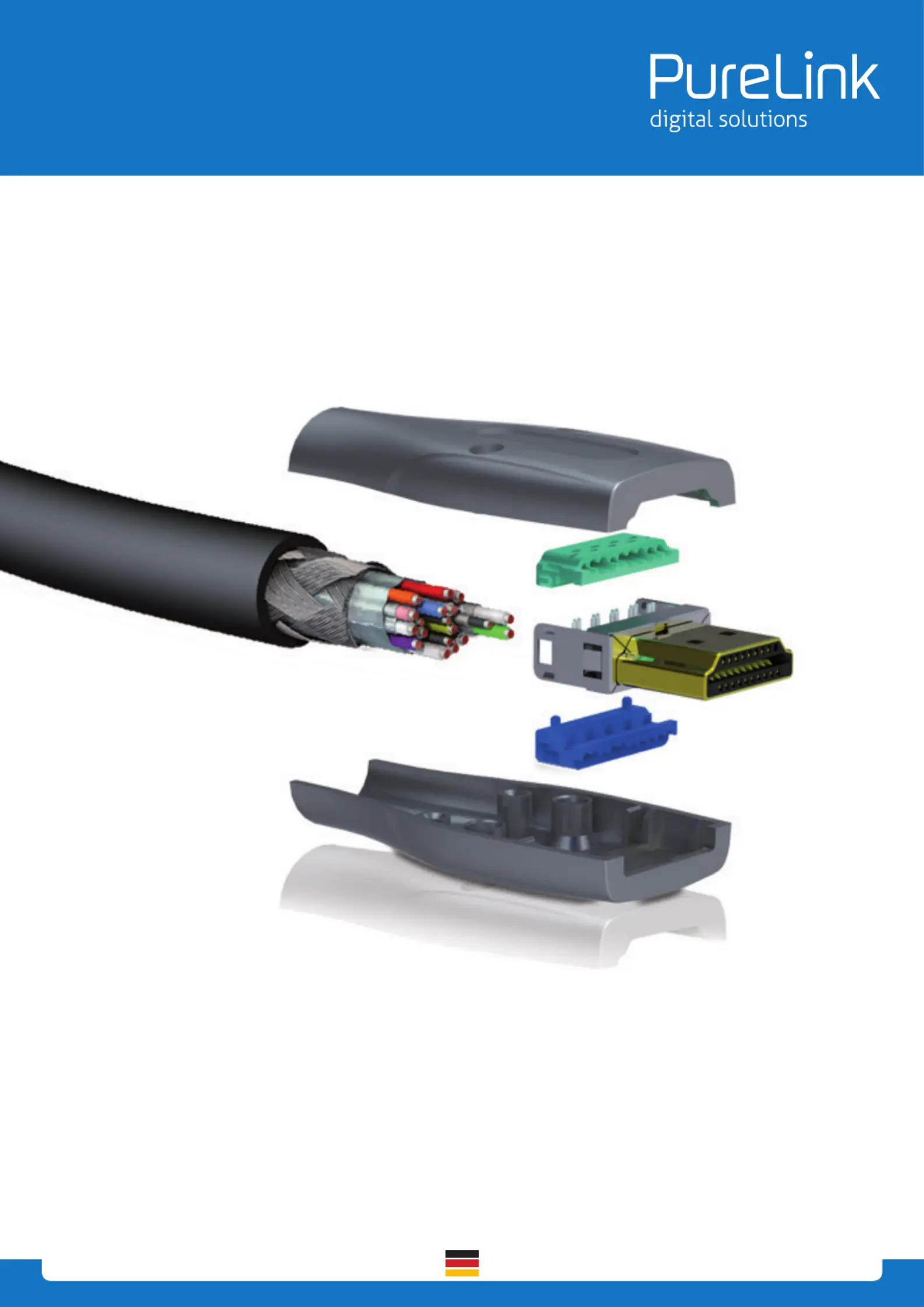

Manual

for creating solderless DIY HDMI cabling included in the PureID series

ID-CAB-PURE

ID-CAB-ULTRA

Manual

Assembly of PureID DIY Cables

I n n o v a t i o n G e r m a n E n t e r p r i s e s .K n o w - H o w . Q u a l i t y . D e s i g n .

Step 1

Prepare The Cable

The PureLink HDMI Do-It-Yourself cables use a unique technology for manufacturing your own HDMI cables. The

HDMI cable consists of 5 twisted pairs, 4 separate wires and a drain wire, used for grounding. The four blue colored

pairs are meant for transmission of TMDS signals, the twisted pair with silver aluminium foil is for Ethernet (HEAC)

and Audio Return Channel (ARC). Our compatible cables are “ID-CAB-PURE“ and “ID-CAB-ULTRA“. All parts needed

for manufaturing are included in our starter-kit “ID-STARTER“ or available separately.

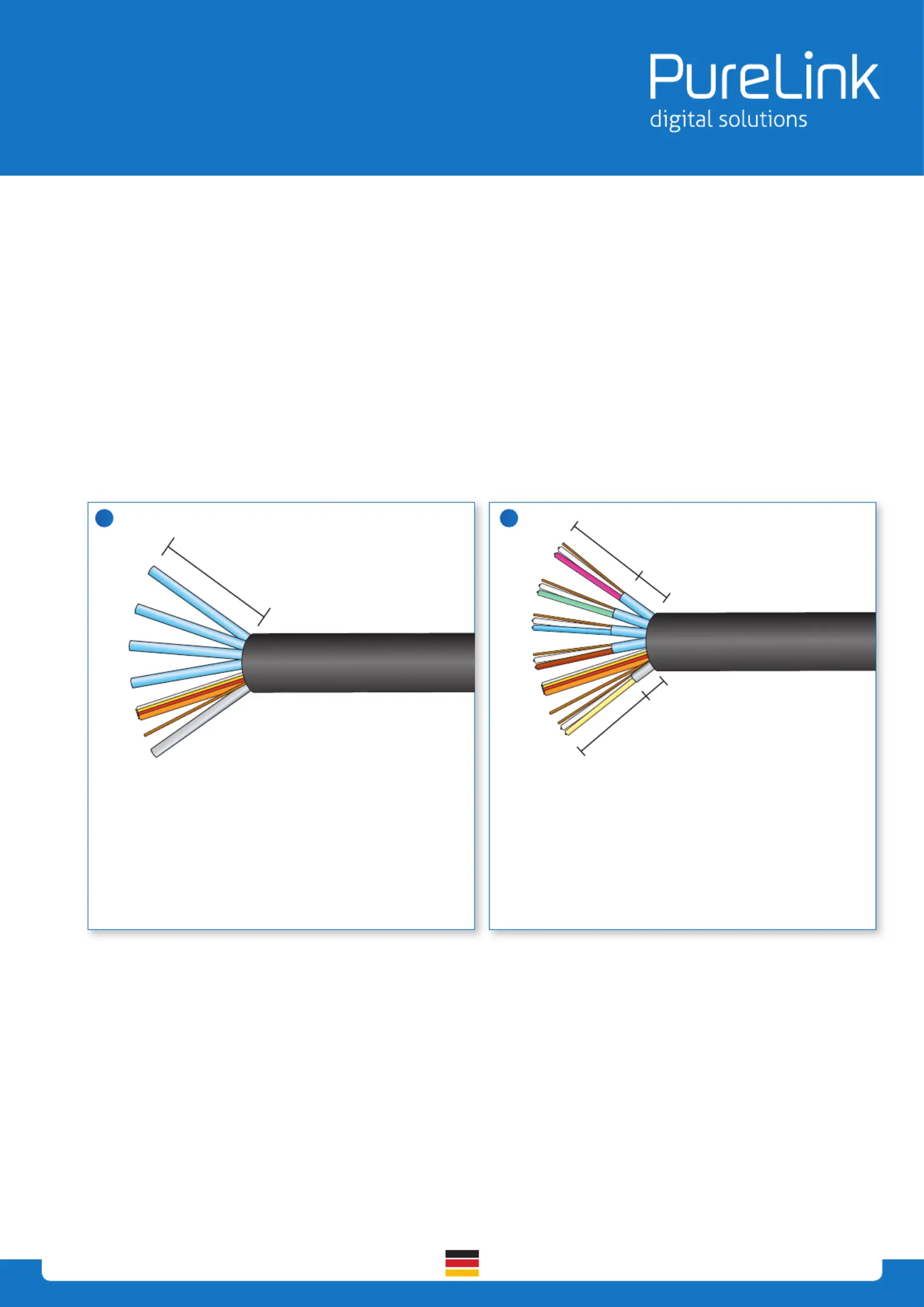

First remove the insulation of the cable, then cut

the outer jacket with a sharp knife, strip the cable

jacket for about 3cm and remove the outer metal

braiding.

Remove about 2 cm aluminium foil around the ve

twisted pairs. It´s important to keep 1cm blue alu-

minium foil around the twisted pairs. You need to

be able to recognize the diernt pairs & wires in the

next step. Remove the silver foil around the single

wires so that only 6mm of silver foil is left.

1 2

3cm

2cm 1cm

2,4cm

0,6cm

Manual

Assembly of PureID DIY Cables

I n n o v a t i o n G e r m a n E n t e r p r i s e s .K n o w - H o w . Q u a l i t y . D e s i g n .

Step 2

Insert Wires

Arrange the wires for the green 9-hole cablehol der,

like shown in the pin-assignment table on page 4.

Pay Close attention: Mis-wiring (also of the twi-

sted pairs!) will lead to product failure and/or total

blackout. Therefore it‘s VERY IMPORTANT to a ensure

the right assignment of all wires.

Insert the wires into the green holder. Check the

position with the assignment chart.

Repeat these steps for the blue 10-pin holder. After

completing this step, slide the holders against the

foil wrapping so they are on top of each other and

align them to t the compression guide.
