USB and Jack 3,5mm replacement PCB and Plas c cover
ISUZU
D-Max;
Model:

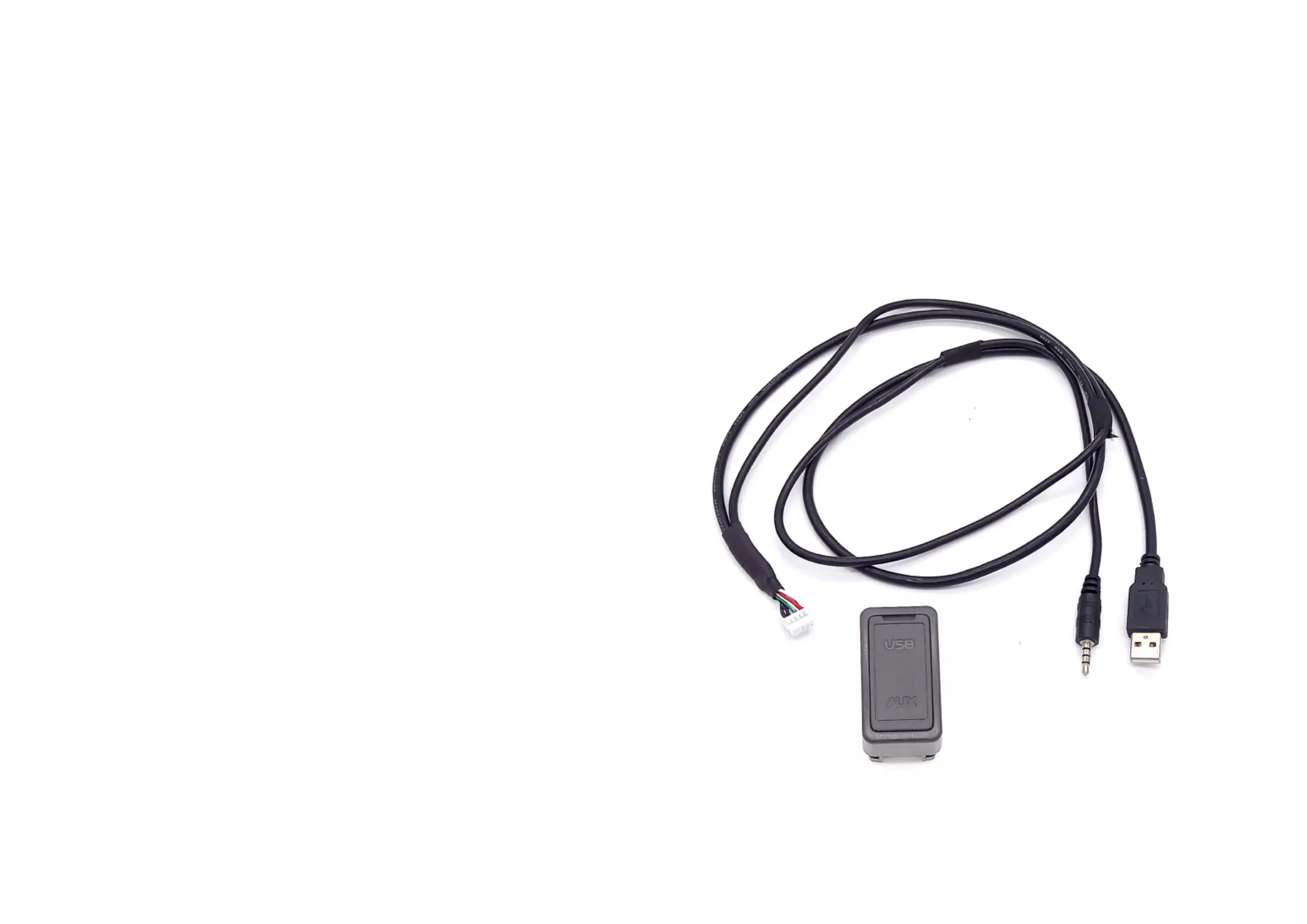

Kit content:
Customer code:
USB and Jack 3,5mm replacement PCB installa on kit for :
Year:
2021>
All installa on work must be performed by a quali ed professional installer only.� fi
The manufacturer / dealer is not liable for any kind of incidental or indirect damages.
03/2021 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints R0
CA-IW-ISU.002
3 Plug the connector of the harness
and do all connec ons on radio side.
Insert the USB and 3,5 mm Jack
replacement panel into the hole le by
the OEM part.
Please note that USB connector must
be always connected to guarantee the
proper func on of the system.
ATTENTION!
1. Remove the plas c cover circled in
Red.
4 This is the nal result.
4
5A
5B
IF YOUR VEHICLE IS EQUIPPED WITH THE SWITCH PANEL SHOWN IN THE
PICTURE 5A, INSTALL THE USB/AUX PCB IN THE GLOVE COMPARTMENT
AS SHOWN IN THE PICTURE 5B.
2 Connect the White connector to PCB
as shown in the picture.
1
2
3
USB
AUX
