Compatible with these double DIN devices
Pioneer Double-DIN Navigation
• Peugeot 308 09/2007->
• Peugeot 308CC 03/2009->
• Peugeot RCZ 04/2010->
colour part-no.
piano black CA-HM-PSA.001BP
Installation Manual
2
• (1) facia plate
• (2) metal frame
9. Attach mounting frames
to double DIN head unit
Position of copper bezels
depends on head unit
Connect all required circuit points
Push double DIN head unit
into metal frame
10. Mount top panel with hazard
light switch to double DIN
facia plate
11. Place facia plate
12. Re-install everything in reverse
order to nish installation
All installation work must be performed by a qualied professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.
5. Remove OEM head unit
6. Cut away middle bar
to clear space for
double DIN head unit
7. Remove top panel
Remove buttons
8. Mount metal frame to dash
board

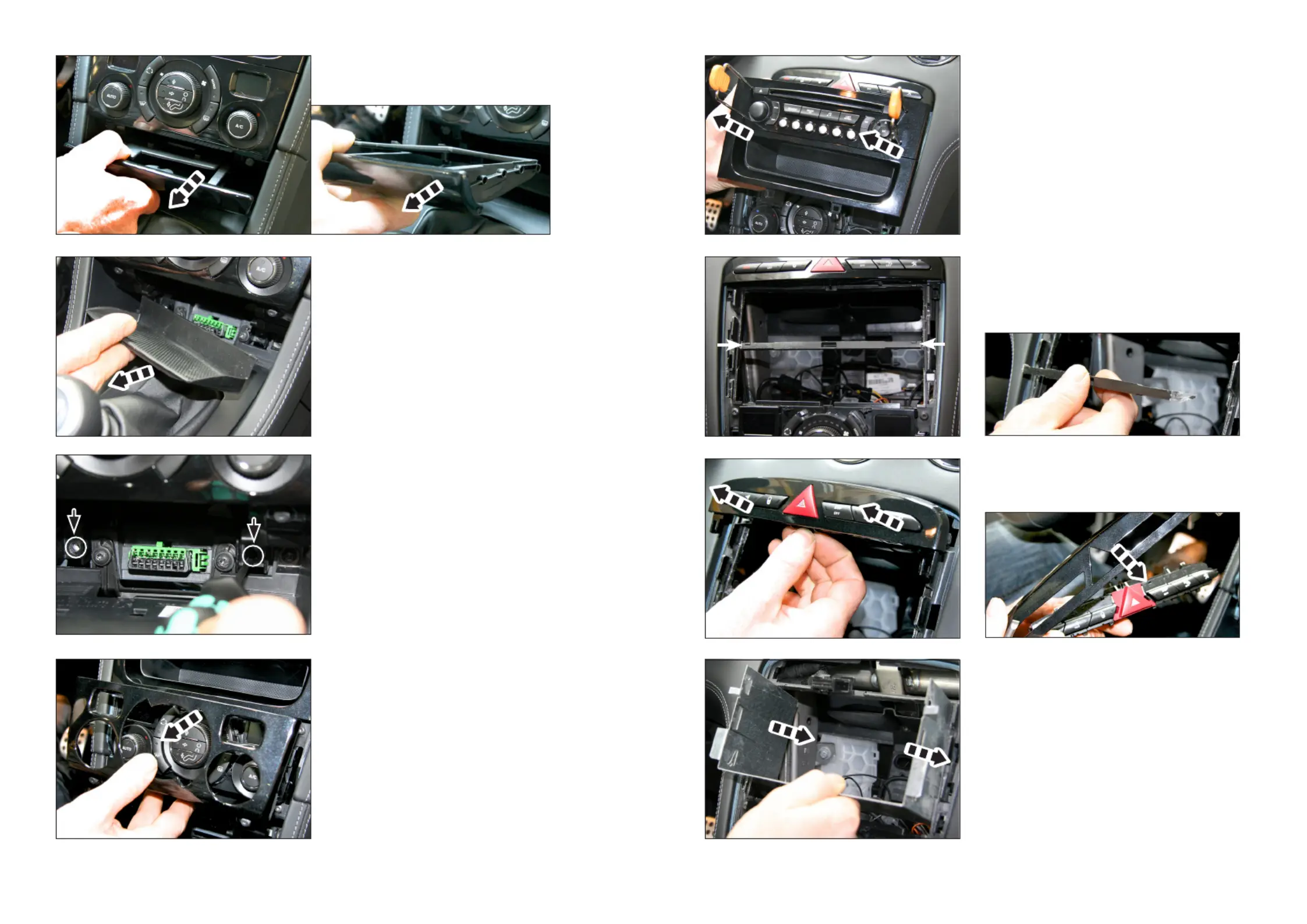

1. Remove lower tray under
OEM head unit
2. Remove rubber inlay
4. Remove panel
3. Remove screws

Product Specifications

Brand: Pioneer
Category: Not categorized
Model: CA-HM-PSA.001S
