FIAT
All installa on work must be performed by a quali ed professional installer only.� fi
The manufacturer / dealer is not liable for any kind of incidental or indirect damages.
07/2021 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.R0
INSTALLATION MANUAL
Ducato VIII 2021>;
Model:
Kit content:
Customer code:
Compa bility:
Double DIN facia plate
moun ng brackets + screws
Compa ble with double DIN device
CA-HM-FIA.013

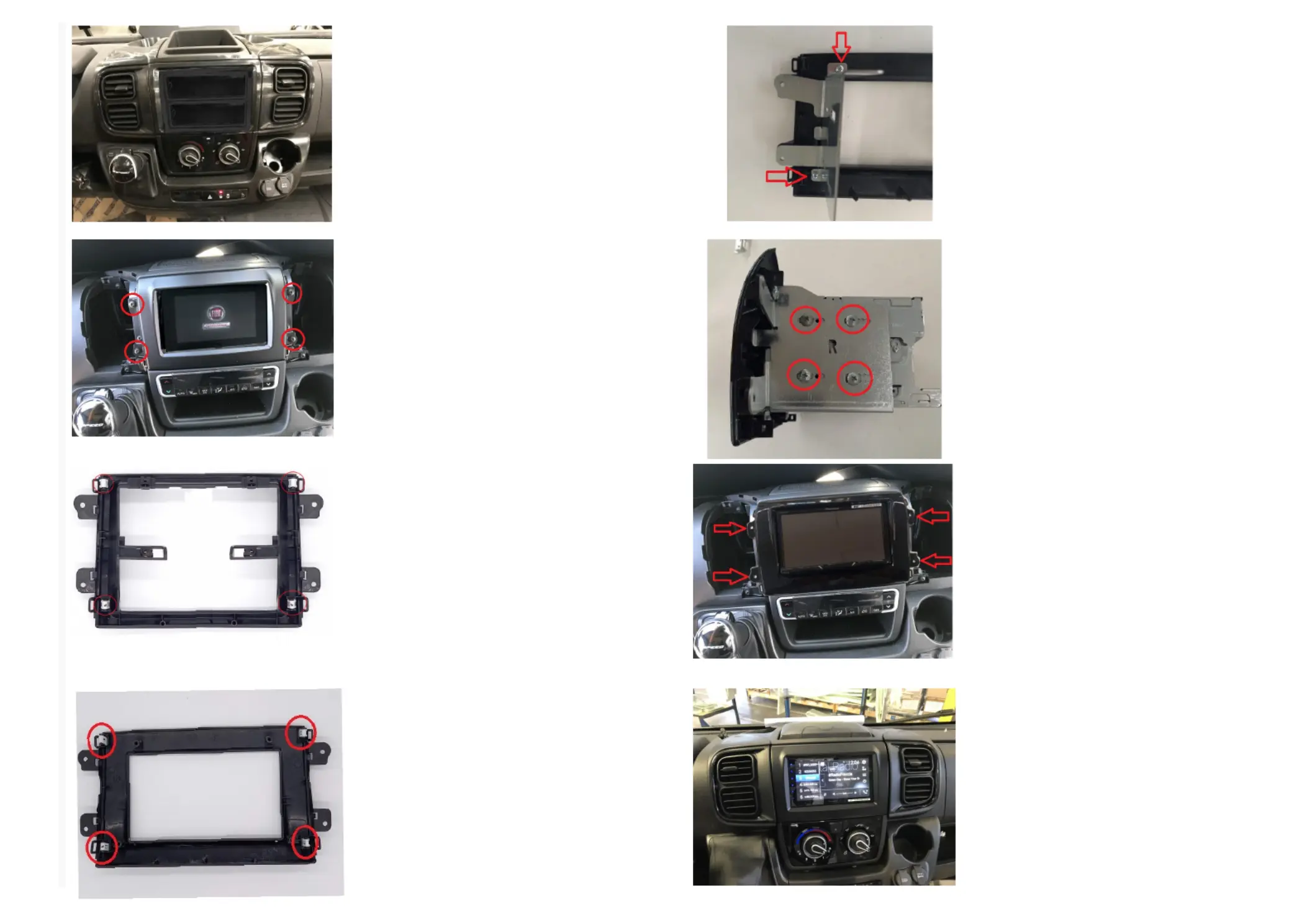

1 This is how the original dashboard
looks like once removed the radio
panel.
2 Remove the OEM Air Vents.
Remove and save the 4 screws circled
in Red.
Disconnect all cables and remove the
OEM radio from the radio tunnel.
3 Remove and save the 4 clips circled
found to the back side of the OEM facia
plate.
4 Apply the 4 clips removed previously
as shown in the picture.
5 Fix the metal brackets to the facia
plate by ghtening the 4 screws (2 per
side) supplied in the kit.
6 Fix the facia plate to the radio by
ghtening the 8 screws (4 per side)
supplied in the Radio Kit
7 Connect all cables and verify their
func ons, ghten the 4 screws saved in � �
the step n°2 as indicated in the picture.
8 Reassemble all components following
all steps backwards.
This is the nal result.
1
2
3
4
5
6
7
8
