Double DIN Set contents
• (1) Facia Plate
• (2) Metal Frame • (3) Mounting Accessories
© 12/2008 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.
Compatible with these double DIN devices
Pioneer Navigation
Installation Manual
Double DIN Kit
CA-HM-FIA-PSA.001
• Citroën Nemo 2008->
• Fiat Fiorino 2008->
• Peugeot Bipper 2008->
Mount the metal brackets to the
double DIN head unit.
The position of the copper
coloured holder can be adjusted
to your needs for perfect t.
(see sample)
(sample photo) (sample photo)
8. Connect all required circuit points
and push the double DIN head
unit in the metal frame until it
snaps in
9. Place facia plate
Installation Manual Double DIN Kit
4. Remove 2 screws below
document holder

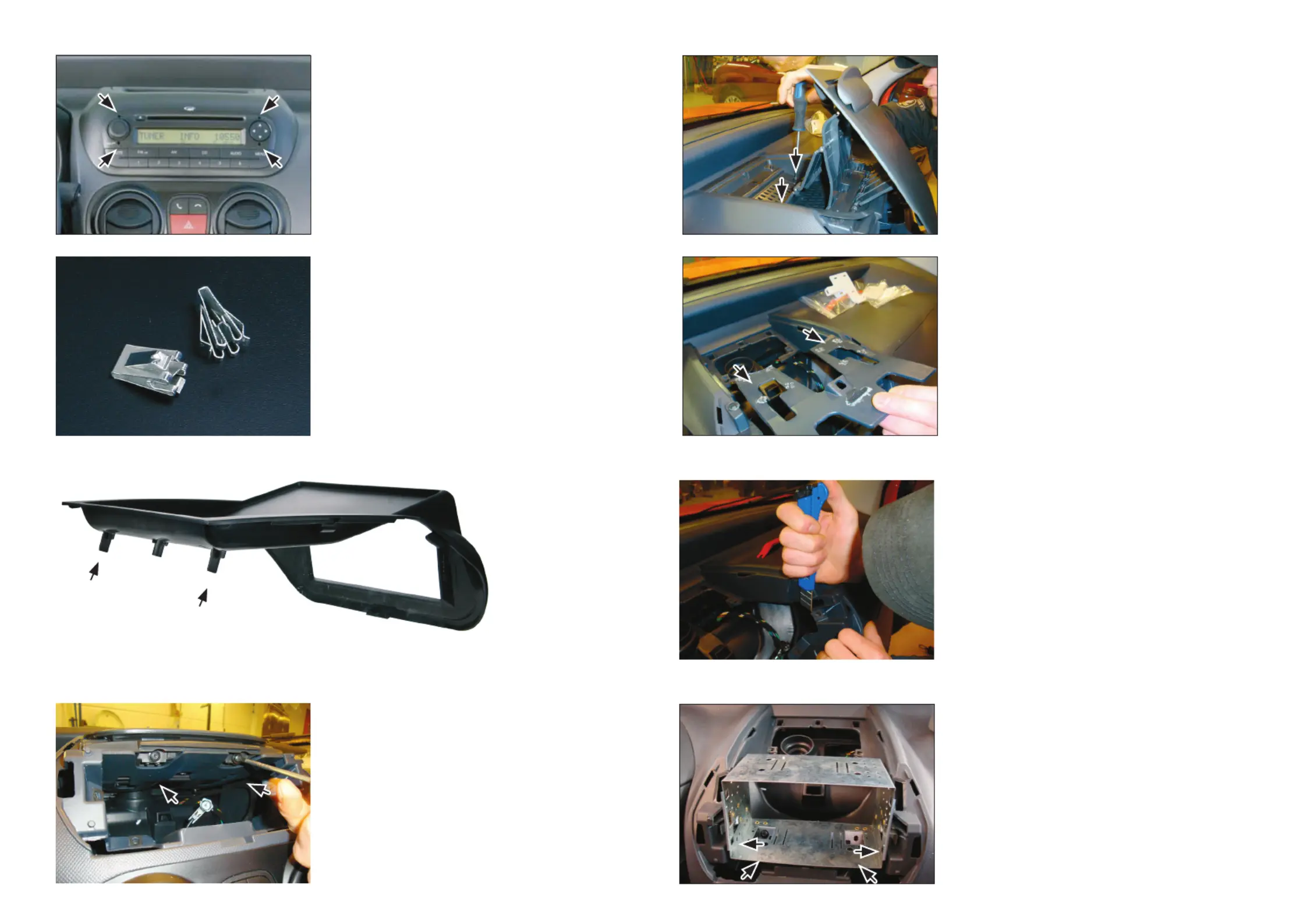

1. Remove OEM Radio with special
radio release keys
2. Remove original clamps from
upper OEM-cover
Info: Attach original clamps from
upper OEM-cover to facia plate (see arrows)
3. Remove 2 screws (see arrows)
5. Cut out dash board plastic
by using a sharp knife
6. Note: Cutting needs to be
done properly for a
seamless installation of the
double DIN head unit
7. Place metal frame
î›¶x metal frame with
4 screws
