Compatible with these Pioneer double DIN devices
Pioneer Navigation
• Hyundai Santa Fe 2008->
Double DIN Kit contents
• (1) Mounting Bracket (L)
• (2) Mounting Bracket (R)
• (2) Facia Plate
• (4) Fixing Screws
All installation work must be performed by a qualified professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.
Installation Manual
Double DIN Kit
281143-15
Installation Manual Double DIN Kit 281143-15

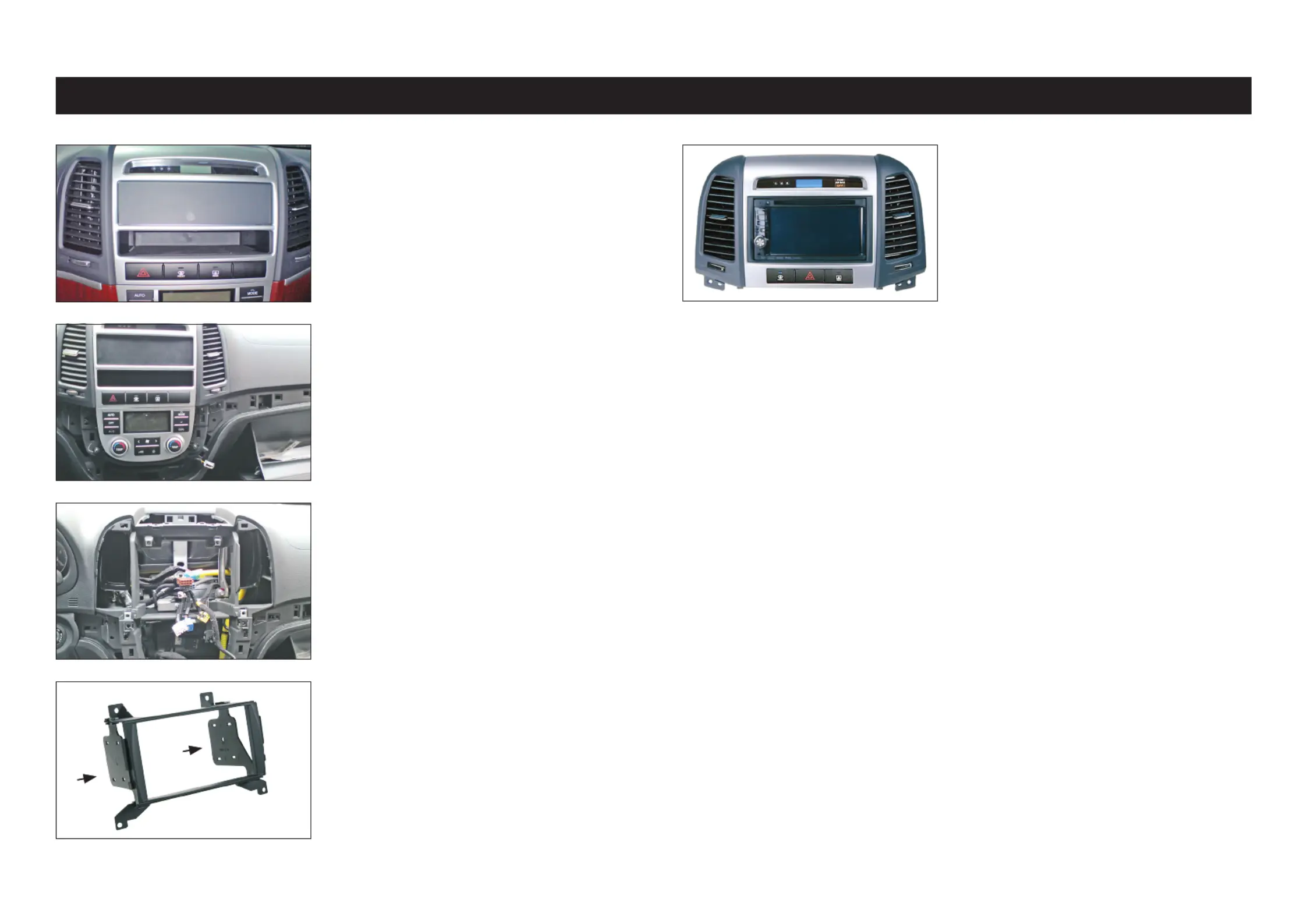

1. Hyundai Santa Fe dashboard
6. Place the OEM front panel
Reinstall everything in reverse
order to finish installation.
All installation work must be performed by a qualified professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.
2. Remove the screws,
holding the center panel
3. Unclip the center panel
and remove it
5. Place the Pioneer Navigation with
the facia plate at he dash board
Connect all required circuit points
Fix the facia plate to the
dashboard with four screws
4. Attach the mounting brackets
to the facia plate
Push the Pioneer Navigation into
the facia plate and fix it with screws
at both sides
