2-DIN 12.301300-10

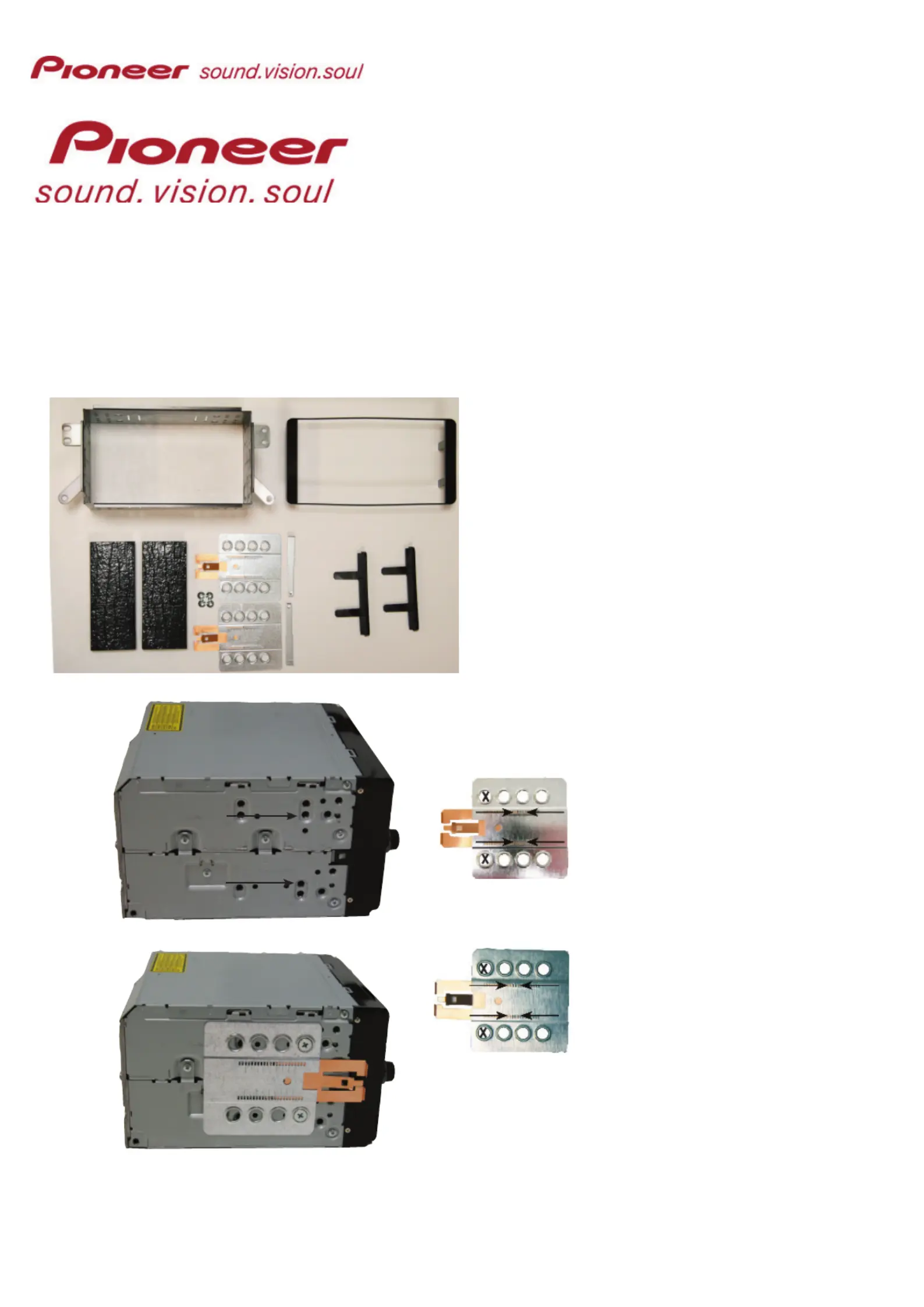

Installation kit includes the following items:
* 1X 2-ISO 100 mm. metal bracket
* 1x Replacement panel for non motorized screen
* 2X Replacement panel for motorized screen
* 2X Mounting plates
* 2X Mounting spaces
* 2X Radio keys
* 4X Screws
* 2X Cushion
Installation manual for:
Toyota Hilux
* Mount the plates.
Use this hole
Use this hole
Pioneer HD1BT
We advice to use the following positions.
Other positions are also possible.
Use position 1 marked with a cross.
Use position 14 & 16 marked with an arrow.
Measured from left to right.
Pioneer Avic D3
We advice to use the following positions.
Other positions are also possible.
Use position 1 marked with a cross.
Use position 8 & 10 marked with an arrow
Measured from left to right.
2-DIN 12.301300-10
Remove the 3 ventilation knob at the
location of the arrows.
Remove the screw at the location of the
middle arrow.
Remove the OEM dashboard panel at the
location of the top and bottom arrows.
Place the headunit.
Remove the original plate with the metal
bracket at the location of the arrow.
Connect all of the needed wiring harnesses and check all the connections carefully.
1 2
3 4
5
Place the 2-Din metal bracket at tighten
the panel by four screws.
Replace all original parts and place the
replacement radio trim.
