Installation kit includes the following items:
* 1X 2-ISO 110 mm. metal bracket
* 1X Replacement panel
* 2X Mounting plates
* 2X Mounting spacers
* 2X Radio removal keys
* 4X Screws
* 2X Cushion
Installation manual for:
Saab 9.5 9 - 1997 --> 10 - 2005
* Mount the plates.
2-DIN 12.301270-00
Use this hole
Use this hole
Pioneer HD1BT
We advice to use the following positions.
Other positions are also possible.
Use position 1 marked with a cross.
Use position 14 & 16 marked with an arrow.
Measured from left to right.
Pioneer Avic D3
We advice to use the following positions.
Other positions are also possible.
Use position 1 marked with a cross.
Use position 8 & 10 marked with an arrow
Measured from left to right.
1 2
3 4

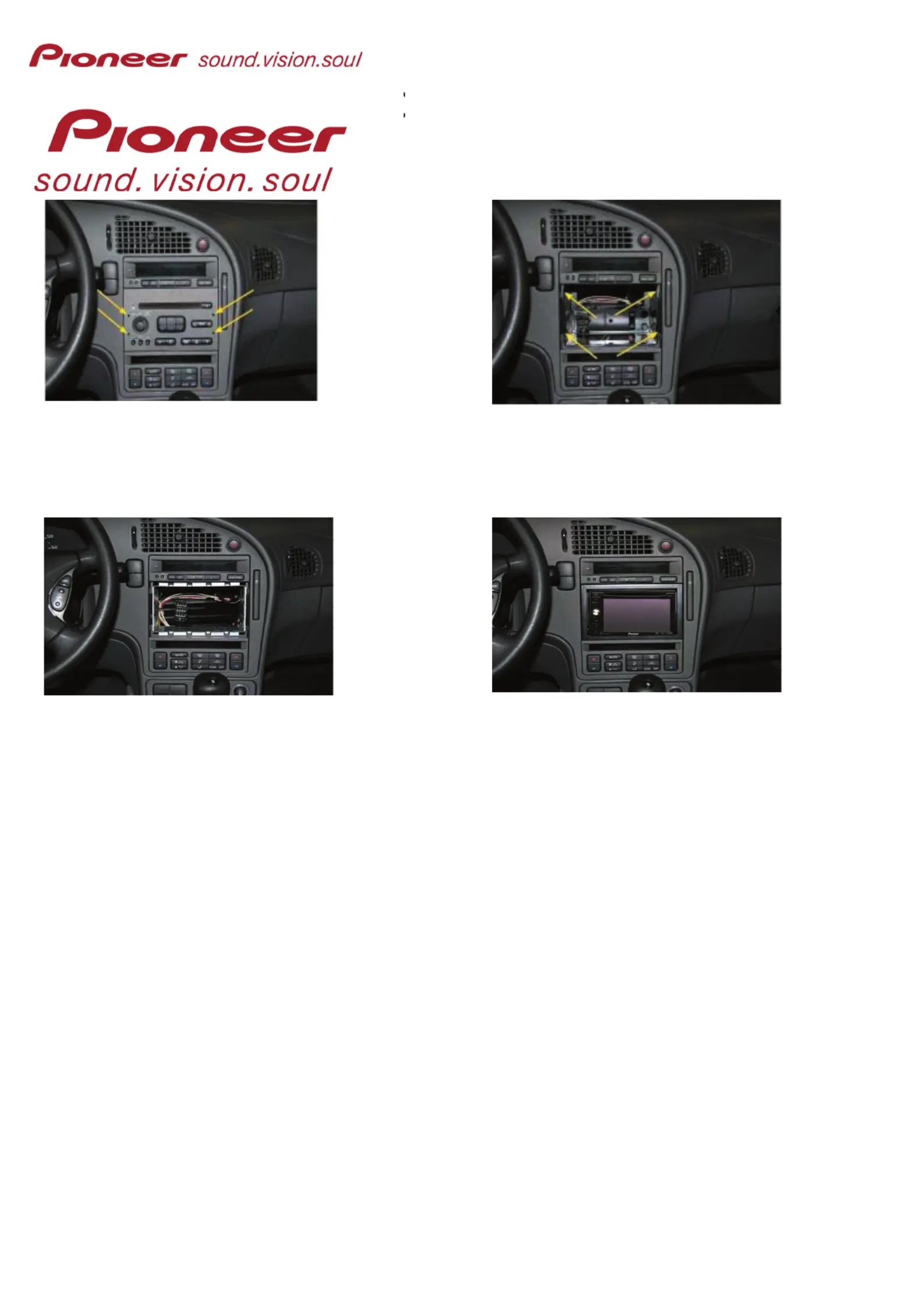

Remove radio using radio removal
keys.
Remove the original radio bracket. At
the location of the arrows. On this
picture it already has been removed.
Place the 2-Din metal bracket. Place the head unit and connect all
the wiring.
Connect all of the needed wiring harnesses and check all connections carefully
2-DIN 12.301270-00
