Page 1/3
2-DIN 12.301190-13
* Mount the plates.
Use this hole
Use this hole
Pioneer HD1BT
We advice to use the following positions.
Other positions are also possible.
Use position 1 marked with a cross.
Use position 14 & 16 marked with an arrow.
Measured from left to right.
Pioneer Avic D3
We advice to use the following positions.
Other positions are also possible.
Use position 1 marked with a cross.
Use position 12 & 14 marked with an arrow
Measured from left to right.
Installation manual for:
Mercedes SLK
W-171 2005-->
Installation kit includes the following items:
* 1X 2-ISO 100 mm. metal bracket
* 1X Replacementpanel
* 1X Radio trim
* 2X Mounting plates
* 2X Mounting spacers
* 4X Screws
* 2X Cushions
* 2X Radio keys
Connect all of the needed wiring harnesses and check the connections carefully.
2-DIN BKX-1321-042-DIN 12.301190-13

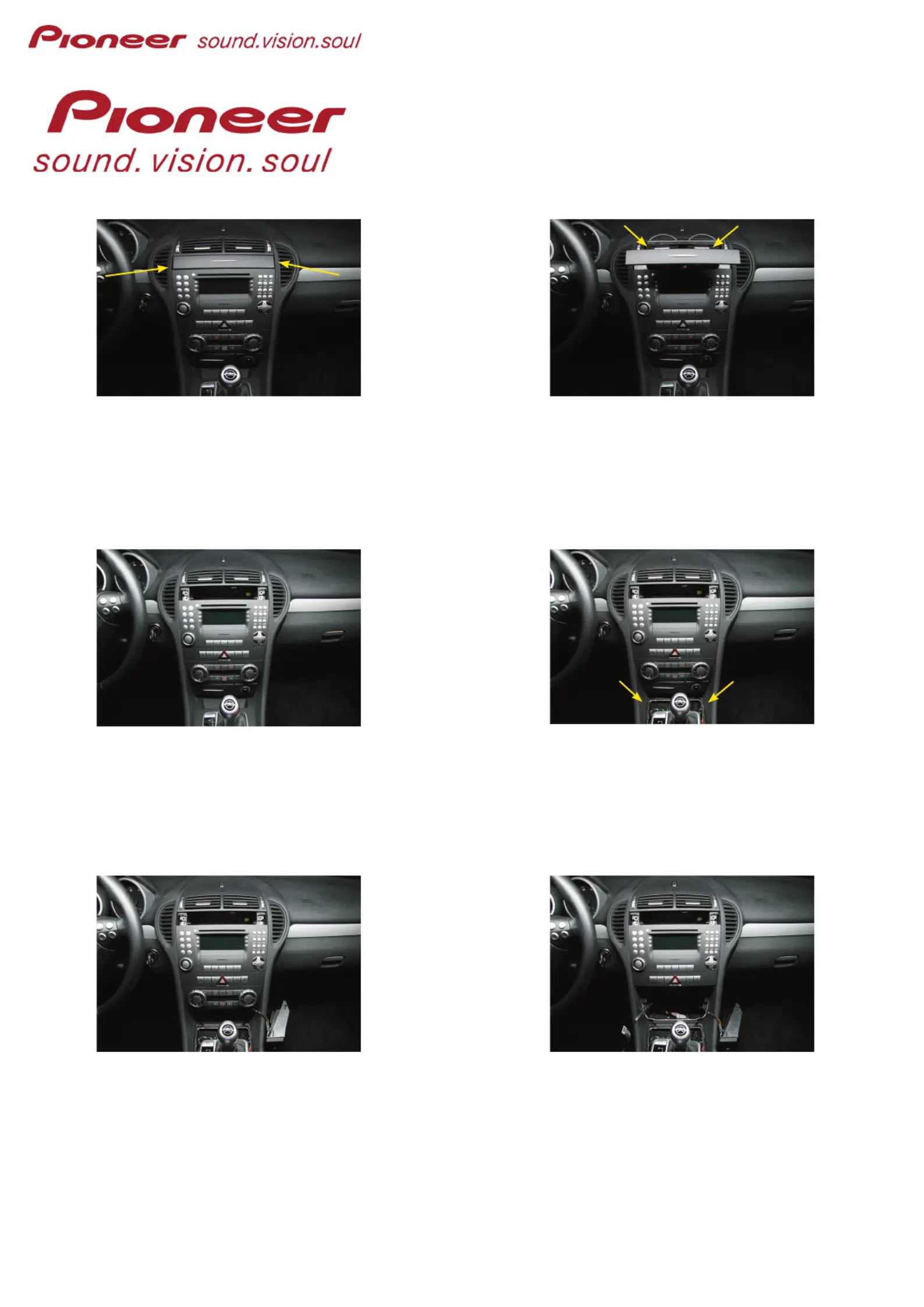

Open the cup holder.
Remove the cup holder.
Remove the 2 screws behind the cup
holder.
1 2
3
Remove the gear leveler surrounding.
4
Remove the ash tray.
56
Remove the climate control unit.
Connect all of the needed wiring harnesses and check the connections carefully.
Remove the unit with the warning light
signals.

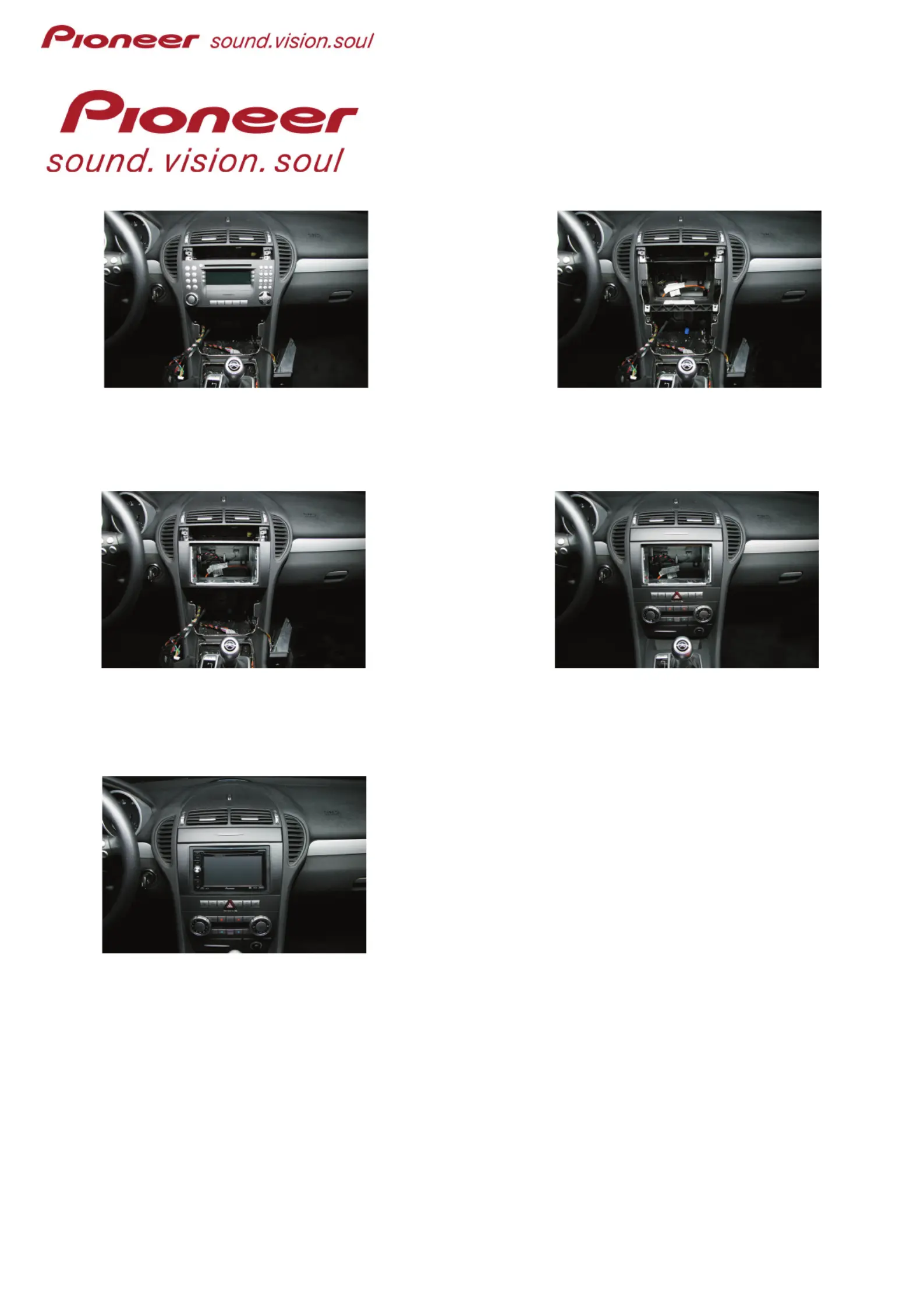

Remove the orginal radio.
7 8
2-Din 12.301190-13
Place the 2-din replacementpanel with
the metal bracket.
Place all components back in reverse
order.
11
10
Place the new headunit.
9
