2-DIN 12.301040-13
* Mount the plates.
Use this hole
Use this hole
Pioneer HD1BT
We advice to use the following positions.
Other positions are also possible.
Use position 1 marked with a cross.
Use position 14 & 16 marked with an arrow.
Measured from left to right.
Pioneer Avic D3
We advice to use the following positions.
Other positions are also possible.
Use position 1 marked with a cross.
Use position 10 & 12 marked with an arrow
Measured from left to right.
Installation kit includes the following items:
* 1X 2-ISO 100 mm. metal bracket
* 1X Radio trim
* 1X Replacement Panel
* 2X Mounting plates
* 2X Mounting spacers
* 2X Radio removal keys
* 4X Screws
* 2X Cushion
Installation manual for:

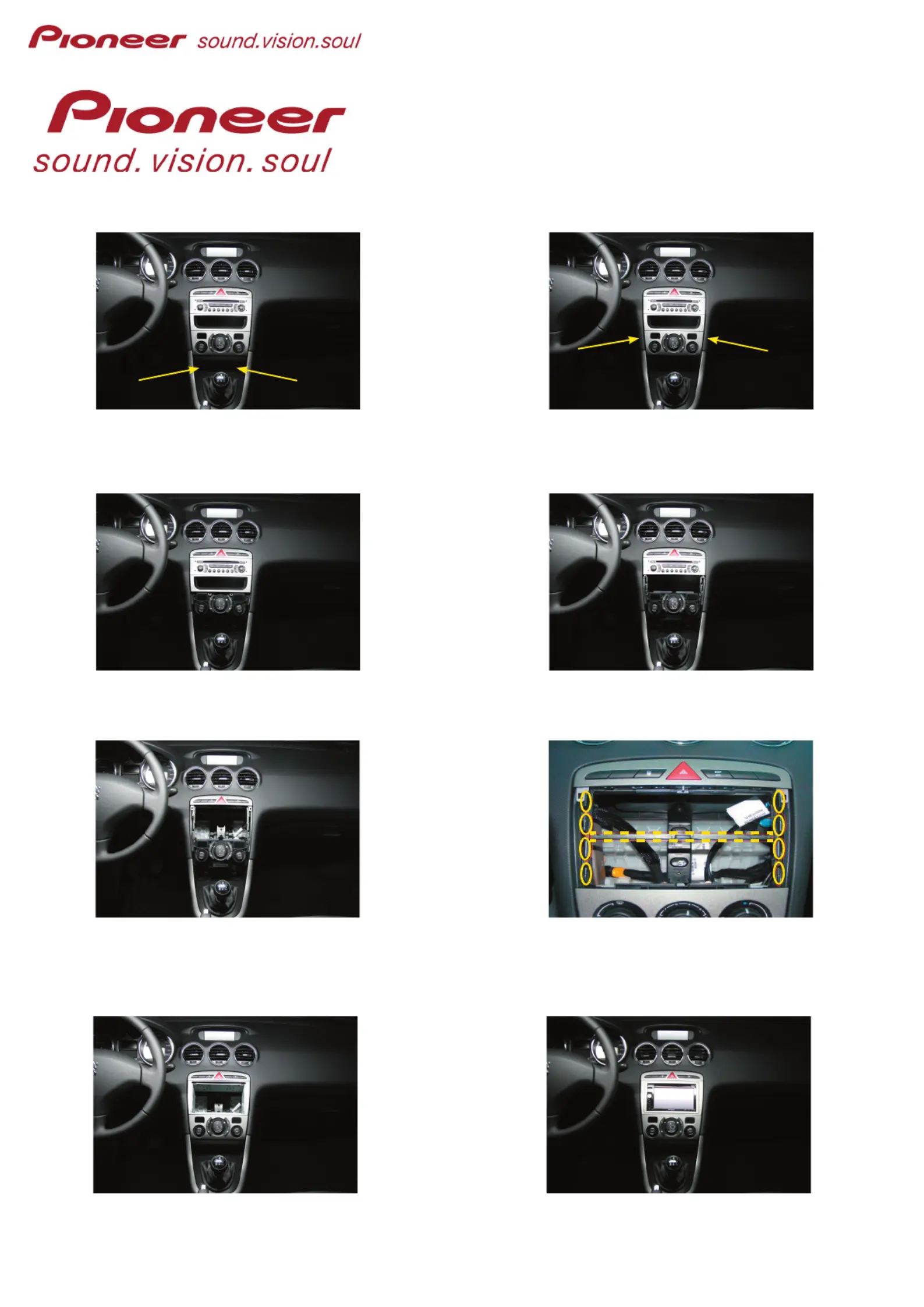

Peugeot 308 2007-->
Remove the ashtray and the rubber plate. Remove the panel around the climate
control.
Connect all of the needed wiring harnesses and check the connections carefully.
1 2
3
Remove the storage bin.
4
Remove the OEM radio by using the
original radio keys.
5
2-DIN BKX-1321-04 2-DIN 12.301040-13
Remove the plastic edges at the side
and the plastic trim in the midle.
6
Place the replacement panel and the
metal bracket.
Place the original panels back in reverse
order.
7
Place the new head unit and the radio
trim.
8
