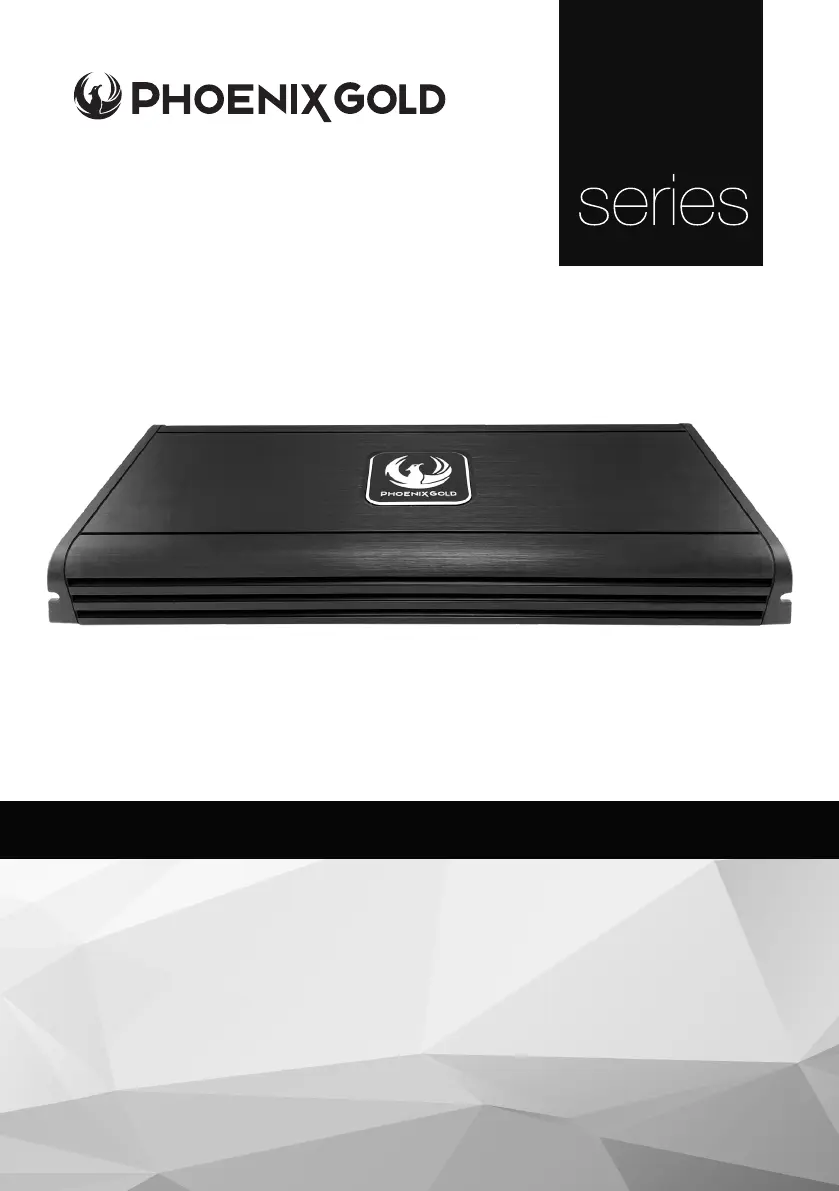

POWERFUL AND COMPACT, CLASS D AMPLIFIERS
Model: ZR6004R / ZR10001 / ZR20001 / ZR12005
• - powers on the amp when audio signal is suppliedHigh Level Auto-Turn On
• - compatible with aftermarket/original source unitsOEM Connection Ready
• - control bass/gain with included ZRBC Remote Ready
• Fanless Design - regulates temperature internally for quiet operation
• - versatile connectivity to suit any vehicleHigh & Low Level Inputs
• - enables maximum current supplyHeavy Duty Connector Block
• - protection against thermal damage, 4-Way Protected Circuit
reversed power, speaker polarity and low voltage
SPECIFICATIONS
All specications subject to change without notice.
ZR
© 2023 Phoenix Gold | www.phoenixgold.com
ZR6004R / ZR10001 / ZR12005 / ZR20001 - ZR-Series Ampliers
Specications: ZR6004R ZR10001 ZR12005 ZR20001
Class Class D Class D Class D Class D
Channels 4 1 5 1
Frequency Response 20Hz – 25kHz 20Hz – 400Hz CH 1-4: 10Hz – 25kHz
CH 5: 10Hz – 500Hz 20Hz – 400Hz
RMS Power Rating (1Ω): N/A N/A 1 x 2000W1 x 1000A
RMS Power Rating (2Ω): 4 x 175W 1 x 670W 4 x 175W + 1 x 500W 1 x 1300W
RMS Power Rating (4Ω): 4 x 105W
2 x 350W Bridged 1 x 385W 4 x 100W + 1 x 275W 1 x 650W
Signal to Noise Ratio (SNR)
(Full Power) -87dB -80dB F/R: - 87dB
Sub: -92dB -82dB
Total Harmonic Distortion
(THD) <1% <1% <1% <1%
Low Pass Filter (LPF) 40Hz – 6kHz (12dB/
Oct) 50 – 250Hz (24dB/Oct) 50Hz – 5kHz
(12dB/Oct)
50Hz – 250Hz (24dB/
Oct)
High Pass Filter (HPF) 40Hz – 6kHz (12dB/
Oct) N/A 50Hz – 5kHz
(12dB/Oct) N/A
Subsonic N/A 10Hz – 55Hz (24dB/
Oct)
10Hz – 55Hz
(24dB/Oct)
10Hz – 55Hz (24dB/
Oct)
Bass Boost @ 45Hz 0 – +18dB 0 – +18dB 0 – +15dB 0 – +18dB
Crosstalk -55dB N/A -55dB N/A
Input Sensitivity 0.25V – 9V 0.25V – 10V 0.25V – 10V 0.4V – 9.2V
Fuses 2 x 30A 3 x 35A 3 x 40A N/A
Remote Yes (Included) Yes (Included) Yes (Included) Yes (Included)
High-level Input Via RCA Yes Yes Yes Yes
Auto Turn-on Yes Yes Yes Yes
Phase Control N/A 0° - 180° N/A 0° - 180°
Operating Voltage 9V – 16V 9V – 16V 9V – 16V 9V – 16V
Idle Current 0.99A 0.9A 1.4A 1.2A
Current Draw (Max) 61A 97A 108A 195A
Total Efciency (4Ω) 88% 86% 84% 88%
Power Terminal 20mm² 20mm² 20mm² 50mm²
Speaker Terminal 4mm² 4mm² 4mm² 20mm²
Dimensions (LxWxH) 254 x 160 x 48.3mm 244 x 160 x 48.3mm 323 x 160 x 48.3mm 384 x 160 x 48.3mm
Weight 1.75 kg 1.84 kg 2.42 kg 3.20 kg
© 2023 Phoenix Gold | www.phoenixgold.com
ZR6004R / ZR10001 / ZR12005 / ZR20001 - ZR-Series Ampliers
Installation Warnings
1. Ensure the +12V lead is disconnected from the battery before you
connect any new equipment
2. Ensure that the amplier mounting location and holes will not interfere
with the petrol tank, brake lines or electrical wiring.
3. Ensure the amplier is securely fastened to the vehicle to prevent the
amplier from moving and causing damage in the event of an
accident.
4. Ensure all wiring is protected from sharp objects and pinching or
crushing, which could damage the audio system.
5. Ensure the mounting location has sufcient air ow around the
amplier. If the amplier is mounted in an enclosed space, a 3” fan
with ducting should be used to assist with cooling.
6. Ensure the minimum recommended gauge wire/cable or larger for
all amplier connections.
7. Appropriate mounting is essential for the prolonged life expectancy of
any amplier. Select a location that protects from moisture. Keep in
mind that an amplier should never be mounted upside down. Up
side-down mounting will compromise heat dissipation through the heat
sink and could engage the thermal protection circuit.
Disclaimer
Ensure your safety and the well-being of those around you by following these essential guidelines:
• Keep all product materials and packaging away from children, pets, or anyone at risk of suffocation.
• Exposure to noise levels above 85 dB can cause permanent hearing damage.
• Extreme sound frequencies reduce perception abilities that are essential in road trafc conditions; do not let loud
volumes distract from being mindful behind the wheel.
• Phoenix Gold takes no responsibility for any physical harm or damage caused by improper use of their products.
• Ensure that all metals and raw materials are disposed of in accordance with local regulations and environmental
Warranty
Phoenix Gold products come with a limited warranty and are covered by our regional distribution partners and their
terms and conditions. You can nd out more information by contacting your local retailer or distributor.
Product Specifications
| Brand: | Phoenix Gold |
| Category: | Receiver |
| Model: | ZR12005 |
