WiMi5200T/R
Setup-FCC
November, 2019

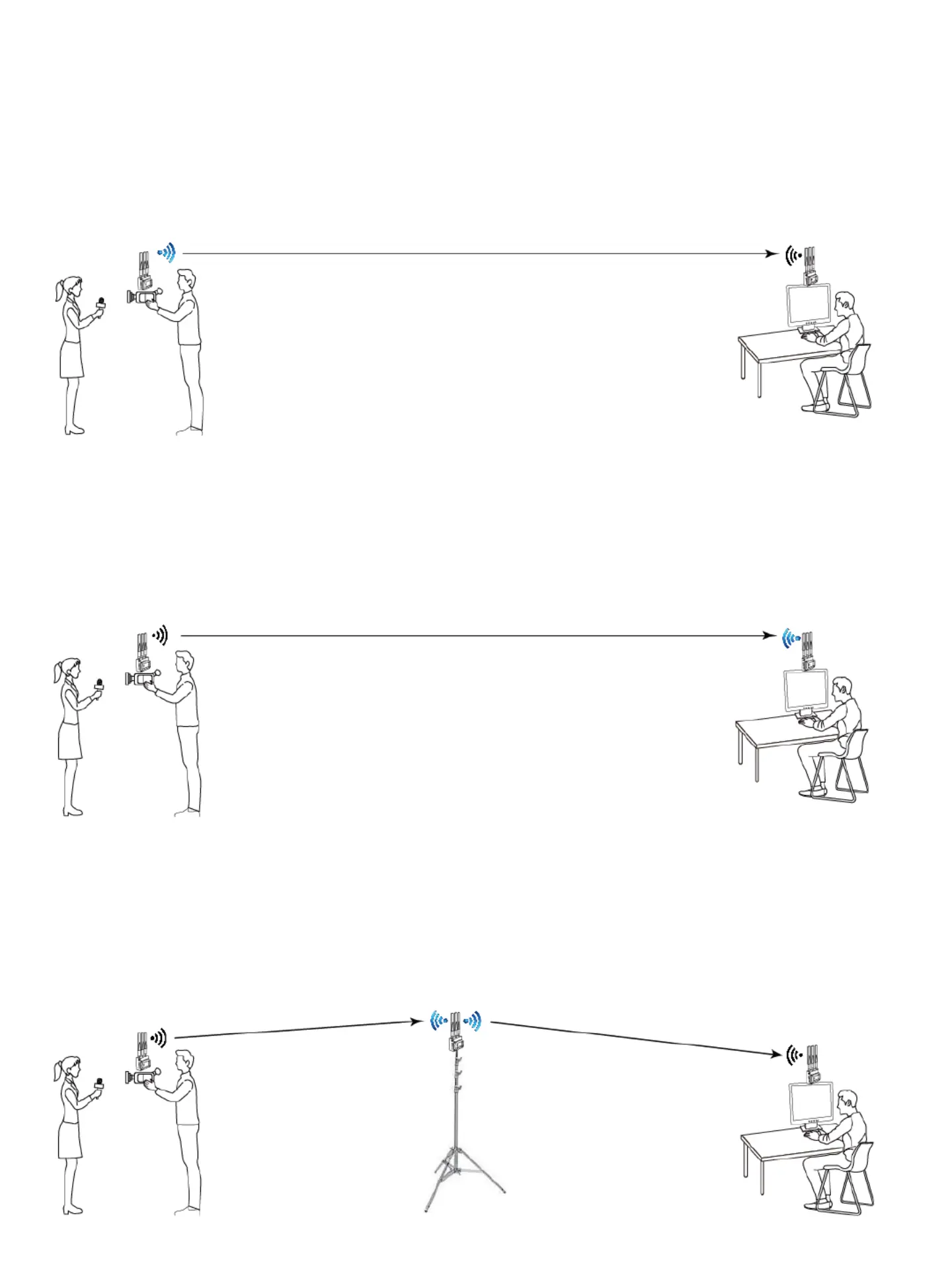

WiMi5200 Operation Modes
TX-AP mode: TX works as an AP (Typical Operation)
RX-AP mode: RX works as an AP
WiMi1000 Repeater Bridge mode: Both TX & RX work as a Station
WiMi5200T TX
(Repeater Bridge mode)
WiMi5200R RX
(Repeater Bridge mode)
WiMi1000
Repeater
Max. 600m (5775MHz)
@ LOS Max. 600m (5775MHz)
@ LOS
WiMi5200T TX
(RX-AP mode)
WiMi5200R RX
(RX-AP mode)
Max. 600m (5775MHz)
@ LOS
WiMi5200T TX
(TX-AP mode)
WiMi5200R RX
(TX-AP mode)
Max. 600m (5775MHz)
@ LOS
DIP Switch Configuration
WiMi5200T(Transmitter, TX)
WiMi5200R(Receiver, RX)
RX- AP
Mode
WiMi1000
Repeater
Bridge
Mode
TX- AP
Mode
WiMi1000
Repeater
Bridge
Mode
RX- AP
Mode
WiMi1000
Repeater
Bridge
Mode
TX- AP
Mode
WiMi1000
Repeater
Bridge
Mode
WiFi
Ch.
ENC.
Rate
4 bits: Selection of a specific frequency in TX-AP or RX-AP Mode
Selection of SSID in WiMi1000 Repeater Bridge Mode
2 bits: Selection of Encoding Bit Rate
ENC.
Rate
ENC.
Rate ` ENC.
Rate
ENC.
Rate
12 Mbps 15 Mbps 20 Mbps Controlled by Web
2 bits: Selection of Operation Mode
ENC.
Rate
ENC.
Rate
ENC.
Rate
ENC.
Rate
Encoding
Rate
Operation
Mode
2 bits: Not Used
WiFi
Ch.
SYS- ID 2 bits: Selectin of Receiver’s ID (Receiver-# in 1:3 multicast mode)
2 bits: Selection of Operation Mode
SYS- ID
Receiver-1 Receiver-2 Receiver-3 Receiver-4
SYS-ID
In 1:3
Config.
Operation
Mode
SYS- SYS- SYS- ID ID ID
SYS- SYS- SYS- SYS- ID ID ID ID
4 bits: Selection of a specific frequency in TX-AP or RX-AP Mode
Selection of SSID in WiMi1000 Repeater Bridge Mode
2 bits: Not Used
