QUART
Quick guide
Thank you for choosing QUART
for your Eurorack System.
NANO Modules - València 2020 ©
Powering up
Turn off the power of your modular synthesizer.
Double check the power cord polarity. If you plug the module backwards you might
damage its electronic circuits.
If you flip over your QUART, you will find the “RED” mark at the PCB power connector,
which must match the colored line on the ribbon cable.
Once you have checked all the connections, you can turn on your modular system.
If you notice any anomalies, turn your system off right away and check again your
connections.
1.
2.
3.
4.
REDRED
QUART
NANO Modules - València 2020 ©
QUART is a Quadruple Attack-Decay Envelope & Low Frequency Oscillator,
which means it has 4 independent functions that can work as Low Frequency
Oscillators or Attack-Decay Envelopes depending on whether the Trigger Inputs are
connected or not.
An describes how a sound changes over time. Synthesizers use Envelope
envelopes to create shapes designed for making musical sounds. You can adjust the
envelope’s controls to tell it what kind of shape to make. It normally relates to the
amplitude (volume), but it may also involve elements such as filters (frequencies) or
pitch.
QUART is an AD Envelope (Attack & Decay), meaning that it consists of two phases,
Attack & Decay (also called Rise and Fall). When the AD is triggered it starts a rising
phase until it reaches its maximum level (Rise) and then it decreases to its minimum
level (Fall), but unlike an AR it has no sustain segment.
The output of an AD generator lasts for a fixed amount of time, regardless of
wether or not the key that triggered it is still being held down.
QUART uses an for the envelope signal, found on many classic Exponential Shape
envelope generators, which tend to have a more plucked character. This is best
used with linear VCAs (such as our ALT Quad VCA).
LFOs make a repeating change to some aspect of the sound. Although the LFO is a
type of oscillator, we can't hear its output. Instead, the output is used as a control
signal for changing some parameter of a synth or an effect.
QUART
Description
time

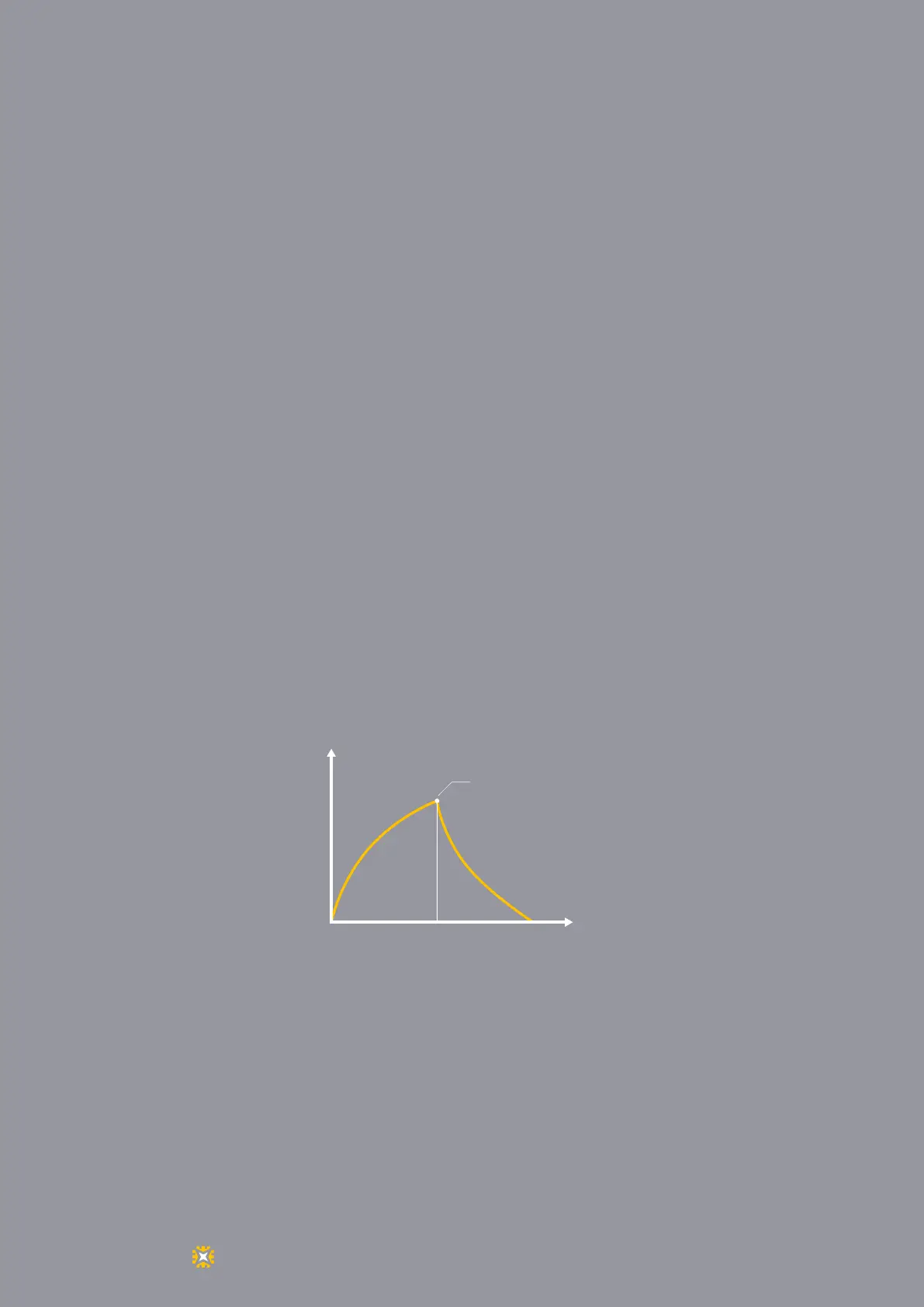

EXPONENTIAL AD ENVELOPE
voltage
rise fall
max. level
Fig.1 Exponential AD Envelope Signal Shape

Product Specifications

Brand: NANO Modules
Category: Not categorized
Model: QUART
