Mount-It! MI-7170 Manual

Read below đź“– the manual in Italian for Mount-It! MI-7170 (7 pages) in the Not categorized category. This guide has been helpful for 11 people and has been rated 4.5 stars on average by 2 users

Page 1/7

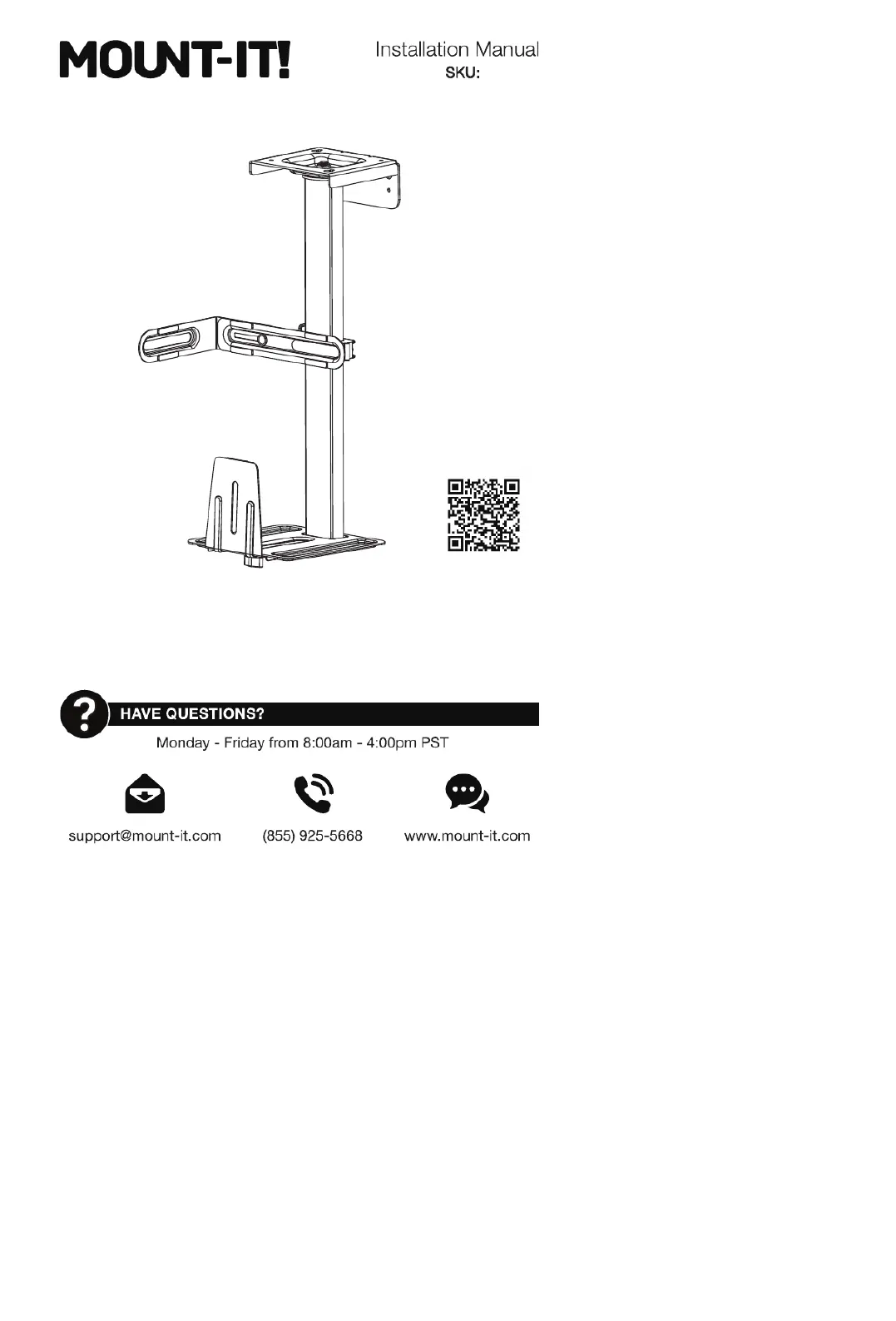

ROTATING HEAVY-DUTY
UNDER DESK / WALL CPU MOUNT
MI-7170
Please scan this QR code
to visit the product page.
Thank you for choosing Mount-It
2
Mount-It!
Mount-It!
Mount and Accessories
4
• Attach the Base Plate (#C) to the end of the Mount Body (#A) in the orientation shown using Screws
(#H), Rectangular Washer (#F) and Base Place (#C) in that order.
Attach the Base Plate
Step 2
Step 3
• Slide the Horizontal Arm (#B) onto the Mount Body (#A) in the orientation shown so that the adjustment
bolts face the same direction as the flap on the top of the Mount Body. Slide the Arm halfway up the
mount and tighten the two bolts down in the magnification bubble using Hex Wrench (#L).
Attach the Horizontal Arm
Step 1

Product Specifications

Brand: Mount-It!
Category: Not categorized
Model: MI-7170
