WARNING: This installation manual is intended to provide guidance on how
to install the TV mount and the TV on a suitable wall. Please contact a
qualified professional if you are unsure of the steps described in the manual
or have doubts about the safety of the installation. Improper installation
may cause damage or serious injury. We cannot be held liable for damage
or injury caused by improper mounting, incorrect assembly, inappropriate
use or for use cases not explicitly specified in this document.
MI-394
65โณ-110โณ 125kg/275lbs
600x400 800x600.
100x100 200x200 300x300. . .
400x200 400x400.
Full Motion TV Wall Mount With
Long Extension Dual Arms

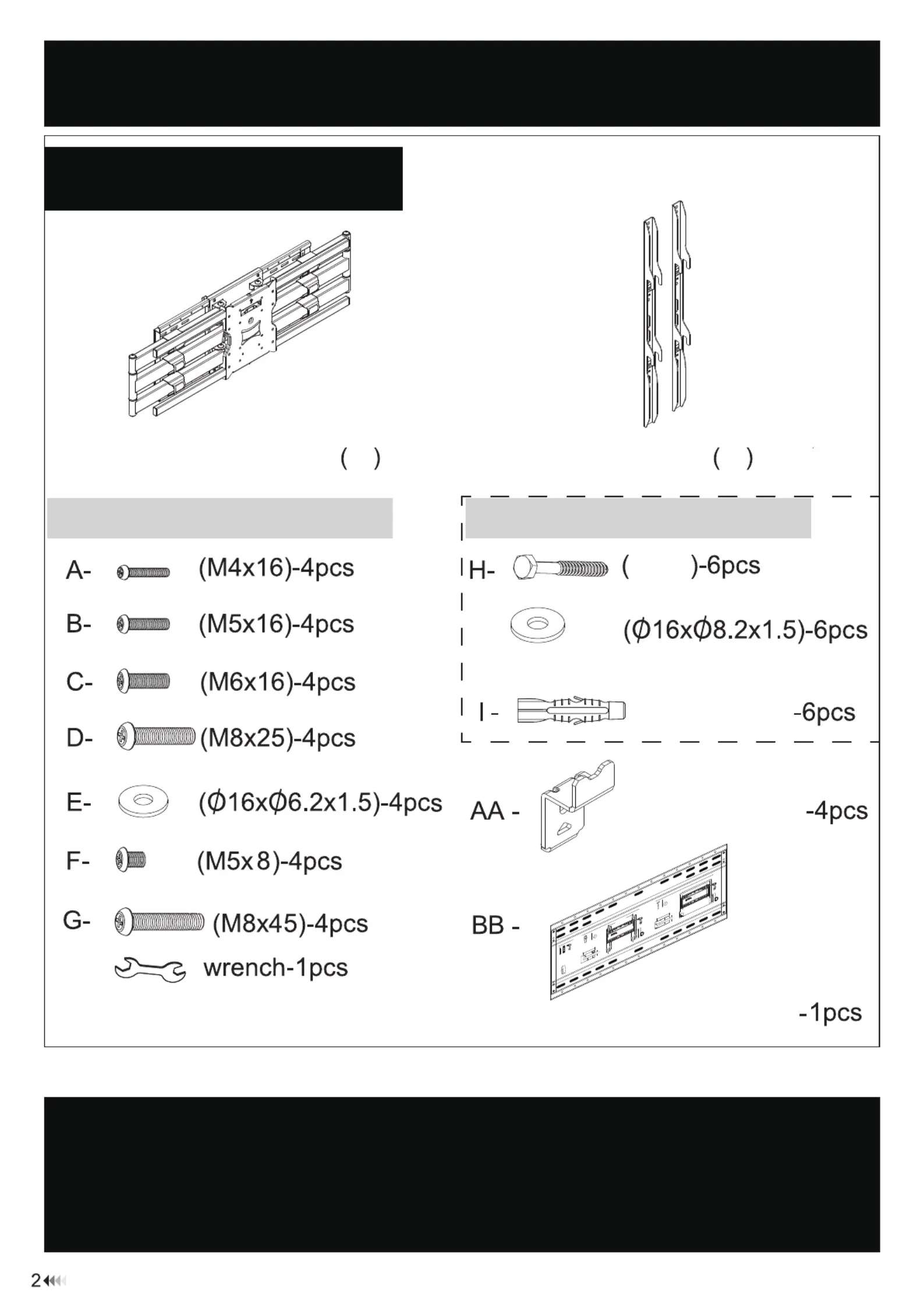

PACKAGE CONTENTS
CHOKING HAZARD. Package includes small parts.
Adult supervision is required.Not for children under 3 years.
Check carefully to make sure there are no missing or defective
parts. Some hardware provided may not be used. Use the
correct wall mounting and TV mounting hardware suitable for
your installation.
Main Mount Body TV brackets
X1 X1
Plastic Anchor
8x65
TV Mounting Hardware Wall Mounting Hardware
Safety Brackets
Wall Plate Template
Pencil Lev e l Drill
Required Tools
BEF
ORE D RIL LIN G HOL ES
Tap over eac to e h hole
minimiz t amount o duste he f
Mason ry Bi t
Hamm e r
8
"
3
Concrete wall
3/8โ
(10 mm)
2.56โ (65 mm)
Wood Bit
Stud F in de r
32
"
7
Wood stud wall
7/32โ
(5.5 mm)
2.56โ (65 mm)
TEMPLATE TEMPLATE
16โณ - 24โณ
(41cm -61c m)
INSTALLATION OPTION 1: Wood Stud Installation
CAUTION: DO NOT INSTALL ON DRY WALL ALONE. INSTALL MOUNT
ON WOOD STUDS. USER MUST VERIFY THE WALL CAN HOLD THE
WEIGHT OF THE TV AND THE TV MOUNT.
Secure the Wall Plate to the wall with 6 x Lag Bolts ( H) and 6 x Washers
(H). NOTE: Do not use Wall Anchor (I) for wood stud installation.
13mm
65mm
(2.6โณ)
5.5mm
7/32โณ
Pencil Level Drill
Required Tools
BEFORE DRILLING HOLES
Tape e each hole to ov r
minimize the amount of dust
Masonry Bit
Hammer
8
"
3
Concrete wall
3/8โ
(10 mm)
2.56โ (65 mm)
Wood Bit
Stud Finder
32
"
7
Wood stud wall
7/ โ32
(5.5 mm)
2.56โ (65 mm)
TEMPLATE TEMPLATE
16โณ - 2 4โณ
(41c m-61 cm)
(Suitable for 16โ or 24โ apart studs)
1). Use a stud finder to locate the dry wall studs and mark the desired installation locations
with a pencil.
2). Attach the Wall Plate Template (BB) to the wall at the desired installation location.
3). Ensure the Wall Plate Template (BB) horizontal alignment is verified with a bubble level and
mark 6 lag bolt installation locations on the stencil and the wall. Attempt to locate the lag bolt
locations on the middle of the studs.
4). Use a 7/32" (5.5mm) drill bit to drill a pilot hole on the wall with a depth of at least 2.6" (65mm).
Please note, failure to drill pilot holes may result in the lag bolt heads snapping during installation.
1a.
