Page 1/7

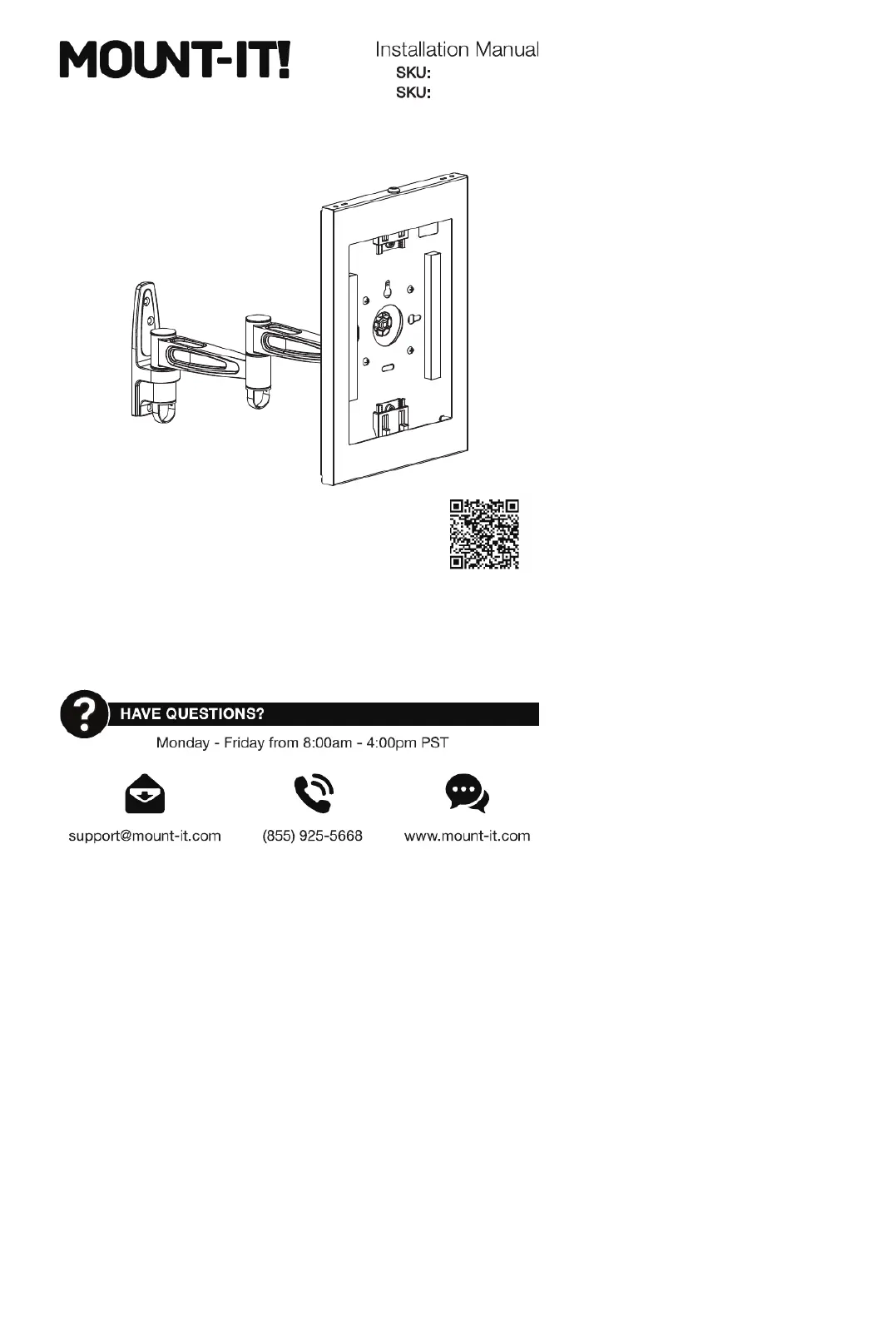

TABLET WALL MOUNT
WITH SWING ARM
MI-3774B_G10
MI-3774W_G10
Please scan this QR code
to visit the product page.
Thank you for choosing Mount-It
2
Mount-It!
Mount-It!
Mount and Accessories
15
33
4
Step 2
• With a stud nder locate the stud, hold the Mount Arm (#A) against the wall and centered on the stud at
the desired height. Using a bubble level to ensure straightness mark the center of the mounting holes with
a pencil.
• Use a 5/32” drill bit and drill on the marked locations to a depth of 2”. Secure the Mount Arm (#A) to the
wall using Lag Screws (#W-A). Tighten the screws until secure.
Wood Stud Mounting Option
Step 1
Step 1a
Concrete/Brick Mounting Option
Step 1b
• Using a bubble level to ensure straightness hold the Mount Arm (#A) to the desired location on the wall
and mark the center of the mounting holes with a pencil.
• Use a 3/8” drill bit and drill on the marked locations to a depth of 2.4”. Clear any dust and debris from
the holes and insert the Concrete Anchors (#W-B). Secure the Spring Arm (#A) to the wall using Lag
Screw (#W-A). Tighten the screws until secure.
Note: Do not drill mounting holes into mortar (such as between bricks or stones) only drill and
install into solid stone or concrete surfaces.
