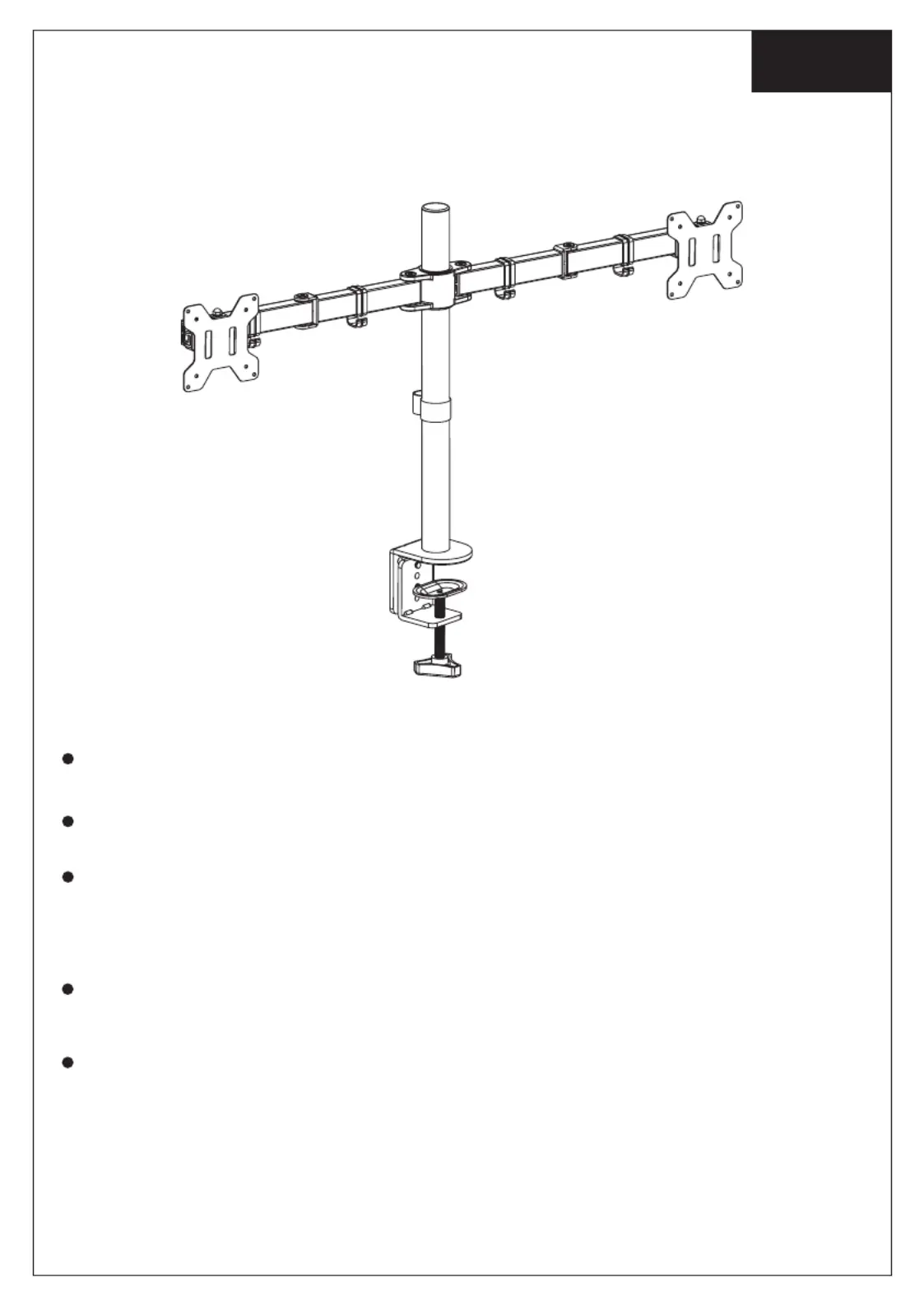

Installation Instruction

UNPACKING INSTRUCTIONS

IMPORTANT SAFETY INFORMATION

             

   

              

           

      

            

           



            

          

                

             

         

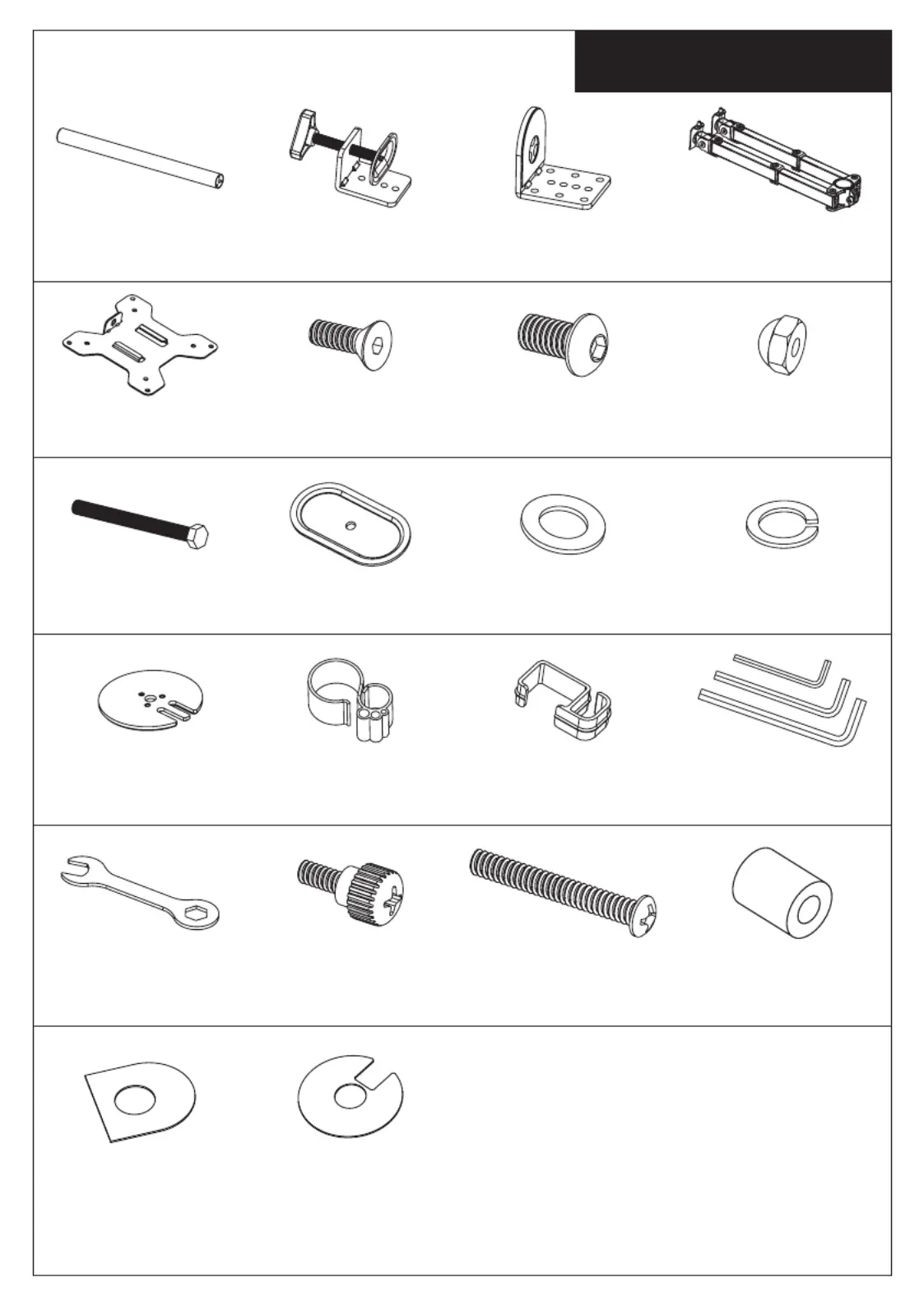

Supplied Parts List

 

         “ ” “ ”

      

       

 



     

 

 

   

 

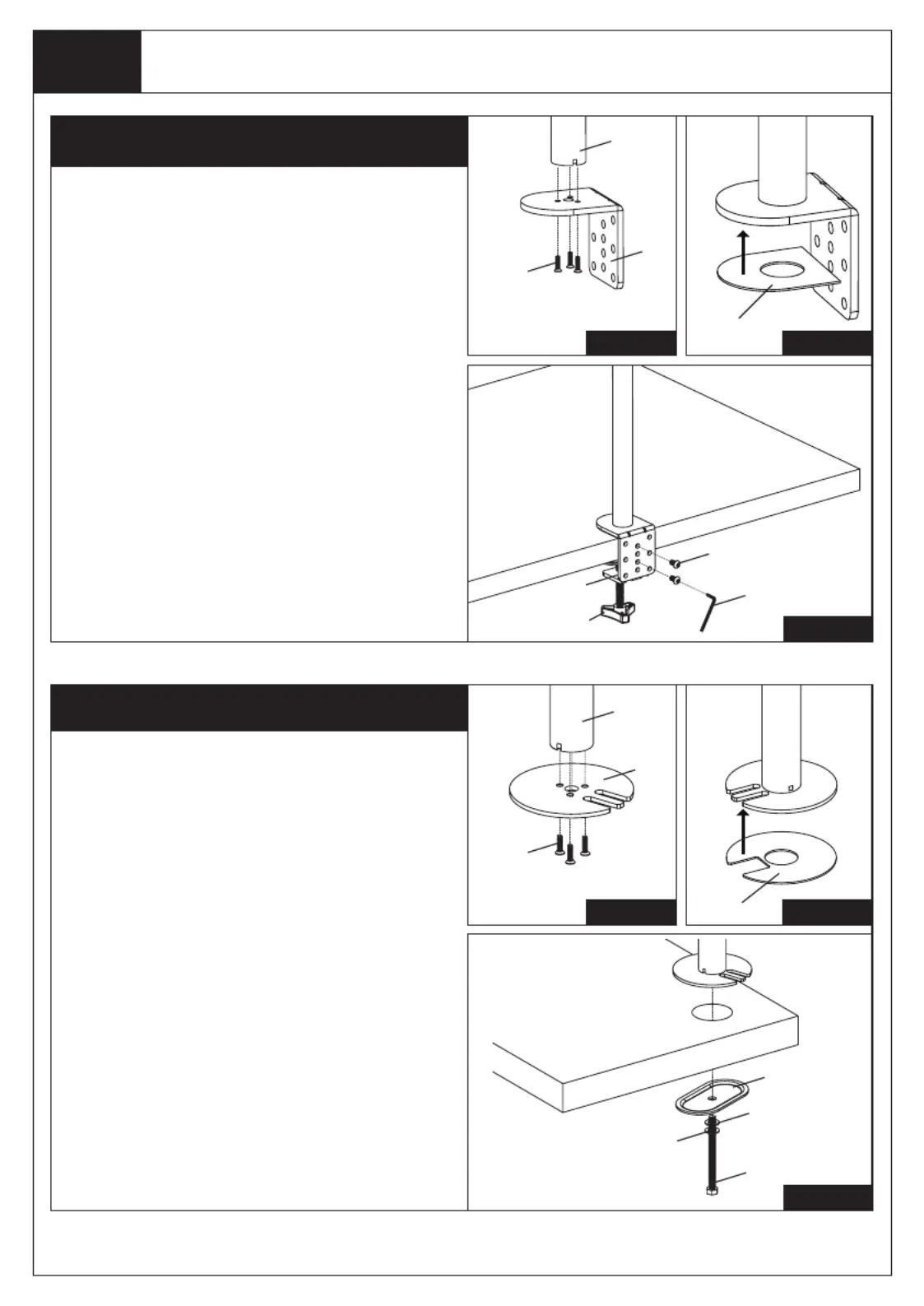

Step 1 Install the Pole to the Desktop

1.Install the “C” Clamp Brace(c) to the

Pole (a) using 3pcs M5x14 Bolts(f), and

tighten using the Allen Key(o),see

Figure 1.

2. Attach Soft Pad(t1) to the “C” Clamp

Brace(c), see Figure 2.

3. Install the “C” Clamp(b) to the pole

assembly according to the thickness of

the desktop. The thickness can be

changed to three positions. Connect it

using 2pcs M8x12 Bolts(g), and tighten

using the Allen Key(o). Tighten the

“C” Clamp to the desktop using the

plastic knob, see Figure 3. g

P c Klasti nob

Figure 2

Figure 1

Figure 3

Option A: Desk Clamp Install

Figure 4

Figure 6

Option B: Grommet Base Install

t2 Figure 5

If the existing grommet hole comes with a

plastic protector, remove it to ensure a flat

surface before installing the desk mount.

1.Install the Grommet Base Plate(m) to the

Pole(a) using 3pcs M5x14 Bolts(f), and

tighten using the Allen Key(o), see Figure 4.

2. Attach Soft Pad(t2) to the Grommet Base

Plate(m), see Figure 5.

3. Position the Pole(a) on the mounting

surface and secure using the Support Plate

(j), M10 Washer(k), Spring Washer(l) and

M10 Bolt(i). Fasten the M10 Bolt using

provided Wrench(p), see Figure 6.

Existing Grommet Hole Installation
