1
#34445 Optional Door/Rack
Xtra-Wide Presentation Cart
Assembly Instructions
2
P-1 Metal Door 1 EA
P-2 Hinge 2 EA
P-3 Lock 1 EA
P-4 Lock Ring 1 EA
P-5 Rack Rail 2 EA
Part Drawing Description Qty Part Drawing Description Qty
Hardware List
A M6X12mm Socket Screw 4 EA
B M4X10mm Csink Screw 12 EA
C Sheet Metal Screw 4 EA
D Lock Nut M6 4 EA
E Allen Wrench 1 EA
F Key 2 EA
G Wrench 1 EA
Identify and Separate all the Parts and Hardware.
Attach 2 Hinges (P-2) to the Metal Door (P-1) using 6
Countersink screws (B) as shown in illustration # 1.
Tighten screws using phillips screwdriver.
Insert 1 Lock (P-3) into the large hole as shown in
illustration # 1. Press Lock Ring (P-4) over protruding
end of Door Lock (P-3) as shown in illustration # 1.
Secure using 4 Screws (C).
1.)
2.)
R
EAD
T
HROUGH
I
NSTRUCTIONS
FROM
BEGINNING
TO
END
BEFORE
STARTING
TO
ASSEMBLE
UNIT
.
BP-2
P-2
Illustration # 1
P-1
P-3
C
P-4
3.)
(For Lock)
B
3

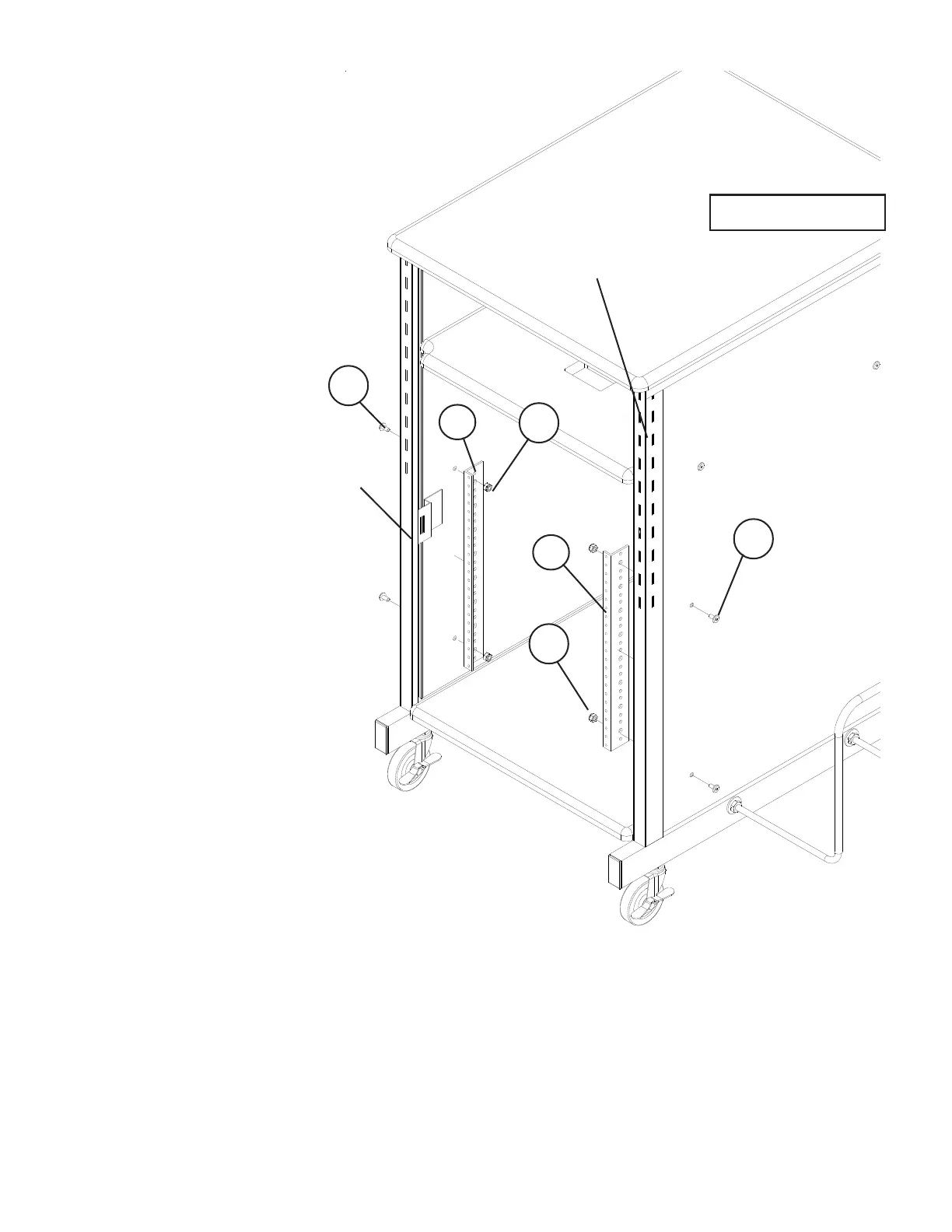

4.)Attach 2 Rack Rails (P-5) to the Left
and Right Leg Assembly of Xtra-
wide Presentation Cart #27517
using 4 screws (A) and 4 Locknuts
(D) as shown in illustration # 3.
A
D
D
A
Illustration # 2
P-5
P-5
#27517 Right Leg
#27517 Left Leg
Tighten screws using
Allen Wrench (E) and
Wrench (G).

Product Specifications

Brand: MooreCo
Category: Not categorized
Model: 34445
