The HiRes Video Company

www.mobotix.com

HiRes Video Innovations– Made in Germany

The German company MOBOTIX AG is known as the leading pioneer in network camera technology and its decentralized concept has made high-resolution video

systems cost-ecient.

MOBOTIX AG • D-67722 Langmeil • Tel: +49 6302 9816-103 • Fax: +49 6302 9816-190 • sales@mobotix.com

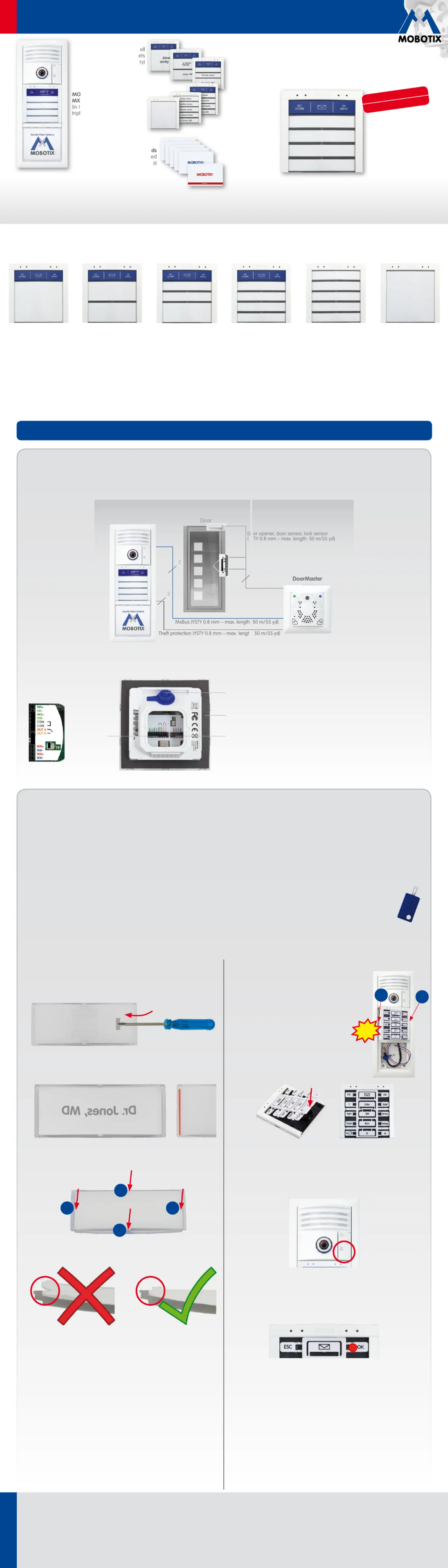

BellRFID Quick Install

Bell Button Module with RFID

Technology for up to Five Parties

Module for MOBOTIX IP Video Door Station, keyless entry and

mailbox control, can be combined with the dierent bell button sets

MX-Bell1-Button-F1/F2/F3/F4/05/XL1

Free-of-charge printing service on

www.mobotix.com> Support

• BellRFID base module with 1 admin and 5 user RFID cards

• Interchangeable bell button sets (not included)

• Integrated RFID technology for keyless entry

• Available colors: white, silver, dark gray, black, amber

• Usable with/without function button for mailbox control

• Up to 60hrs backup power supply using DoorMaster (accessory)

Standard Connection: IP Video Door Station with

BellRFID, InfoModule and DoorMaster

Installation and Initial Operation of the BellRFID

Available Bell Button Sets

(for all color variants)

The BellRFID module is installed in the exactly

same manner as the KeypadRFID module. Make

sure that you follow the steps for the dierent

hardware scenarios of the IP Video Door Station

(with/without DoorMaster) as described in the

T24 System Manual Part1

for the KeypadRFID

(see below).

Note: BellRFID and KeypadRFID can only be used

on one MxBus with a later software version of

the camera.

MOBOTIX BellRFID

MX-Bell1-Core

(in IP Video Door Station

triple frame white)

I/O Terminal

Sealing plug

Seal

MxBus terminal

Back view with cover removed

Door

MxBus (YSTY 0.8 mm – max. length: 50m/55yd)

Theft protection (YSTY 0.8 mm – max. length: 50m/55yd)

Door opener, door sensor, lock sensor

(YSTY 0.8 mm – max. length: 50m/55yd)

DoorMaster

RFID cards

for keyless entry included

(1 admin card, 5 user cards)

MX-Bell1-Core

31.578_EN_V2_09/2013

You can use the blue function button at the door station to listen to new mailbox

messages, record new announcements and activate/deactivate the mailbox.

Visitors can leave a message even without the function button. The remaining

mailbox features are easily controlled using the remote station of the door

station (i.e., MOBOTIX App).

Each BellRFID base module contains 6 RFID cards (1admin, 5user cards).

Each button set contains pre-cut name plates made of UV-resistant paper. If

required, you can replace the button sets later on– in the same base module!

In order to conﬁgure the system using BellRFID, the bell buttons are replaced

by a keypad insert, which is delivered with the base module.

The Jones

Family

MX-Bell1-Button-XL1

XL bell button

(no function button)

MX-Bell1-Button-F1

Large bell button

with function button

The Jones

Family

MX-Bell1-Button-F2

2 medium-size bell buttons

with function button

The Jones

Family

Dr. Jones, MD

MX-Bell1-Button-F4

4 small bell buttons

with function button

Cindy Jones

Thomas Jones

The Jones Family

Dr. Jones, MD

MX-Bell1-Button-F3

1 large, 2 small bell buttons

with function button

Cindy Jones

Thomas Jones

Dr. Jones, MD

MX-Bell1-Button-05

5 small bell buttons

(no function button)

Caroline Jones

Cindy Jones

Thomas Jones

The Jones Family

Dr. Jones, MD

Before starting the installation and initial operation, you should download part 1 and 2 of the

T24 System Manual

from the MOBOTIX website

( ).www.mobotix.com> Support> Manuals

If the installation of the IP Video Door Station with BellRFID is not followed by the initial operation right away, MOBOTIX recommends to remove the keypad

insert and to insert the button set before starting the installation. This way, the soft rubber surface of the BellRFID base module is well protected until the

module is brought into service (bell buttons are then replaced by the keypad insert). Note that the base module is weatherproof even without the bell

buttons.

When replacing the button set or exchanging name plates, you need to remove the module from the frame of the IP Video Door Station. Use the

blue MOBOTIX key for unlocking the module. Make sure that you are activating the mechanical theft protection with the red turning knob

in the door station frame only

after

you have ﬁnished the initial operation (see the

Section «Mechanical Anti-Theft Protection Lock»

in the

T24 System Manual Part1

In order to avoid having to remove the module and install it again, you should insert the proper name plates before starting the initial operation.

Use our free-of-charge printing service on in the section! Or use the supplied name plates made from sturdy specialty www.mobotix.com Support

paper and write the names using a UV-resistant marker.

Available Bell

Button Sets

(Accessory) The Jones

Family The Jones

Family

Dr. Jones, MD

Cindy Jones

Thomas Jone s

Dr. Jone s, MD

Cindy Jone s

Thomas Jone s

The Jones Family

Dr. Jones, MD

Cindy Jones

Thomas Jones

The Jones Family

Dr. Jones, MD

Caroline Jones

Cindy Jone s

Thomas Jone s

The Jones Family

Dr. Jones, MD

The Jones

Family

1. Insert the Name Plate(s)

Remove the silicon insert from the button. Recommendation: Take a suitable

tool without a sharp blade, cautiously insert it into the slot, gently press

inward and lift the tool as shown.

Insert the labeled or printed name plate as shown (the arrows at the side

are pointing upwards later on).

Place the silicon insert on top of the name plate, push it into the frame at

the top and at the bottom of the center, then push its sides into the frame.

Make sure that the silicon insert ﬁts ﬂush into the frame of the bell button

as shown to protect the name plate against humidity.

2. Insert the Module into the Door Station

You can use the BellRFID module as an alternative to the KeypadRFID (but

not yet side-by-side) in the frame of an IP Video Door Station. For installing

and wiring the module, follow the same steps as for the KeypadRFID.

Follow the description in the

Section «Installing the T24-KeypadRFID»

of the

T24 System Manual Part1

. Likewise, the other connection variants listed in

the

Section «Overview: Connection and Wiring Diagrams»

(e.g., connecting

an electrical door opener in a system without DoorMaster).

Finish the installation of the BellRFID module by following the steps listed

in the

Section «Finishing the Installation»

of the

T24 System Manual Part1

Similar to the KeypadRFID, the blue and the green status LEDs are ﬂashing

(power supply OK, ready for auto conﬁguration).

Installation Hint

When installing the module, insert it ﬁrst on the right-hand

side. Then use two ﬁngers and press on the left-hand

edge until the module clicks into the frame. Caution: Only

press at the edge, never at the center of the module!

Make sure that the cabling is not pinched and damaged

when installing the module.

3. Execute Auto Conﬁguration

Place the supplied keypad insert into the base module

(push it into the frame at the top, then push the bottom

into the module).

Start the auto conﬁguration of the IP Video Door Station by executing the

steps listed in the

Section «Step1: Performing the Auto Conﬁguration»

the

T24 System Manual Part2

(connect all devices, establish the power

supply and press the bell button of the camera module immediately after

the light and bell buttons are lighting up).

Once you have successfully completed the auto conﬁguration, the white

camera illumination is on and the BellRFID shows the following status:

• The blue and the green status LEDs are ﬂashing.

• The LED of the keypad behind the top right key ( ) is red.OK

Finish the auto conﬁguration by executing the steps listed in the

Section

«Functional Test Part1»

of the

T24 System Manual Part2

4. Enter Super PIN and Conﬁrm

The Super PIN is used to protect the system against misuse and also replaces

the factory default password (“ ”) as the new admin password. The meinsm

password is also used when adding the door station to the MOBOTIX App or

MxEasy, for example (user name is , new password is the admin <Super

PIN>). Select a Super PIN that has a minimum of 8 and a maximum of

16 digits (more and dierent digits make it more secure). For additional

information on the Super PIN, see the

T24 System Manual Part2

Dr.

3 4

Click!

Cindy Jones

Thomas Jones

The Jones Family

Dr. Jones, MD

IndoorOutdoor

For additional information on the other connection variants and for installing,

see the

T24 System Manual Part1

on .www.mobotix.com > Support> Manuals

IP Video Door Station

BellRFID

InfoModule

Cindy Jones

Thomas Jones

The Jones Family

Dr. Jones, MD

Use our free-of-charge on section!Printing Service www.mobotix.com, Support

Weatherproof (IP65)

–30 to +60°C/–22 to +140°F

The HiRes Video Company

www.mobotix.com

HiRes Video Innovations– Made in Germany

The German company MOBOTIX AG is known as the leading pioneer in network camera technology and its decentralized concept has made high-resolution video

systems cost-ecient.

MOBOTIX AG • D-67722 Langmeil • Tel: +49 6302 9816-103 • Fax: +49 6302 9816-190 • sales@mobotix.com

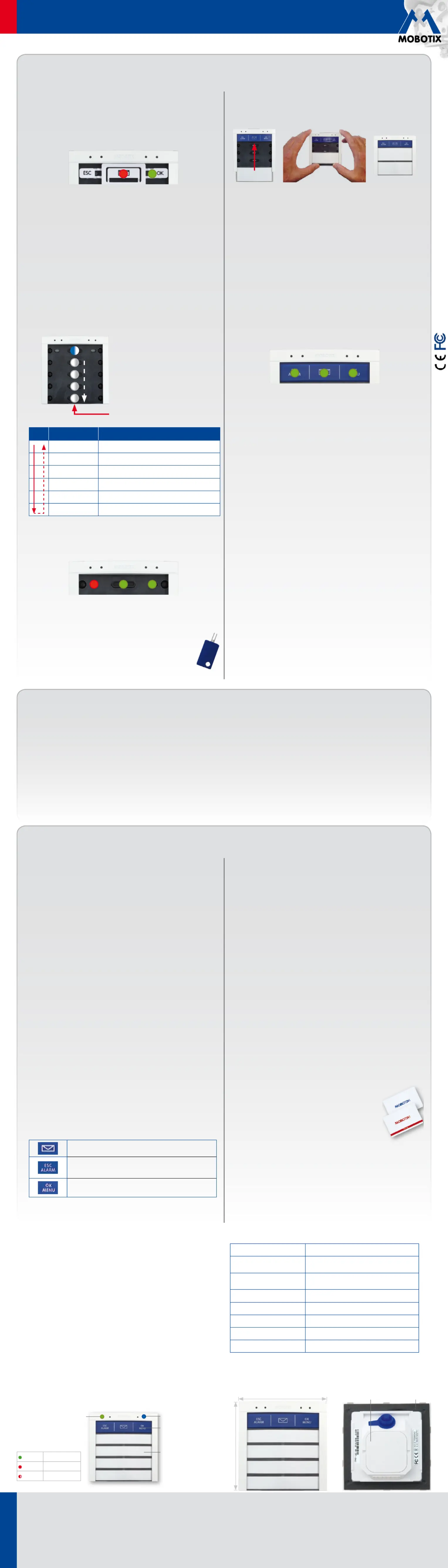

BellRFID Quick Install

 2013 • Declaration of Conformity: www.mobotix.com> Support> MX Media Library> Certiﬁcates

Notes

• Please follow the notes on installing and operating the device in the

T24 System Manual

( in the www.mobotix.com Support> Manuals

section). This document contains the wiring diagrams for the dierent

connection variants.

•

The BellRFID module is only to be used in the original frame of the MOBOTIX

IP Video Door Station.

• Before installing, make sure that the seal on the back of the BellRFID

module has been properly attached.

• When inserting the module into the frame, only press at the edge, never

at the center of the module.

•

Make sure the device is not operated outside of its operating temperature

range of –30 to +60°C/–22 to +140°F.

• BellRFID and KeypadRFID can only be used on one MxBus with a later

software version of the camera.

Dimensions

Interface MxBus

Inputs 2 galvanically separated inputs (AC/DC, self-

powered, up to 50V)

Outputs 1 isolated relay output (AC/DC, up to

50V/60W/2A)

Protection class IP65 (DIN EN 60529)

Operating temperature –30 to +60°C/–22 to +140°F (DIN EN 50155)

Power Supply MxBus

Power consumption Typical 1W

RFID cards: Type/Encryption MIFARE DESFire EV1 3K3DES/AES

Technical Speciﬁcations

LED Patterns

Cindy Jones

Thomas Jones

The Jones Family

Dr. Jones, MD

MOBOTIX BellRFID

Order no.: MX-Bell1-Core

Right LED (blue)

Blue function button

Left LED (green/

red, Status LED)

Bell buttons

Status LED

On Normal status

On Device error

Flashing Power failure

SealCover

Installation and Initial Operation of the BellRFID (contd.)

In Case of Loss/Theft: Delete All Cards!

In case a user card is lost, you need to delete this card in order to prevent unauthorized access to the door. The easiest method is to delete all cards

(user admin) and to train the remaining cards again later on.and

In order to delete all cards, hold the red admin card in front of the BellRFID module until the key lights up red. Then brieﬂy remove the admin OK/MENU

card and hold it in front of the module again (the key ﬂashes red).ESC/ALARM

Now press and hold any bell button until the three LEDs at the top start ﬂashing red. Conﬁrm the deletion by again pressing and holding the same bell

button. The LEDs light up in a sequence to conﬁrm that all cards have been deleted. The right status LED of the module brieﬂy lights up green.

If you want to train the cards again, execute the instructions of .steps7 and 8

Note: It is also possible to delete only speciﬁc user cards or a lost admin card. For additional information on how to do this, see the

T24 System Manual

Part2

Enter your personal Super PIN on the keypad insert, then press the key. OK

This key is now highlighted yellow.

Enter the Super PIN again, then conﬁrm by pressing the key. If the two OK

PINs are identical, the LEDs in the center are ﬂashing repeatedly in a sequence

from top to bottom. Next, the top right key ( ) lights up green and the OK

key at the center ( ) lights up red.Letter

Remove the keypad insert and continue with the next step.

Note

If you entered dierent Super PINs or more than 60 seconds passed between

entering the PIN and conﬁrming, the module emits a warning sound and

returns to the state after ﬁnishing the auto conﬁguration. In such a case,

you need to start again with step4.

5. Set the Bell Button Set to be Installed

Depending on the bell button set, you need to select one of the six possible

button layouts. To select a button layout, press any one of the button

contacts in the center. The module shows the current button layout by

ﬂashing the LEDs in a speciﬁc manner (see table below). The conﬁguration

starts with pattern ; pressing any button switches to the next pattern in a

ascending order. After the last pattern, the module returns to pattern .a

Pattern

Button Set Description

MX-Bell1-Button-F1

LED1 permanently blue, 2to 5 ﬂashing white

MX-Bell1-Button-F2

LED1 permanently blue, 2+3, 4+5 sequence white

MX-Bell1-Button-F3

LED1 permanently blue, 2, 3, 4+5 sequence white

MX-Bell1-Button-F4

LED1 permanently blue, 2, 3, 4, 5 sequence white

MX-Bell1-Button-05

LEDs1, 2, 3, 4, 5 sequence white

MX-Bell1-Button-XL1

LEDs1to 5 ﬂashing white simultaneously

Once you have found the proper pattern, keep any one of the buttons at

the center pressed until the LEDs are ﬂashing repeatedly in a sequence.

Next, the top center and right buttons ( and ) light up green and OK Letter

the button at the top left ( ) lights up red.ESC

The button contacts are now locked until the function and bell buttons have

been inserted and the admin card has been trained.

6. Insert the Function/Bell Buttons

In order to insert the function or bell buttons, you need to remove

the BellRFID module from the frame of the door station (if you have

not already done so). Use the blue MOBOTIX key for unlocking

the module.

Insert the function and bell buttons in the proper order by inserting the

elements from the bottom (e.g., the blue function button ﬁrst). In order to

avoid damaging the buttons, press the elements into the module using

two thumbs as shown.

Click the BellRFID module with the buttons into the IP Video Door Station

as described in step2.

7. Train the Admin Card

Now that you have entered the Super PIN and inserted the buttons, you

need to train the Admin card. This card is used as the “master key” for

authentication purposes and is required for training and deleting user cards,

for example. For every-day use, however (opening doors, mailbox features),

you only need the blue user cards. Note that you should always keep the

admin card together with the of the IP Video Door Station Product Pass

in a safe place.

Hold the admin card in front of the BellRFID module for 5seconds until

the sound stops. The LEDs light up in a sequence to conﬁrm that the card

has been trained.

All three LEDs at the top are now green to show that the initial operation

has been completed successfully. The button contacts are now unlocked.

Continue with step8 or ﬁnish the installation as described in the

T24 System

Manual Part2

8. Add User Cards (Any Time Later on)

This step is not part of the initial operation of the system and can be

performed at any time later on. You can skip this step if you do not intend

to use the features described here.

The blue user cards are used by the inhabitants to open the door without using

a key and to listen to mailbox messages directly at the IP Video Door Station.

If the blue function button at the top has not been installed, make sure that

you pay attention to the corresponding key position for the LED patterns

described in the following.

Hold the trained admin card in front of the BellRFID module. The OK/MENU

key at the top right position lights up red.

If you want to use the keyless entry features and listen to mailbox messages

at the door, press the bell button of the party to which you want to assign

the user card. The selected button lights up white. If you want to use this

card only for opening the door (i.e., for the nursing service) make sure that

you do press any button now.not

Hold the user card in front of the BellRFID module for 5seconds until the

module plays a sound. The LEDs light up in a sequence to conﬁrm that the

card has been trained.

If you want to train additional cards, repeat the steps listed in this section

for each card.

Test the trained cards by holding them in front of the BellRFID module one

by one. The electrical door opener should open the door with each card.

Press any one of these buttons

Pattern1 (MX-Bell1-Button-F1):

LED1 permanently blue (function button)

LEDs 2to 5 ﬂashing white 4 (bell buttons)

LED sequence

The Jones

Family

The Jones

Family

Dr. Jones, MD

The Jones

Family

*Only for cards with activated mailbox feature – see

T24 System Manual Part2, «Adding User Cards»

Operation: Buttons and Signaling

Ring the Bell for One Party

Brieﬂy press the bell button of the desired party. The LED of the button

brieﬂy lights up.

Leave a Message (BellRFID with Function Button)

• After pressing a bell button and announcement: Keep the blue letter

key pressed while leaving the message.

• Without having pressed a bell button: Brieﬂy press the blue letter key

and then the bell button of the party for which you want to leave the

message. As soon as the mailbox announcement stops, you can start

talking. Keep the blue letter key pressed the entire time.

Leave a Message (BellRFID without Function Button)

• After pressing a bell button and announcement: Keep the same bell

button pressed while leaving the message.

• Not possible.Without having pressed a bell button:

Open door with blue user card

Hold the blue user card in front of the BellRFID module. If the module

denies access (e.g., card has been deleted, is not trained), the red status

LED (above the key) lights up.ESC/ALARM

Upon Power Failure (Red LED Is Flashing)

Press and hold the key until the button illumination lights up. ESC/ALARM

You can now open the door with your user card during the next 10seconds.

This feature is only available if the IP Video Door Station is equipped with

a DoorMaster.

Play Back New Message*

If you are opening the door with a user card and the blue letter key is ﬂashing

(5seconds), there is at least one unﬂagged message in the corresponding

mailbox. You can now use one of the following functions:

Press the ﬂashing key to play back the message. Press again

to repeat the message.

Flag the message, i.e., the message cannot be played back

at the door, but only at a remote station (e.g., MOBOTIX App,

MxEasy).

Play back next message.

The mailbox closes automatically 15seconds after the last user action/

message or if you press the button.ESC/ALARM

Recording New Mailbox Messages*

You can either use one of the system's predeﬁned announcements or

record custom announcements. These announcements will be played back

if the mailbox is activated and the ringing has not been answered. A new

custom announcement always replaces the last announcement that had

been used. You can set the current announcement using a remote station

(e.g., MOBOTIX App, MxEasy).

Press your bell button and hold the blue user card in front of the module

(bell sound is played back, green LED (mailbox activated) or red LED (mailbox

deactivated) lights up). Press the bell button again and keep it pressed

as long as you record the announcement. The red status LED is ﬂashing

while recording.

Additional BellRFID Features (see T24 System Manual)

Activating/Deactivating the Mailbox*

Checking the Mailbox without Opening the Door*

Keep the blue letter key pressed until it starts ﬂashing, then hold the blue

user card in front of the module. The ﬁrst new message is played back.

Press the blue letter key to play back the messages again. To delete the

messages, keep the pressed until you hear a sound. If there ESC/ALARM

are no new messages (any more), the system will make a corresponding

announcement.

Deleting User/Admin Cards and Transponders

• Card held in front of the module

• All cards assigned to one bell button

• Lost admin card

• Speciﬁc user card or transponder using the assigned

transponder number

Changing the Super PIN

Changing the Bell Button Set

99 mm/3.9in

Cindy Jones

Thomas Jones

The Jones Family

Dr. Jones, MD

Cindy Jones

Thomas Jones

The Jones Family

Dr. Jones, MD

Product Specifications

Brand:	Mobotix
Category:	Not categorized
Model:	MX-Bell1-Button-F2

Do you need help?

If you need help with Mobotix MX-Bell1-Button-F2, ask a question below and other users will answer you

Your Name*

Your Email*

Write your question here

Not categorized Mobotix User Manuals

Mobotix MX-Bell1-Button-F2 Manual

13 October 2024

Mobotix MX-BELL1-BUTTON-F3 Manual

13 October 2024

Mobotix MX-Bell1-Button-F4 Manual

13 October 2024

Mobotix MX-BELL1-BUTTON-XL1 Manual

13 October 2024

Not categorized User Manuals

Latest Not categorized User Manuals

NightStick LGL-170A Manual

27 October 2024

Supermicro SuperServer ASG-2115S-NE332R Manual

27 October 2024

Phanteks Glacier R220C Manual

27 October 2024

Elac Protek PR-71S Manual

27 October 2024

NightStick LGL-180-IR Manual

27 October 2024

United Office IAN 54183 Manual

27 October 2024

United Office IAN 066078 Manual

27 October 2024

United Office IAN 331845 Manual

27 October 2024

United Office ULGD 350 A Manual

27 October 2024

United Office UAVS 300 A1 Manual

27 October 2024
