1
IMPORTANT: Read all instructions carefully before use
ABOUT YOUR SOLAR SECURITY LIGHT
During the day, the solar panel included with this MAXSA Solar Security Light converts sunlight
into electricity, recharging the pre-installed battery. Using this stored energy, the SMT LED lights
turn on automatically at night when motion is detected. This MAXSA Solar Security Light has
an adjustable TIME dial that allows light duration of up to 60 seconds. When the battery is fully
charged, this Solar Security Light can provide up to 200 thirty second cycles when the TIME dial
is set to the middle (30s) position.
The battery included in this unit is a sealed lead-acid 6V, 4Ah rechargeable battery and will need
to be replaced when the charging ability is decreased. The battery should last for approximately
3-5 years before it will need to be replaced
Part #44640
2www.maxsainnovations.com

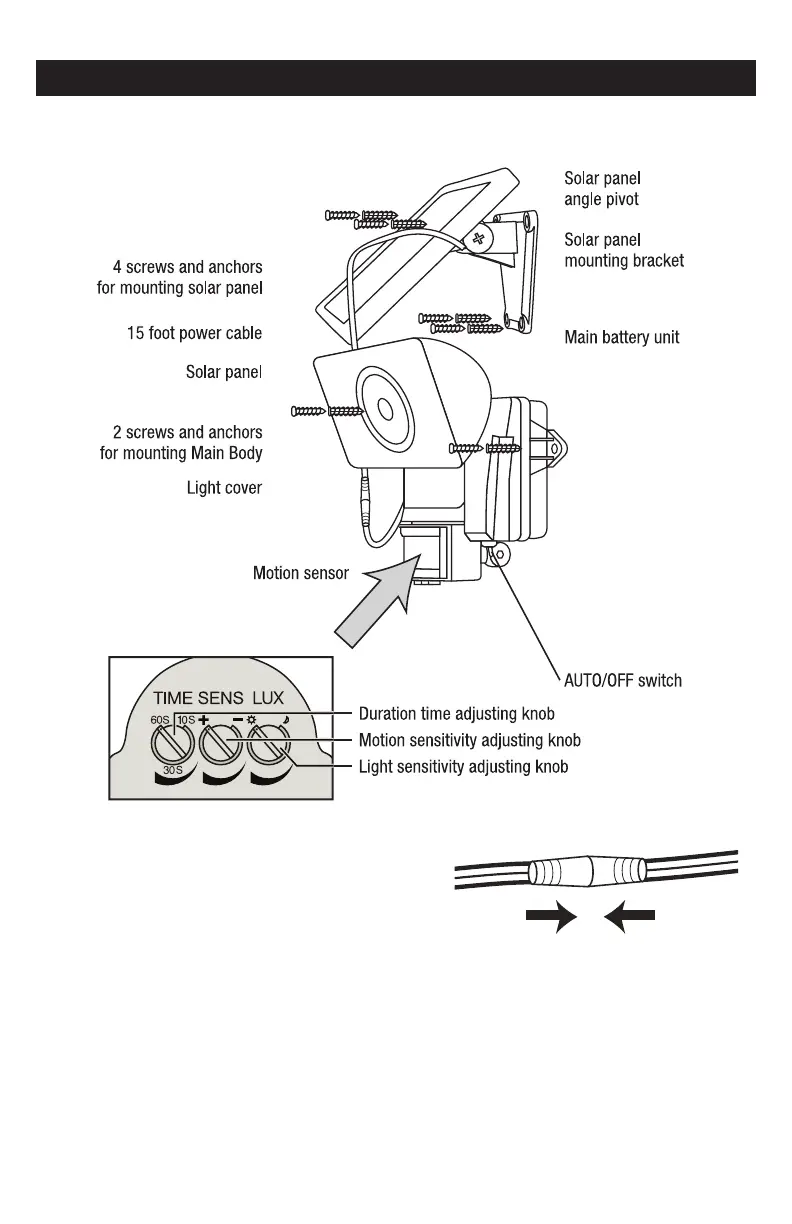

INCLUDED PARTS
Carefully remove and identify all the parts from their protective packaging and lay them out in
front of you.
Once you have identified all parts, connect the solar
panel to your Solar Security Light by plugging the
15 foot cord into the cord attached to the front of
the Solar Security Light. Turn and twist the cords
while pressing firmly together until they are attached
tightly.
Adjustment dials are located on the underside of the motion sensor. Move the motion sensor to
allow for easier access to the controls. Move sensor back into position upon completion.
3
www.maxsainnovations.com
CHOOSING A LOCATION FOR YOUR SOLAR SECURITY LIGHT
This Solar Security Light comes complete with a solar panel attached to a 15 foot power cord.
For optimum sun exposure and longer light output, place the solar panel in a position that
receives at least 6-8 hours of direct sunlight per day. Placing the solar panel in a shaded
location will not allow the battery to charge fully, reducing the number of hours the light will
operate per evening. Ensure that the security light is not placed near night time light sources
such as porch lighting or street lighting.
This Solar Security Light is ideal for areas where electricity is not available — including
driveways, carports, garages and entrance doors – for safety and security around your home.
When deciding where to mount the light, keep in mind that the motion sensor has a field of
vision of 180º (horizontal) at a distance of 40 feet when the surrounding temperature is 75F. The
outside temperature will impact the detection distance.
HOW TO INSTALL YOUR SOLAR SECURITY LIGHT
Mount the Security Light onto a solid surface, using the two (2) wood/sheet metal screws
supplied. You may mount the Security Light either vertically or horizontally.
Use the four wood/sheet metal screws supplied to mount the solar panel onto a solid surface.
You can adjust the angle of the solar panel by gently rotating the solar panel to a different
locking position. Remember to face the panel south for direct sunlight exposure.
TOOLS REQUIRED FOR INSTALL
Install simply with just a Phillips-head screwdriver!
